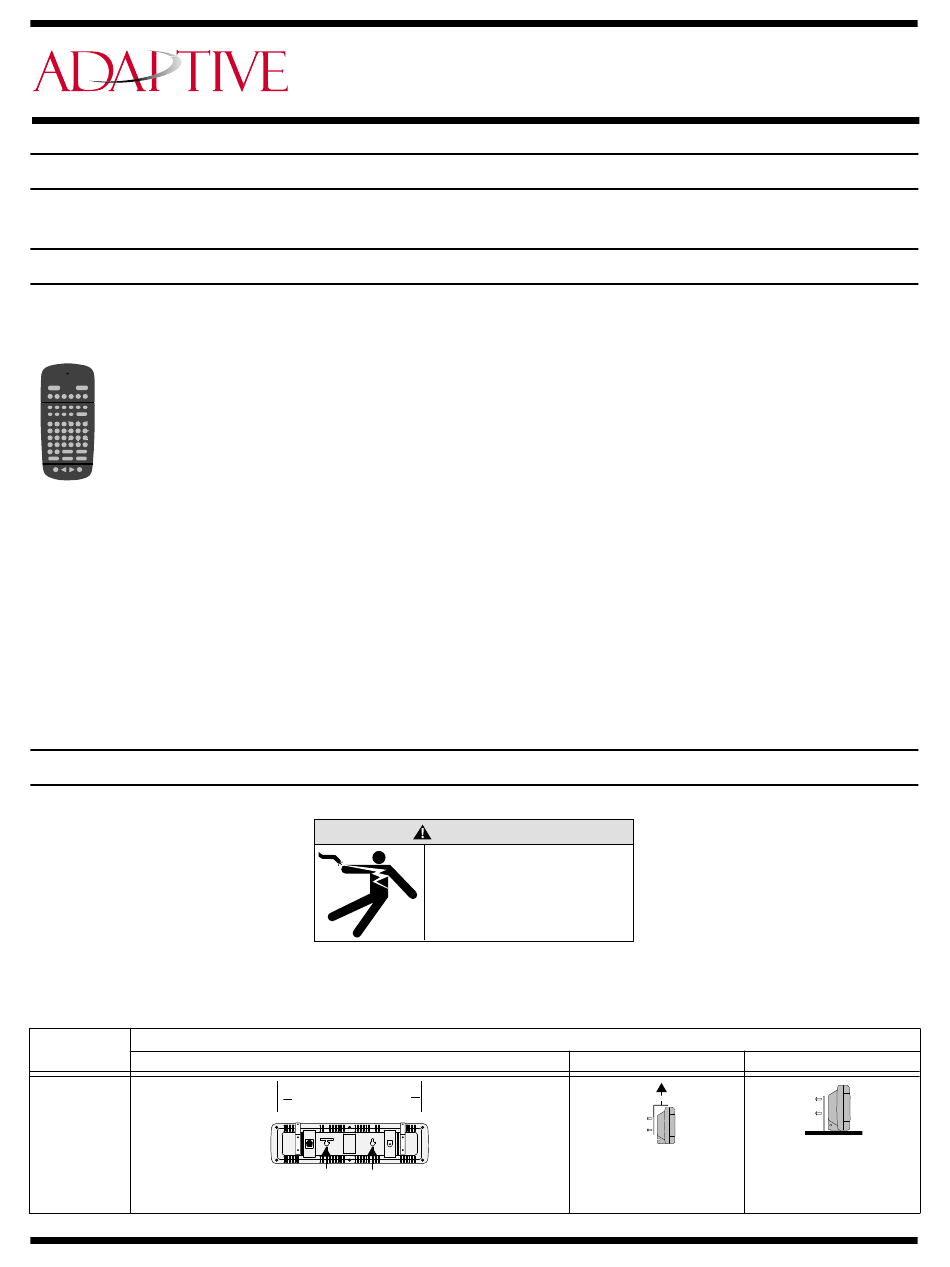

Adaptive ALPHA Series Installation Instructions

Introduction
These instructions show how to change the serial address and how to mount the following ALPHA series signs: Personal Priority
Display (PPD), Big Dot, Series 200, Series 300, Series 4000, and Series 7000.
Changing the serial address
An ALPHA sign's serial address is a number from 0 to 255 in hexadecimal (00 to FF). An ALPHA SA sign's serial address is a number
from 000 to 255 in decimal (000 to 255.) The address is used to identify the sign in a network of signs. All signs leave the factory with a default
address of 0 or 000.
To change the serial address on all the signs except the PPD, follow these steps:
REMOTE CONTROL
ON - OFF SOUND
1.Point a hand-held Remote Control (shown at left) at the sign, and press PROGRAM.
PROGRAM RUN
APPEND CURSOR SPECIAL FONT WIDTH COLOR
ROLL WIPE SCROLL FLASH HOLD ROTATE
1 2 3 4 5 6
2.Press BACK until SET SERIAL ADDRESS (or SET ADDRESS) is displayed.
AUTO SPEED TIME DOT
7 8 9 0 SELECT
A B C D E F
¢
# $ % & *
G H I J K L
3.Press ADV and SERIAL ADDRESS = 00 (or ADDRESS = 00) will appear.
< > = +
/ -
R
M N O P Q
: .
; " ' ,
T V W
S U X
? !
Y Z SPACE RETURN
4.Type in the new serial address using the numbered keys on the Remote Control. (A serial address is actually a
SHIFT CAPS SHIFT
INSERT BACK ADV DELETE number from 0 to 255 in hexadecimal. Typically, a number from 00 to 99 is used.)
5.Press RUN twice to set the new serial address and return the sign to normal operation.
To change the serial address on a PPD, follow these steps:
1. Press the A and B keys on the front of the PPD at the same time.
2. Press B until SET SERIAL (A) appears.
3. Press A. The sign should display the following: A Next, B Change and the current serial address below.
4. Press B to change the first digit of the serial address.
5. Then press A to select the second digit.
6. Press B to change the second digit of the serial address.
7. Press A (for Next).
8. Press A and B at the same time. Then press A (for RESUME).
Mounting instructions
Before mounting a sign, remove power from the sign.
NOTE: ALPHA signs are for indoor use only and should not be continuously exposed to direct sunlight.
NOTE: Mounting hardware that is used to hang or suspend a sign must be able of supporting at least 4 times the
weight of the sign.
Model
(weight)
PPD
(1 lb 5 oz, 595.35 g)
Revision date: 10/16/2017
ALPHA™ series sign installation instructions
for the Personal Priority Display, Big Dot
Wall
Ceiling mounts
9 3/8" (23.8 cm) apart
Wall mounting holes 4" (10.2 cm) apart
© 1997-2017 Adaptive Micro Systems
®
, and Series 200, 300, 4000, and 7000 signs
WARNING
Hazardous voltage.
Contact with high voltage may
cause death or serious injury.
Always disconnect power
to sign prior to servicing.
Mounting instructions
The mounting bracket
and screws are included.
1
Ceiling Counter
The mounting bracket
and screws are included.
9700-0043D
