Centro P.WD Operating Manual

Collet
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Operating manual

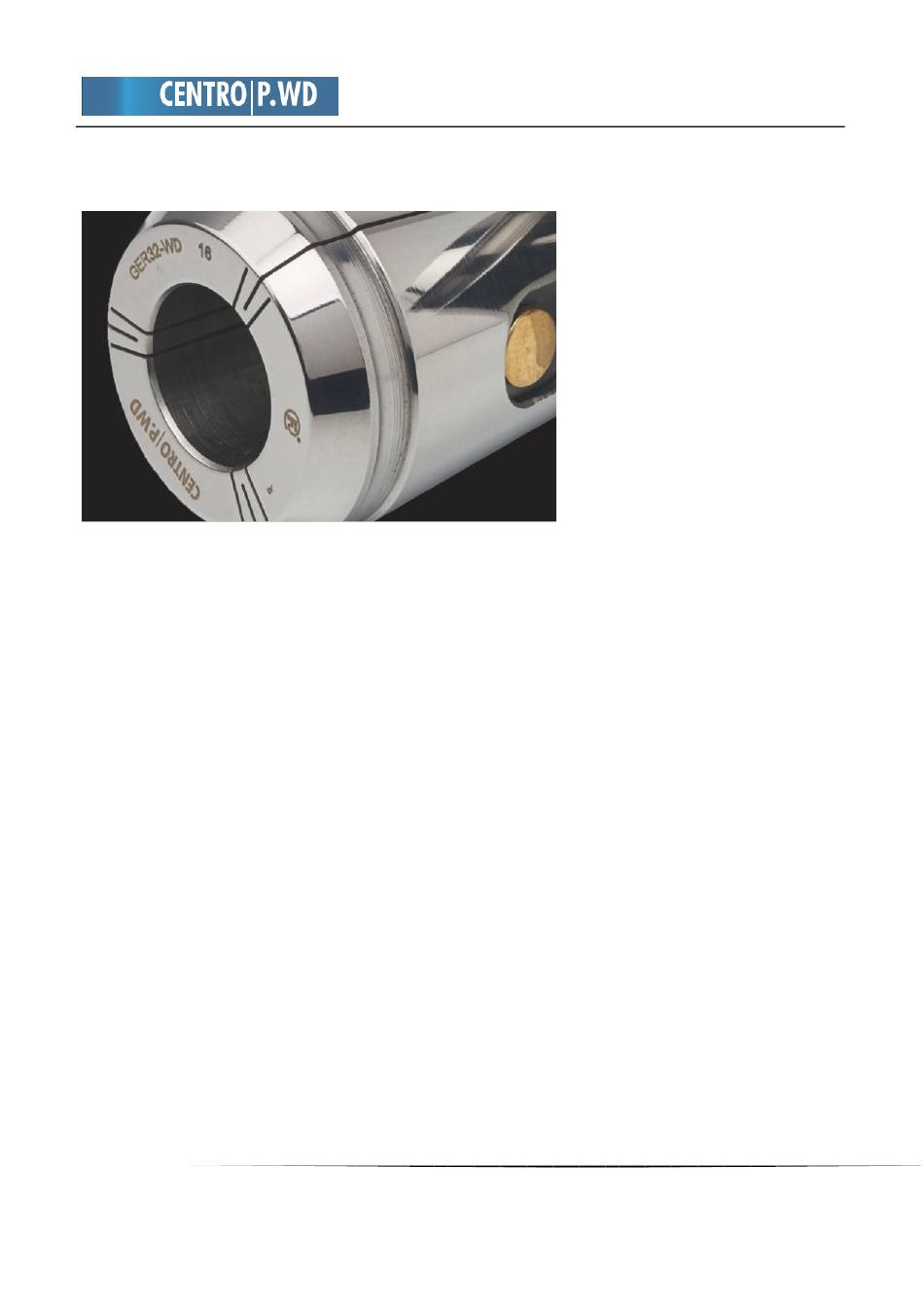

Illustration shows similar product
Contents
Operating manual ...................................................................................... 1
Foreword .................................................................................................... 2
Target group for this operating manual ..................................................... 2
1. 1 Safety ........................................................................................... 3
1.1
Safety information ......................................................................... 3
1.2
Intended use .................................................................................. 3
2. 2 Clamping / unclamping .................................................................. 4
2.1
Usable shaft types .......................................................................... 4
2.2
2.3
2.4
3. 3 Care and storage ........................................................................... 8
4. 4 Technical data ............................................................................... 8
4.1
CENTRO|P.WD tightening torques ................................................ 8
4.2
Versions .......................................................................................... 8
1
EU -V1

Advertisement

Table of Contents
loading

Summary of Contents for Centro P.WD

  • Page 1: Table Of Contents

    Intended use .................. 3 2. 2 Clamping / unclamping ..............4 Usable shaft types ................4 Inserting the tool into the CENTRO|P.WD collet ......4 Inserting the CENTRO|P.WD collet into the chuck ......5 Removing the tool from the CENTRO|P.WD collet ......7 3.

  • Page 2: Foreword

    EU -V1 Foreword This operating manual will enable you to use the CENTRO|P.WD collet for its intended purpose • safely • Target group for this operating manual The operating manual is intended for users of the CENTRO|P.WD collet. We assume that these persons possess general technical skills.

  • Page 3: Safety

    When used with rotational motion, protective covers should be used in accordance with the EU Machinery Directive. Intended use CENTRO|P.WD is a precision tool and must be handled with appropriate care. Avoid mechanical, chemical or thermal effects that exceed the stress levels normally encountered in proper use.

  • Page 4: Clamping / Unclamping

    Usable shaft types Cylindrical shape B as per DIN 1835 Part 1 and DIN 6535 HB shape B with lateral driving planes. Inserting the tool into the CENTRO|P.WD collet Risk of injury! Wear gloves when inserting the tool. Clean all components before use!

  • Page 5: Inserting The Centro|P.wd Collet Into The Chuck

    EU -V1 Inserting the CENTRO|P.WD collet into the chuck a) Insert the collet with the clamped tool into the clamping nut so that the clamping slope contacts. b) Turn the assembled components upright and hold by the tool. Then insert into the chuck.
  • Page 6 EU -V1 c) Tighten the clamping nut by hand to the stop (gap between nut and chuck < 2 mm). Backlash can be eliminated by pulling the tool in an axial direction (important for backlash-free extraction prevention). Then tighten the nut by hand. d) Tighten to the specified torque using the appropriate wrench.

  • Page 7: Removing The Tool From The Centro|P.wd Collet

    EU -V1 Removing the tool from the CENTRO|P.WD collet a) Push the tool into the collet until the key lifts. Then rotate the tool by 90°. b) Pull the tool straight out of the collet.

  • Page 8: Care And Storage

    EU -V1 3 Care and storage Clean and lightly oil the CENTRO|P.WD collet before putting into storage. Avoid long-term contact with corrosive and solvent-based chemicals/cleaning agents when cleaning. These solvents include, but are not limited to: petroleum ether, thinners, brake cleaner, etc.
