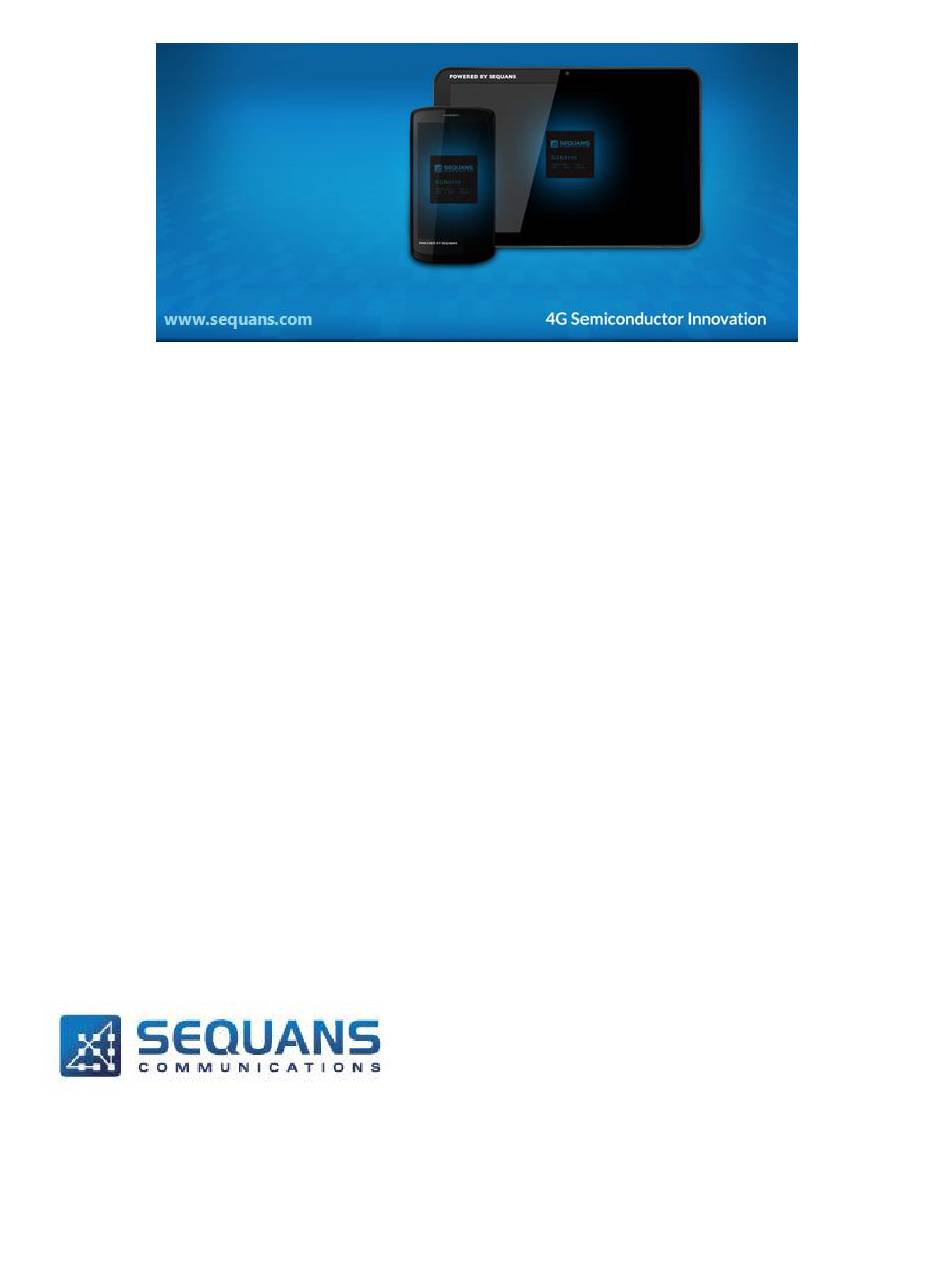

- Page 1 Testing preparation of VZ22Q/VZ22M for 3GPP SEQUANS Communications Les Portes de la Défense – Hall A 15-55 Boulevard Charles de Gaulle 92700 Colombes - France Phone. +33.1.70.72.16.00 Fax. +33.1.70.72.16.09 www.sequans.com contact@sequans.com...
-
Page 2: Legal Notices
All information contained herein and disclosed by this document is confidential and the proprietary property of SEQUANS Communications, and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. -
Page 3: Fcc Warning
If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: COFVZ22Q” SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 3/21... - Page 4 FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re- evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 4/21...
-
Page 5: General Instructions
If something is missing, please contact Sequans Communications for help. 2 – Install the Sequans driver and tools on the host PC if not done. (See Appendix C) 3 - Connect according to Appendix A (RF cable, USB cable, Sim insertion, …) 4 - Open the Windows device manager, you should see the device enumerated after few seconds, with following interfaces. - Page 6 Please make sure to revert to correct one, before to start a new test case. All the above settings are persistent after reboot. You can check if the configuration is as expected with following commands: AT+SQNCTM? AT+IMSTESTMODE? AT+VZWAPNE? SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 6/21...
- Page 7 It is recommended before to start the testing, to disable the 192.168.15.1 network adapter to stop data from laptop. The second 192.168.16.1 interface can be activated as debug port, if required to take some logging using Sequans DM tool. Please check in Appendix F the mean to identify and disable this port.
-
Page 8: Appendix A - Device Cabling
Appendix A – Device Cabling Please connect the device according to the following diagram: SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 8/21... -
Page 9: Appendix B - Firmware Upgrade
3- Enter the login “root”, and the password “root” in order to acces to the web ui 4- Click on “system” and on “backup/flash firmware”, and untick “Keep settings” 5- Click on “browse” and select the .sfp file to flash ‘for example SQN3221-VZ22M-REV1_ECM- ACM-VERIZON-REL9_LR4.1.2.0-SFN-17924.sfp) - Page 10 7- A new page with checksum will appear 2 min after the clicking of “flash firmware”. Confirm the flash and wait for 2 min. 8- The target is now flash. Configure the settings defined in the “general instruction” topic of this document SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 10/21...
-
Page 11: Appendix C - Sequans Driver Installation
Appendix C – Sequans Driver installation In order to install SEQUANS drivers (on WINDOWS PC), please, follow these steps: 1- · Make sure the device is unplugged and uninstall any previous versions of Sequans drivers on the test host device 2- ·... - Page 12 4- Read the Sequans License Agreement. Click “I accept” if you agree with the License terms and want to continue the installation SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 12/21...
- Page 13 5- Select the installation directory. The default directory can be changed by clicking the Browse button. Click Next when the appropriate directory is selected SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 13/21...
- Page 14 6- Select the Start Menu folder name. The default folder can be changed by clicking the Browse button. Click Next when the appropriate folder is selected SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 14/21...
- Page 15 7- Verify the installation directory and click Install if no change is required. You can update the installation directory by clicking the Back button at this stage SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 15/21...
- Page 16 Check the box to proceed with the installation process Click Finish to complete the installation process SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 16/21...
- Page 17 SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 17/21...
-
Page 18: Appendix D - Tester Configurations
Appendix D – Tester configurations If possible, we recommend using the below tester configurations for 3GPP conformance, since those setups are used by Sequans for pre-testing: 3GPP TS36.523-1 Anite9000 + CT v33.0 3GPP TS36.521-1 R&S TS8980 Contest v11.0 - RF v3.21 ... -
Page 19: Appendix E - Usat Default Apn Setting Per Tc
APN AT+SQNSTKAPNE="TestGp.rs","IP",1 GET CHANNEL STATUS EPS bearer with APN 27.22.4.31.1/4 different from default APN AT+SQNSTKAPNE="TestGp.rs","IP",1 GET CHANNEL STATUS EPS bearer with APN different from default APN, after a link 27.22.4.31.1/5 dropped AT+SQNSTKAPNE="TestGp.rs","IP",1 SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 19/21... -
Page 20: Appendix F - Deactivation Of 192.168.15.1 Port
192.168.15.1 port through the Windows Network Adapter panel (Check below screenshot). 1 – Use ipconfig/all command to identify the interface 192.168.15.1 2 – Right click on the interface to disable SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 20/21... - Page 21 3 – The 192.168.15.1 interface is now disabled SEQUANS Communications Confidential and Proprietary VZ22Q_VZ22M_Testing_Preparation_R03 21/21...
