Tools Required for Assembly
A. Power Driver with Adjustable Torque
B. #2 Phillips Head or #2 Square Driver Bit
Hardware Included for Assembly
H. 3/4" Wood Screw x2
Installation
• Make sure the power to the workstation is not plugged in. Mount the
switch in the desired location. Use two (2) wood screws H through the
slots at the back of the switch. These will be found in the hardware pack
for the workstation.
• Run the cable through wire management to the control box on your
workstation and plug it into the control box.
• Plug the motor cables into the control box. Then plug the power cable
into the control box.
• Press the down key and lower the desk as far as it will go. This resets the
control box.
• To raise the desk, press the up key. To lower the desk, press the down key.
The desk will stop at the upper and lower limits of the control box.
Programmable Switch
Motor
Motor Cable
A
(may have extra)
H
Switch Cable
Instruction #54141 • Dated: 02/20/2019
Installation, Operation & Troubleshooting
of the LI LD6EC Programmable Switch
B

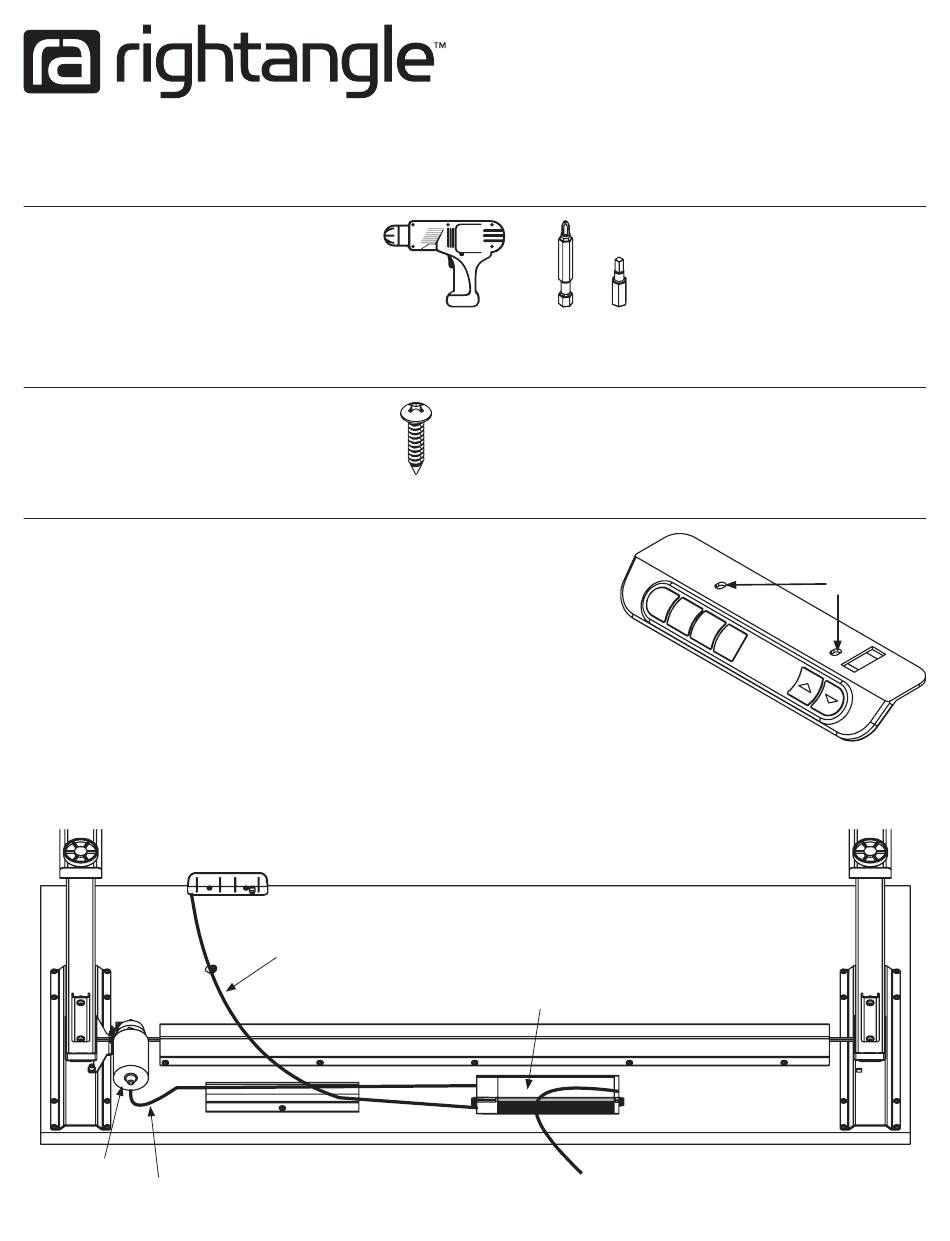

Cable Routing Diagram
Control Box
Power Cable
H
1 of 8
Advertisement
Table of Contents
Summary of Contents for RightAngle LI LD6EC
- Page 1 Installation, Operation & Troubleshooting of the LI LD6EC Programmable Switch Tools Required for Assembly A. Power Driver with Adjustable Torque B. #2 Phillips Head or #2 Square Driver Bit Hardware Included for Assembly (may have extra) H. 3/4” Wood Screw x2 Installation •...
- Page 2 READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. USE THIS PRODUCT ONLY AS INSTRUCTED. FAILURE TO COMPLY WITH ALL INSTRUCTIONS AND WARNINGS MAY RESULT IN SERIOUS PROPERTY DAMAGE OR BODILY INJURY. WARNING Basic Safety Instructions Intended Use. This Product is exclusively designed for use as indoor office furniture in compliance with all instructions and safety warnings in the user manual.
- Page 3 Store Memory Page 3-4 One Touch On/Off Page 5 Container - Enter/Delete Page 6-7 Trouble Shooting Page 7 Mechanical Reset Page 8 Enter Button 27.0 2-4 Keys Display Arrow Keys Unused During Programming Setting Memory Positions 1 - 4 Setting the Preset 1 button 1.
- Page 4 Setting the Preset 3 button 1. Move the workstation to the desired height using the 2. Quickly press to enter the menu mode. is displayed and you will hear a musical tone. 4. Press the to navigate the menu. 5. Navigate to the display 6.
- Page 5 One Touch/Short Press Memory Position mode – On/Off What is One Touch/Short Press? One Touch/Short Press OFF: Press and hold the memory position buttons 1-4 until the workstation reaches its preset height. One Touch/Short Press ON Press memory position buttons 1-4 for 1 second and the workstation automatically reaches its preset height.
- Page 6 Setting Upper and Lower Container Stops Container stops allow the user to limit the travel of the workstation to avoid collision with common under desk and over desk items such as file cabinets, chairs, upper shelf, counter tops, etc. NOTE: Container stops can be added and deleted at any time. CAUTION: If the workstation loses power it requires performing a reset procedure.
-
Page 7: Trouble Shooting
Removing the Upper and Lower Container Stops Removes the existing container stops from memory. Removing Lower Container Stop 1. Move the workstation to its lowest position by pressing and holding the until it stops moving. 2. Quickly press to enter the menu mode. is displayed and you will hear a musical tone. - Page 8 Mechanical Reset Mode If the table is unresponsive, uneven, or not functioning properly, perform a manual reset. User settings are not reset in this process. There are three methods to reset a workstation: Reset Method A 1. Clear all obstructions from the travel path of the workstation 2.
