Summary of Contents for CAMPARK V30

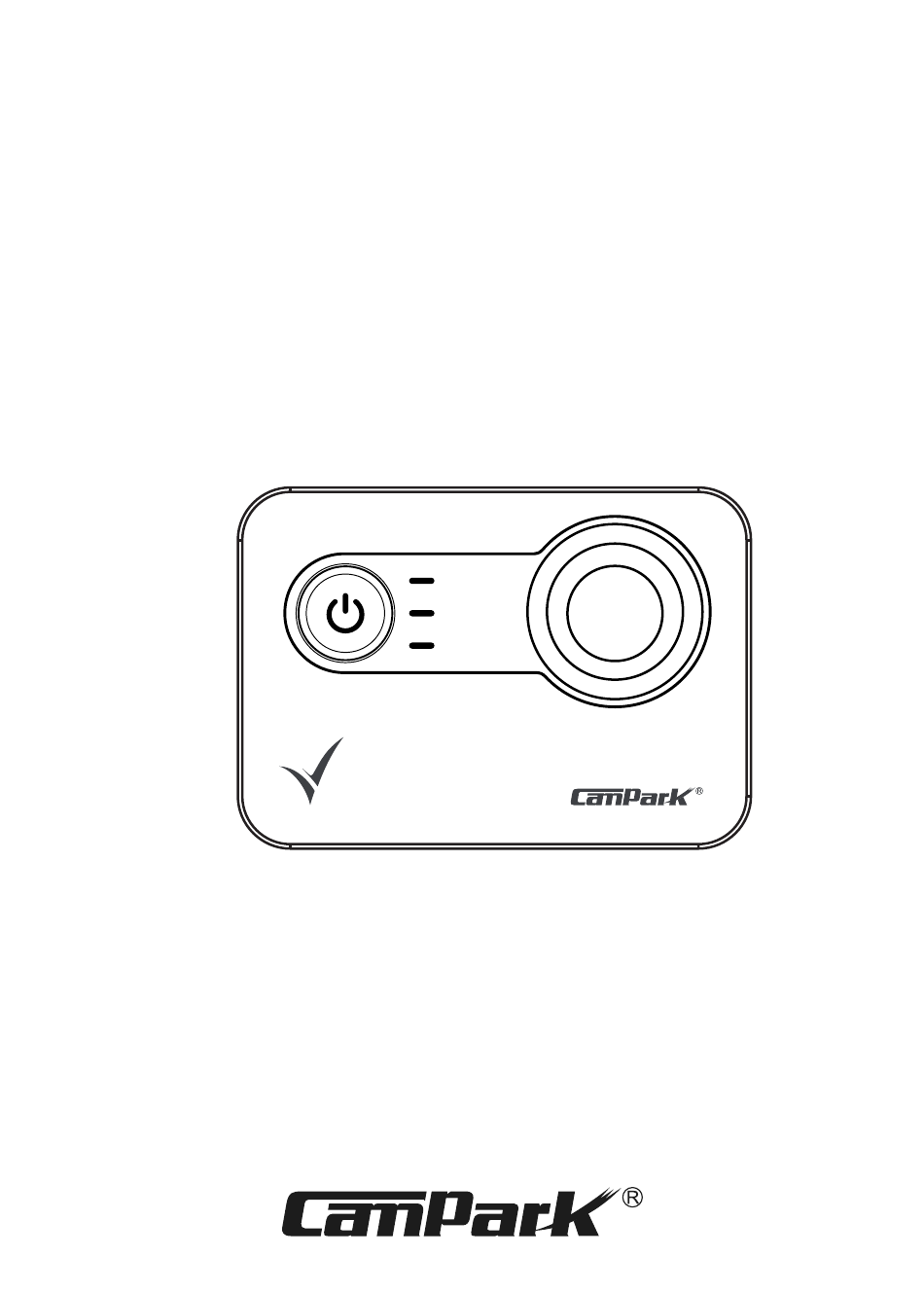

- Page 1 V30 True 4K Ultra HD Action Camera UHD 4K...
- Page 3 V190601...
- Page 5 Accessories Introduction...
- Page 7 Precaution Thank you for choosing Campark V30 camera. Please carefully read the manual before using, and keep it at a safe place for future reference. The compilation of the user manual refers to the latest information. The manual quotes captured screen displays and graphics, with the aim to introduce the digital camera through detailed and direct methods.
- Page 8 The V30 record video in 4K ultra HD resolution with high bitrate. To ensure normal function of the camera, please use high speed memory card, The writing speed should be at least 10 MB/ second, UHS 3 card are recommended.
- Page 9 Keys/Indicators Function a: Press & Hold to turn ON / OFF the camera. b: Short press to enter mode choosing Power / Mode c: Under the menu mode, short press to switch between menu sections a:Short press to Start / Stop recording; b:Short press to take a photo;...
- Page 10 B. How to use memory card. 1. The camera uses Micro SD card as storage, capacity up to 128GB supported, and to ensure normal function, please use high speed memory card, UHS 3 rated memory card are recommended. 2. Before using the camera please insert the memory card first, and format the memory card in setting menu before using.
- Page 11 Button Function and Interfaces: Video Mode : 1. Video Mode Icon 2. Recording Time 3. Remaining Recording Time 00:03:25 00:03:25 4. Memory Card Status 5. Audio Recording Status 6. Power Status 7. Playback Video 8. Mode Selection 4K30FPS 9. Setting Menu 10 11 12 13 10.
- Page 12 Shortcut Menu: (In standby, slide down on the screen to pull out the short cut menu, 3 common functions can be accessed here.) 1.WIFI Setting 2.Lock Screen 3.Power off 4.Slide to Unlock...
- Page 13 Working Mode The V30 camera mainly works in 3 modes : Video Recording Mode / Photo Mode / Playback Mode. Video Recording Mode : The camera will automatically enter video recording mode when powered on. Video Recording Mode , you can short press the OK/Shutter button to start video recording, and press the OK/Shutter button again to stop video recording.
- Page 14 Setup Mode ： Video Recording Mode Photo Mode , press the camera screen Setup icon to enter Setup Mode. There are video mode setup , photo mode setup menu and system setup menu, you can configure the parameters for the specific mode.
- Page 15 1080P 90fps/ Adjust Slow Motion Slow Motion recording resolution. 720P 120fps/ Take a photo while 4K 30fps Still Photo (In video) recording video. Choose the video lapse interval time under time lapse mode. Eg: set it to 1 second means the camera will capture 1 frame of video 0.2s/0.3s/ per second,and if you...
- Page 16 Turn ON/OFF ON/OFF Audio Record audio recording - 2/-1.7/-1.5/-1.3/ Adjust exposure according to using -1/-0.5/-0.3/0/ Exposure Value conditions to adjust +0.3/+0.5/+1/+1.3/ picture brightness. +1.5/+1.7/+ 2 Adjust ISO values to Auto / 100 / 200 / adjust brightness of 400 / 800 video.
- Page 17 Setup a timer for selfie. 1s/3s/5s/10s/30s Self-Timer interval, the camera 3s/ 5s/ 10s/ 30s/ Time Lapse Photo will take a photo per 1 min preset time. Adjust burst photo 3 shots / second counts. The camera Burst Photo 5 shots / second will take several 10 shots / second photo in one shot.
- Page 18 Adjust camera light Center/Average Meter Mode metering mode Adjust photo sharpness Strong / Normal / Sharpness according to your need. Soft Choose the color Natural/ Color according to using Black&White / Sepia conditions. Adjust photo sharpness Fine / Normal / according to your need.
- Page 19 System Setup Menu Menu Options Application Turn ON to correct Distortion ON/OFF wide angle distortion Calibration Choose a suitable field of view according to 70°/110°/140°/170° your need. Turn ON/OFF Driving Mode ON/OFF driving Mode Turn ON/OFF WDR ON/OFF Function OFF/ 1 minute Set the time the camera 3 minutes / Auto Power Off...
- Page 20 YYYY/MM/DD Adjust date display Date Format MM/DD/YYYY format DD/MM/YYYY Adjustable Setup local date Set Date Adjustable Setup local time Set Time OFF/ Date&Time / Date Stamp Adjust stamp information Date Choose the right Power power source frequency 50Hz/ 60Hz Frequency accordingly.
- Page 21 WiFi Connection and APP The V30 camera has built-in WiFi function, you can connect it to your smart phone and remotely control the camera and share the recorded moments. Before using WIFI function, please install “RoadCam” APP on your smart phone.
- Page 22 4. With the APP, you can use your smartphone to remotely control the camera, download the recorded files, and change the settings. Specification Campark V30 Model: Display 2.0 inch LCD Screen Display 170° High Resolution Wide Angle Lens...
- Page 23 Supported Timer Photo Supported Burst Photo Supported Auto Shutter Data Interface Micro USB / HDMI Storage Micro SD Card (Up to 128GB supported) Micphone Built-in Speaker Built-in External Power DC 5V /2A Battery Capacity 3.7V / 1350mAh Charging Time 2~4 Hours Chinese / English / Japanese / Korean / Language Russian / German / French / Italian / Spanish...
- Page 24 If this happens very frequently, please check the memory card speed, the V30 camera records UHD video, it requires high speed memory card, make sure you are using high speed memory card.
- Page 25 If You Have Any Questions or Problems. Please contact us by USA& Canada support@campark.net Europe eu.support@campark.net uk.support@campark.net Australia au.support@campark.net We will offer prompt and authoritative reply within 24 hours and try our best to resolve your problem ASAP More Safe Guarantee with CAMPARK! If you are not satisfied with our product.
