CLIMA SELECT DB66 User Manual page 33

200 g cartridges
1.
•
Open the compartment located on the right side of your beer machine where
the gas cartridge is installed.
•

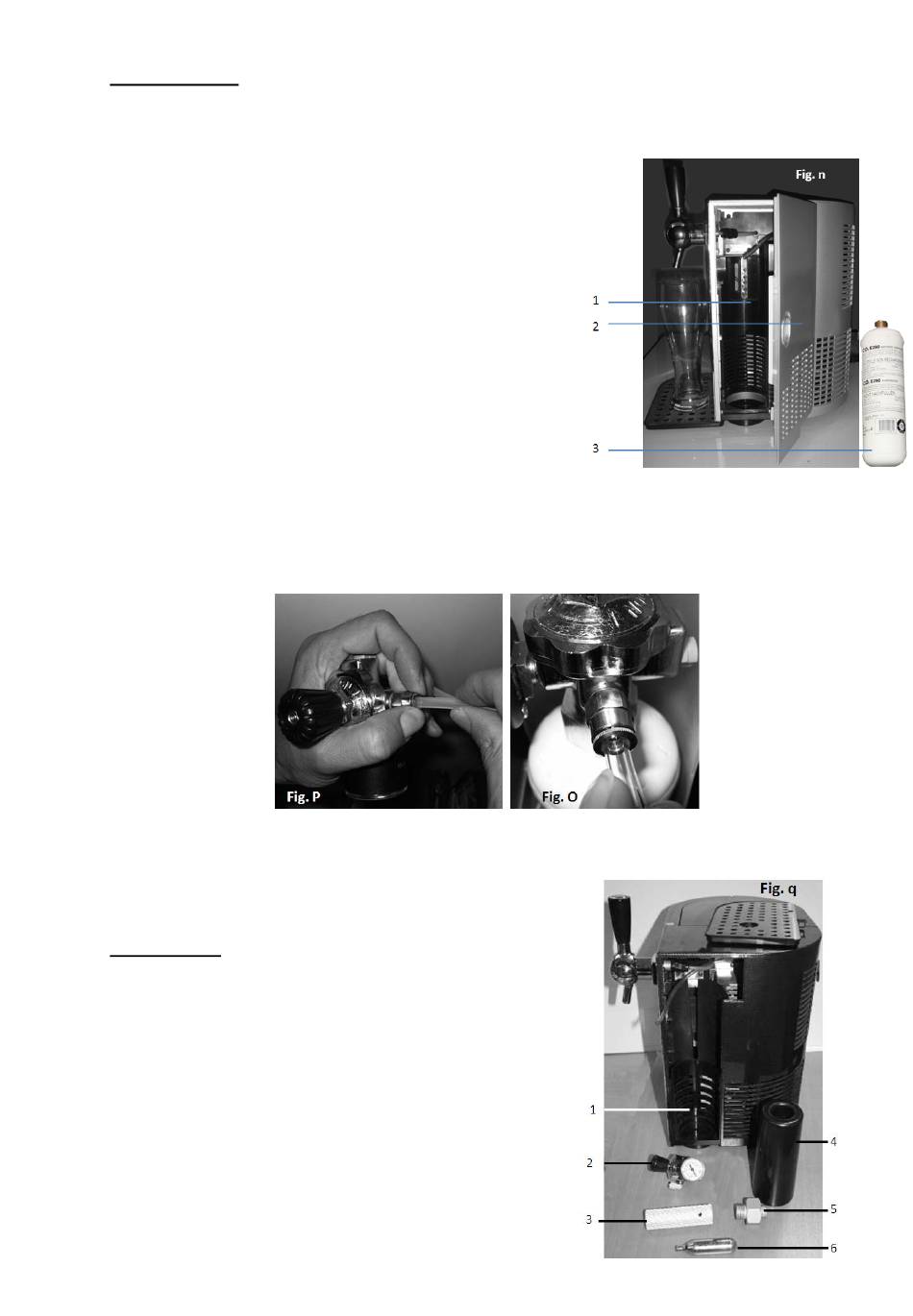

Fig. n :
cartridge compartment
1. CO
2
2. Compartment's door
3. 200 g
•
MAKE SURE THAT THE PRESSURE GAUGE REGULATOR IS IN
THE CLOSED POSITION. To do this, fully turn it counterclockwise
(on the regulator's tap, the – sign indicates the closing direction
and the + sign the opening direction).
•
Fully screw the gas cartridge on the regulator (you will shortly hear gas
escaping from the regulator ; this is normal ; do not stop screwing ;
this indicates that the cartridge has been correctly plunged in).
•
Connect the tube to the regulator's metal endpiece (Fig.o) by pushing it
fully in. Make sure that the tube is connected. Try to remove it by gently
on it. If it does not budge, it is properly connected. To disconnect it,
press down on the metal endpiece while pulling up on the tube Fig. p).
•
Place the assembly in the recess provided for this purpose making sure that the regulator's dial is facing toward
the window and close the door.
16 g cartridge
2.
•
Open the compartment located on the right side of your beer machine
where the gas cartridge is located.
•
Fig. q :
cartridge compartment
1. CO
2
2. Regulator
3. 16 g adapter part 1
4. 16 g adapter's support
5. 16 g adapter part 2
6. 16 g
CO cartridge
2
CO cartridge
2
