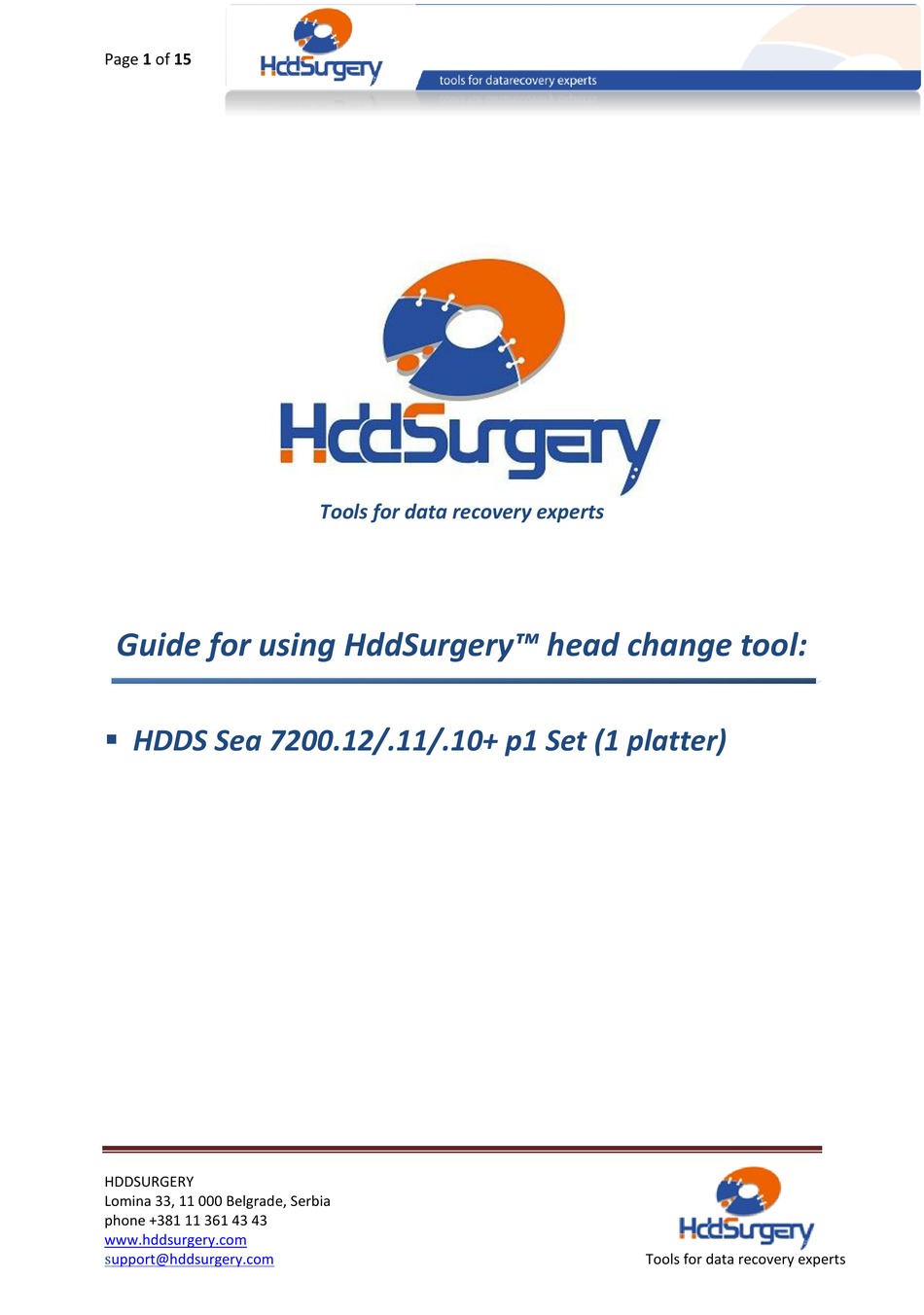

- Page 1 Page 1 of 15 Tools for data recovery experts Guide for using HddSurgery™ head change tool: HDDS Sea 7200.12/.11/.10+ p1 Set (1 platter) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com Tools for data recovery experts...
-
Page 2: Table Of Contents
Page 2 of 15 Table of contents: 1. Introduction ……………………………………………………………………….. page 3 2. HddSurgery™ head change tools ………………………………………… page 4 3. Supported models ……………………………………………………………… page 5 4. Head replacement process (10 steps) Step 1 - Handling the tool ………………………………………… page 6 Step 2 - Mounting the tool on actuator arm ………………... -
Page 3: Introduction
Experienced data recovery technicians or engineers can have great success even without our tools, but they can have absolute security only by using HddSurgery tools. Non-contact head replacement implies that there is no contact between the heads, or between heads and platters in the process of dismounting the donor heads and mounting heads on the patient drive. -
Page 4: Hddsurgery™ Head Change Tools
"data area”, and to provide a non-contact transfer to patient disk. HDDS Sea 7200.12/.11/.10+ p1 Set This set of head change tools is made for safe and easy head replacement on Seagate 7200.12, 7200.11, 7200.10, SV35.5 and LP, but also Maxtor DiamondMax 23, DiamondMax... -
Page 5: Supported Models
HDDS Sea 7200.12/.11/.10+ p1 (1 platter, 1 head) SATA ST3250312AS ST3160813AS STM3250318AS ST380215A ST3250318AS ST380815AS STM3160318AS ST3160316AS ST380215AS STM3160813AS STM380215A ST3160318AS STM380815AS STM380215AS HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com Tools for data recovery experts... -
Page 6: Head Replacement Process (10 Steps)
Because of this, be sure to clean the tool before its use. Tool can be cleaned with a piece of cotton wool and alcohol. When cleaning the head lifting snouts, be extremely gentle. Picture 1. (Handling the tool) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com... -
Page 7: Step 2 - Mounting The Tool On Actuator Arm
!!! IMPORTANT !!! Be sure to tighten the mounting screw because this will ensure a good contact and proper tool height. HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com... -
Page 8: Step 3 - Lifting The Heads
HDA assembly. Push the tool until its snouts lift the heads – as far as the limiter is allowing. Picture 3. (Lifting the heads) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com... -
Page 9: Step 4 - Securing The Tool
Picture 4. (Securing the tool) !!!IMPORTANT!!! If the connection of the tool and actuator arms is not properly engaged, heads might slip from snouts during the disassembly. HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com... -
Page 10: Step 5 - Moving The Tool Outside Of Platters Area
On hard drives with one head push the back side of the head arm to move the heads off the platters. Picture 5b. (Moving the tool with heads outside of platters area) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com... -
Page 11: Step 6 - Unscrewing The Heads
While performing this step on hard drives with one head make sure that the head stays on the tool and that it doesn’t slide off. Picture 6. (Dismounting the heads) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com... -
Page 12: Step 7 - Mounting The Heads In A New Drive
Picture 7. (Mounting the heads on a patient drive) By horizontal scrolling return the heads back towards the central section of the platters. HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com... -
Page 13: Step 8 - Removing The Securing Pin
Page 13 of 15 Step 8 - Removing the pin Carefully remove the securing pin when heads are above the parking zone. Picture 8. (Remove the securing pin) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com... -
Page 14: Step 9 - Removing The Tool Outside Of Platters
With your other hand, hold back side of the head arm (magnetic coil) to prevent heads from moving. Picture 9. (Returning the tool outside of platters) HDDSURGERY Lomina 33, 11 000 Belgrade, Serbia phone +381 11 361 43 43 www.hddsurgery.com support@hddsurgery.com... -
Page 15: Step 10 - Dismounting The Tool
Put the lid back and close the disk. Put PCB back and start cloning the drive. You can find more information about this tool and many other tools used for data recovery on our website. http://www.hddsurgery.com/ Also you can watch the videos that show how this tool works on our YouTube channel. http://www.youtube.com/user/HddSurgery...
