CableTRAN Series MoCA1.1+ Controller
User Manual
Luster Teraband Photonics Co., Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CableTRAN MoCA1.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Luster Teraband Photonics CableTRAN MoCA1.1

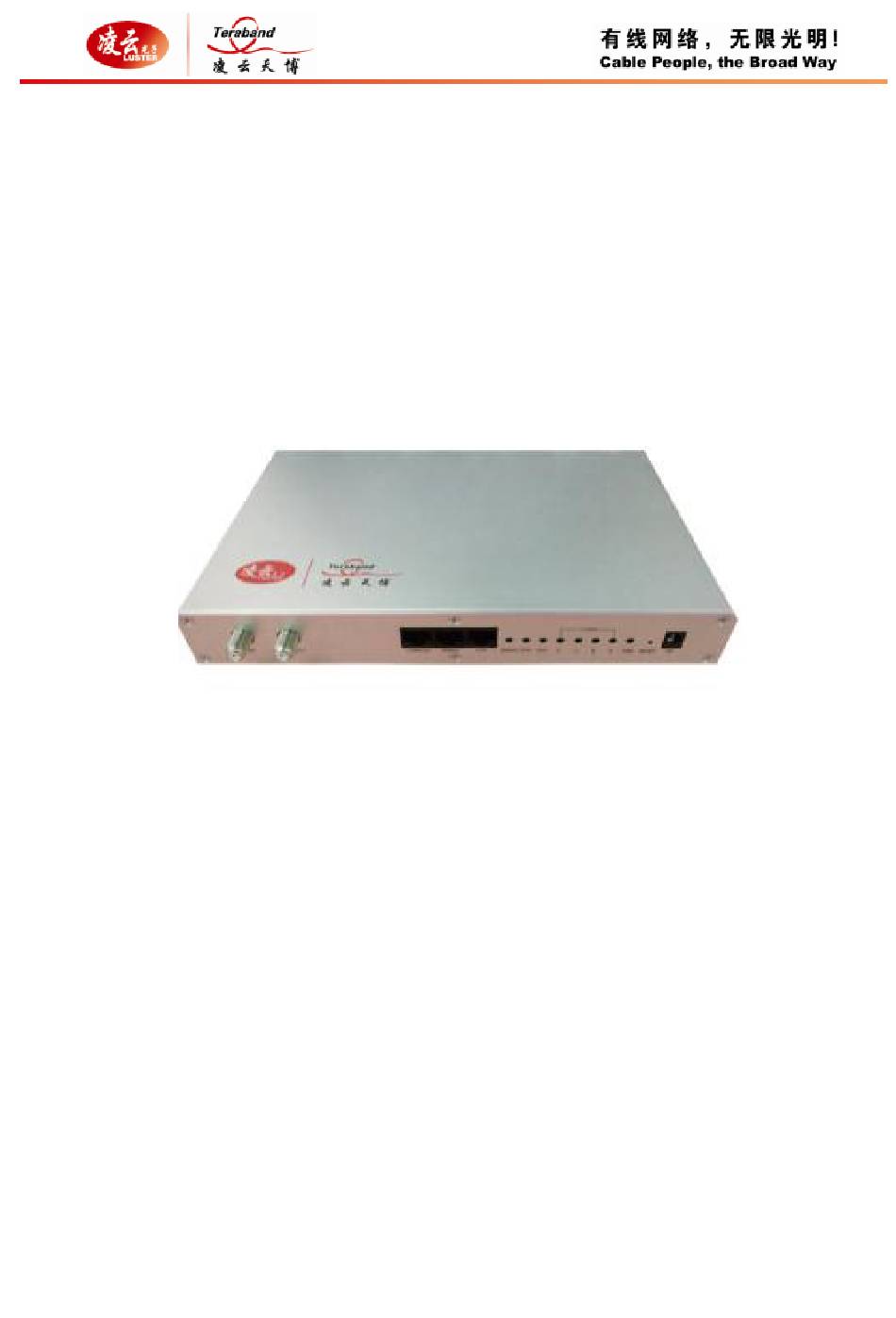

  • Page 1 CableTRAN Series MoCA1.1+ Controller User Manual Luster Teraband Photonics Co., Ltd...

  • Page 2: Product Overview

     Product Overview CableTRAN NMI2000 series controller adopts technology of MoCA1.1+ and can be used in high-quality two-way coaxial network rebuilding project. MoCA1.1+ product is mainly used in the FTTB accessing network structure with the optical node covering 50-100 users. It supports video, data and voice services, such as SD/HD VOD, VoIP, video telephone, Over-the-Top, games, etc.
  • Page 3 Interface Instruction TV IN1 Electric signal input, used to connect optical receiver, metric interface Mixed signal of Television and MoCA input, used to connect branch RF OUT1 distributor network, metric interface CONSOLE Debug serial port, need to use dedicated line to debug the machine. Debug 1000M Ethernet interface, used to debug locally, RJ45 interface 1000M Ethernet interface, used to connect associated equipment like ONU,...

  • Page 4: Installation

    Connection Indicator Light On: CPE equipment connected Flicker: Sending and receiving data Off: Power disconnected or broken Power Indicator Light On: Power works normally  Installation 1. Attention In order to guarantee normal work of equipment and extend service life, please follow the following regulations during the process of installation: 1) Please handle gently during the process of installing and moving equipment.

  • Page 5: Failure Diagnosis

    3. Check if the debug equipment works normal 4. Restart the machine (power off first and then power on) Luster TeraBand Photonics Technology Co., Ltd. Address: 4/F, Building D, Jiading Science Park of Shanghai University, 1355 Chengbei Road, Jiading District, Shanghai, China (ZIP Code: 201807)

  • Page 6: Product Warranty Card

    Product Warranty Card Purchase Date： Customer Tele Address Product Type Serial Number One year Explanation Warranty Lifetime Period Welcome to use our product. Warranty 1. Since the purchase date, the machine will be Failure repaired for free by this warranty card during the Instruction warranty period.
