Newport 818D-IG Installation Manual

818/918D-IG,IR: Fiber Adaptor and CORE-IR installation
Fiber optic adaptors for the 818/918D series detectors allow the user to perform optical power
measurements when working with bare and connector terminated optical fibers.
FP3/FP4 series connector adaptors accommodate optical fibers terminated with SMA, ST and FC
connectors. These adaptors can be easily attached to the 818-FA fiber adaptor mount with two screws,
allowing for easier insertion and unplugging for fiber optic connectors. Also, when working with the small
area detectors (818/918D-IG,IR), it is highly recommended to use an FP4-CORE-IR series adaptor core.
The core allows the user to make accurate measurements from connectorized fibers regardless of input
conditions by using collimating optics to collimate the beam and thus prevent detector overfill effects.
For example, the following components are required to take peak-to-peak power measurements of light
coming from a FC-connectorized fiber with a wavelength of 1310 nm:
1. 818/918D-IR
2. 818-FA
3. FP4-FC
4. FP4-CORE-IR
The FP4-CORE-IR is inserted into the FP4-FC adaptor, see Fig. 1.
Use the silver screws provided to tighten the FP4-CORE-IR in the FP4-FC adaptor, see Fig. 2.
Photonics Technical Note #6
818/918D-IG,IR Series Low Power Detectors

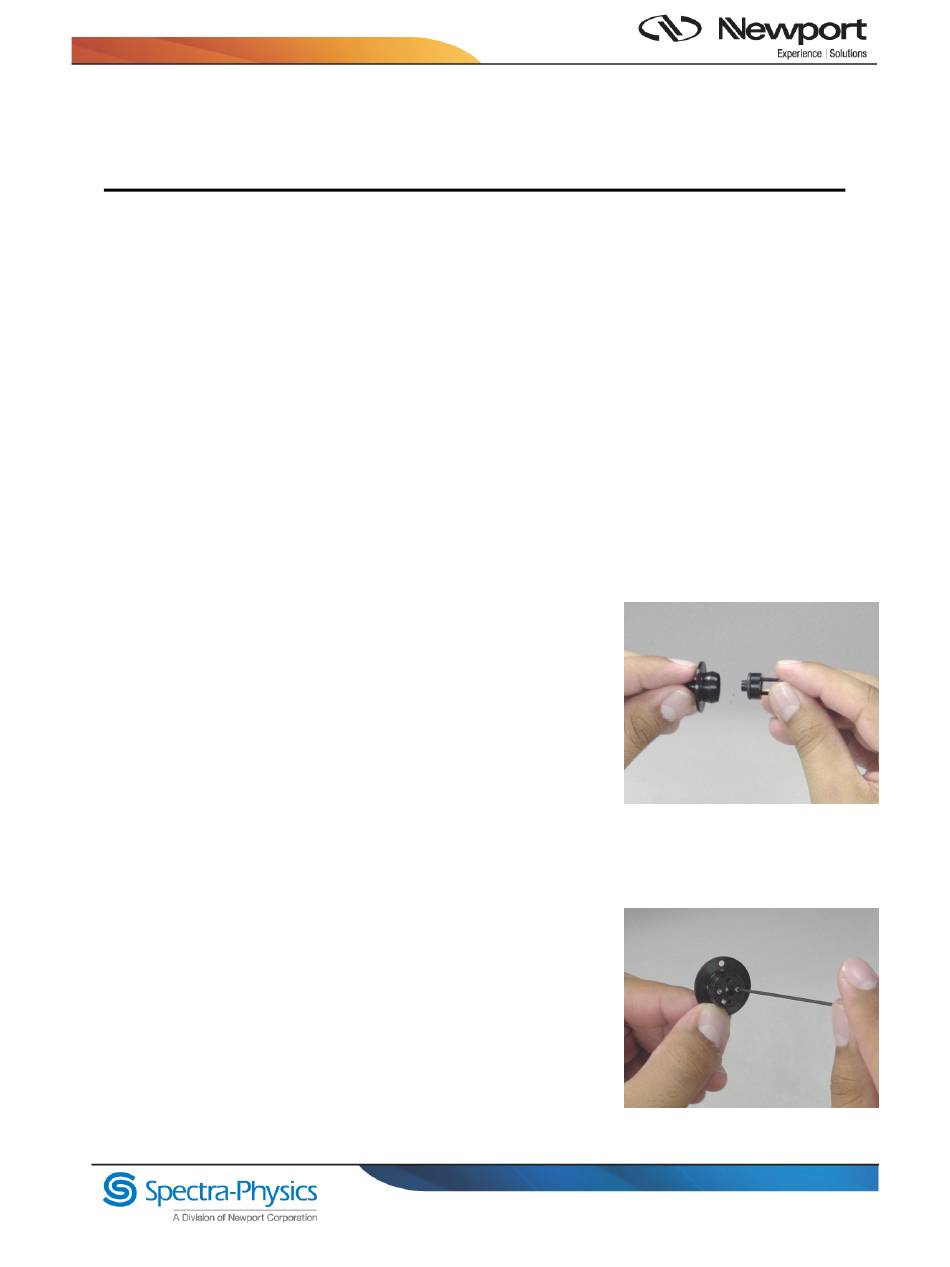

Figure 1. FP4-CORE-IR inserted
into the FP4-FC adaptor.
Figure 2. Tightening of the FP4-
CORE-IR into the FP4-FC adaptor.
