Onyx Liberty Series Instruction

Belvue, KS 66407
ENCLOSED
SHOWER SEAT

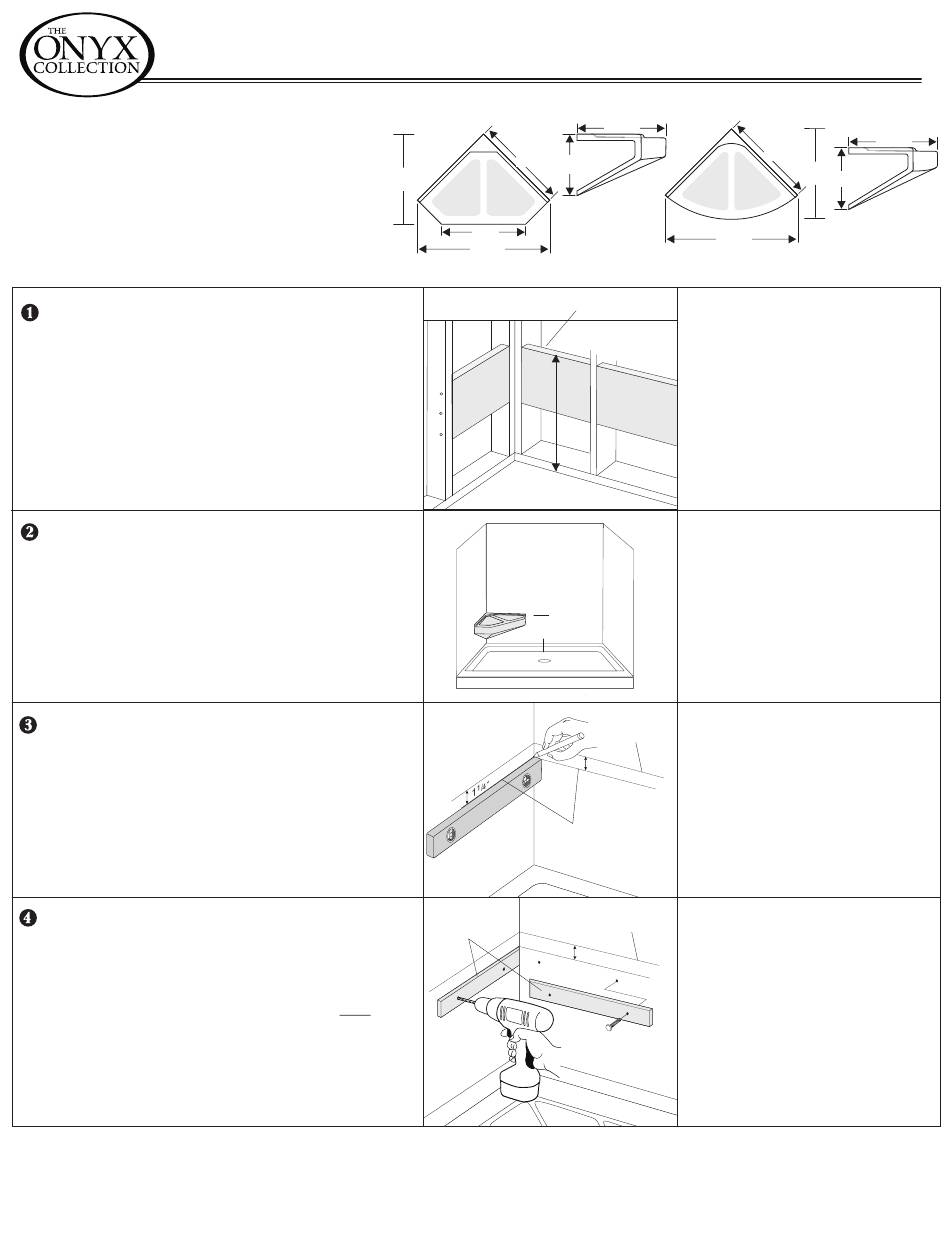

Wall Preparation

Wood backing is needed to support the Shower Seat.
Install the backing as seen in the picture to the right.
We recommend using a 2" x 10". Mount the backing
so that its center is about 20" high off the floor. This
will allow for the finished seat height to be 16" to 20"
tall. The backing should extend a minimum of 16"
from the corner.

Seat Location

After the shower wall is installed, determine the
height of the corner seat (normally between 17" and
19" above the base). Mark the walls with a pencil or
tape on the top of the seat for a reference point, then
remove the seat.

Marking for Support Location

Using the top of the seat mark, measure down 1 ¼".
Then using a level, draw a line out from the corner
about 16" long on each wall to use as a guide for the
seat supports. This will be used to align the seat
supports and keep the seat level.

Attaching the Supports

While holding the seat supports on the level line,
mark the Onyx wall panel with a pencil through the
holes in the supports.
Pre-drill ½" holes through the Onyx panel only, and
then drill ¼" pilot holes into the wood backing. Using
the lag bolts, attach the wood supports to the shower
wall.
