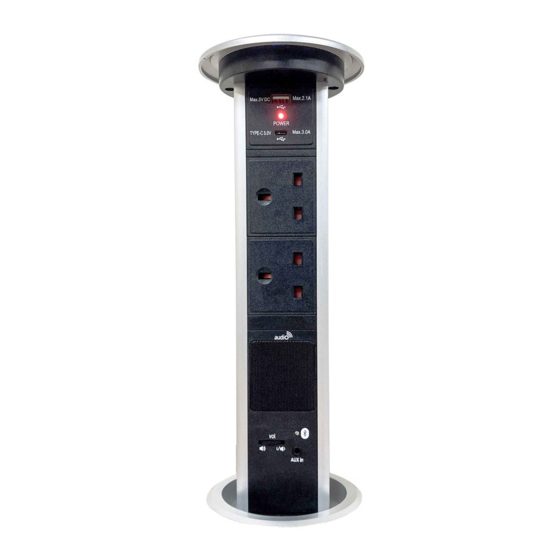

Installation Instructions : QI Enabled Motorised Pop-Up Socket w/ SPEAKER SY8994/SPEAKER
Thank you for purchasing this SycamoreLED.com product. Please make sure instructions are followed carefully prior to and during installation and
product is not altered, otherwise warranty may not be valid. For technical support or warranty information please visit www.sycamoreLED.com, or call
our dedicated technical helpline +44 (0) 113 2866686.
Thank you for purchasing the motorised pop-up socket. We hope that our product will provide you with convenience for years to come.
Remove contents from the package and lay out on cardboard or other protective surface to avoid damage. Check
the contents are correct and free from damage before proceeding. If any parts are missing or damaged, please call
our support line for immediate assistance.
Install and use this product with care. Please read this instruction booklet thoroughly before installation and
carefully follow all instructions. Do not use this product for any purpose or in any configuration not explicitly
specified in this instruction manual. We hereby disclaim any and all liability for injury or damage arising from
incorrect assembly, mounting or usage of this product.
**CAUTION**
This motorised pop-up must be securely installed onto a solid horizontal surface.
TECHNICAL
PARAMETERS
Rated voltage range: AC 95V-250V
Rated fre-quency: 50HZ / 60HZ
Rated current: 13A
External dimensions: 490mm * 112mm
Hole cut-out diameter: φ95mm
USB supply current: 2100mA(2.1A)
SycamoreLED.com
LS26 8XT
Technical helpline : 0113 2866686
*Please email sales@sycamoreled.com to register your product
IMPORTANT—Please read prior to installation
UNPACKING
SAFETY INFORMATION
INSTALLATION DIAGRAM
(1)Product body (2) Silicone Pad
(3) Worktop (4) Locking Ring
USAGE SUGGESTIONS
- Kitchen Worktops
- Bedroom Furniture
- Office Desks
- Hotel Dressing Tables
- Static Caravans
- Reception Desks
Advertisement
Table of Contents
Summary of Contents for Sycamore SY8994
- Page 1 Installation instructions : QI Enabled Motorised Pop-Up Socket w/ SPEAKER SY8994/SPEAKER Thank you for purchasing this SycamoreLED.com product. Please make sure instructions are followed carefully prior to and during installation and product is not altered, otherwise warranty may not be valid. For technical support or warranty information please visit www.sycamoreLED.com, or call our dedicated technical helpline +44 (0) 113 2866686.
- Page 2 INSTALLATION INSTRUCTIONS 1.Use a suitable hole cutter to make a 95mm hole in the worktop(3). 2.Fix the Silicone pad(2) onto the Product body(1). 3.Insert the product body (1) into the 95mm hole in the worktop(3). 4.Rotate the Locking Ring onto the product till the top tightly. Your installation should now be successful.
