SIGNIFY GARDCO DuraForm FLDS Manual

Electrical Connection:

•
Connect the black fixture lead to the input voltage supply or Hot 1 (208V/240V/480V wiring).
•
Connect the white fixture lead to the neutral supply or Hot 2 (208V/240V/480V wiring).
•
Connect the Green ground lead to the incoming ground wire.
•
If DIMD or WLDC external controls options are selected, connect the purple dimming positive lead to the control's dim-
ming positive lead and the grey dimming negative lead to the control's dimming negative lead.

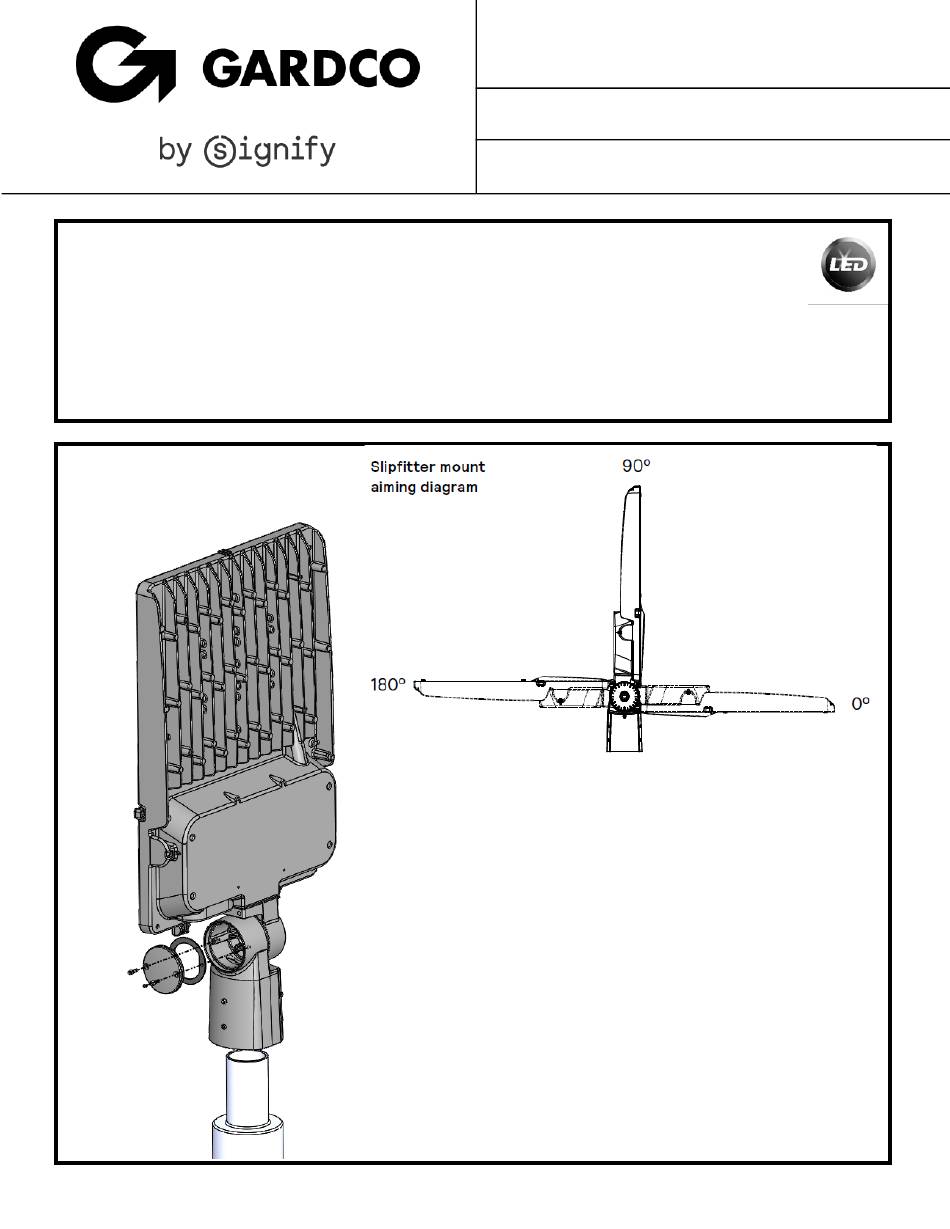

SLF—Slip Fitter Mount
Note: Tenon must be 3.75" or longer.
6/7/2019 page 1 www.gardcolighting.com
Flood
DuraForm
FLDS/FLDM/FLDL Flood Family
Note: 7 pin NEMA Twist Lock Receptacle option aiming
restricted to 0-90
STEP 1:
Remove splice cover screws and splice cover to access wire
splice area.
STEP 2:
Route the supply wire through the tenon. Secure the supply wire
to keep from sliding back down the pole. Route wire through slip
fitter arm into splice area.
STEP 3:
Holding routed wires in splice area, carefully lower luminaire onto
tenon. Check to ensure that wires are not pinched between inside
of slip fitter and top of tenon and that luminaire and wires rotate
freely.
o
per ANSI C136.10
442295030941 Rev A
