Closer Adjustment

Closing speeds can be adjusted to suit local conditions and
requirements. Turn the adjusting screw that projects
through the floor plate or threshold, either in or out as the
case may be until the desired action is attained. Turn this
valve screw to the right, clockwise, to decrease closing
speed and to the left to increase the closing speed.
FORCING THIS SCREW DOWN WILL IMPAIR ITS
OPERATION.

Spring Power Adjustments

There is no spring power adjustment. If the spring power is
not adequate a heavier duo-check should be installed. All
duo-checks PH10, PH12, 15, 16 are interchangeable.
Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2002, 2009, Yale Security Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Rixson Specialty Door Controls
RIXSON
ASSA ABLOY
866-474-9766 Technical Department
www.rixson.com
RIXSON
®
PAGE 4
ASSA ABLOY

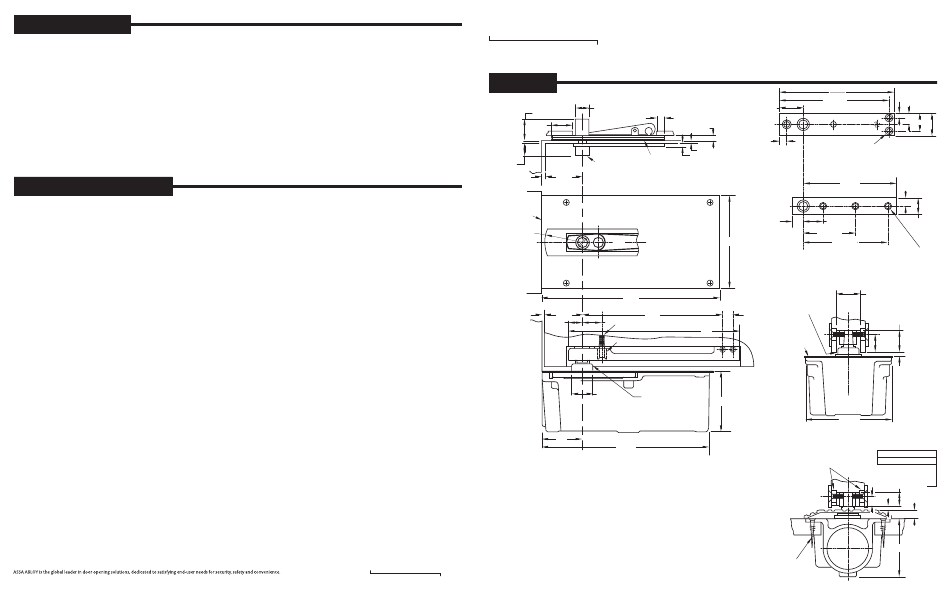

Template
7/8" Dia. Hole
1-7/16
Jamb
1-1/32
Door
7/8" Dia. Hole
7/8
1/8
1-7/8
C L Spindle
Jamb
1-7/8 R.
Max
Arm
1/8
1-7/8
3/4
1"
Arm Must Be
Attached to
1-1/8 Dia.
Spindle
2"
Conversion from inches to metric: inch x 25.4.
Suitable reinforcing by others.
®
Rixson Specialty Door Controls

Installation Instructions

800T (06-09)
1-1/32
9/16
9/32
15/32
1/16
1/4
Finish Plate
TOP PIVOT
5/8
4-1/2
Floor Plate
8-7/8
Provide sufficient
clearance between
door & spindle
7-3/8
1/2
shoulder collar
#18 x 3" FHWS or 5/16-18 x 1-1/4
FHMS to slip in Bushing "X"
9"
Bushing
Spindle Shoulder
3-1/16
Collar
Cement Case
8-3/4"
Provide 5/8" Dia. Holes for
Alignment Screws
(4) 1-1/2 #14 FHWS
www.rixson.com
Duo Floor Closer
Furnished with 90° Hold-Open
unless otherwise Specified
Center Hung
Double Acting
6-3/4
9/32
6-15/32
21/32
Jamb Portion
1-1/32
1-5/16
Holes for (1) 5/8x1/4-20 FHMS
& (2) 5/8x12-24 FHMS or (1) 1-1/2-14 FHWS
& (2) 1-1/4-12 FHWS
5-9/32
1/2
Door Portion
1-1/8
1"
2-31/32
4-13/16
Holes for (3) 5/8x1/4-20 FHMS
or 1-1/2-14 FHWS
1" Min. Clearance
Req'd for Arm
Door Mortised
1-1/8 Deep for Arm
Floor
15/16
Plate
3/16
Cement Case
4-7/16
With Floor Plate
And Cement Case
1/4 Threshold 15/16
1/2 Threshold 11/16
Door Mortised
1/2
Deep for Arm
3/16
Thres
2-15/16
With Threshold
