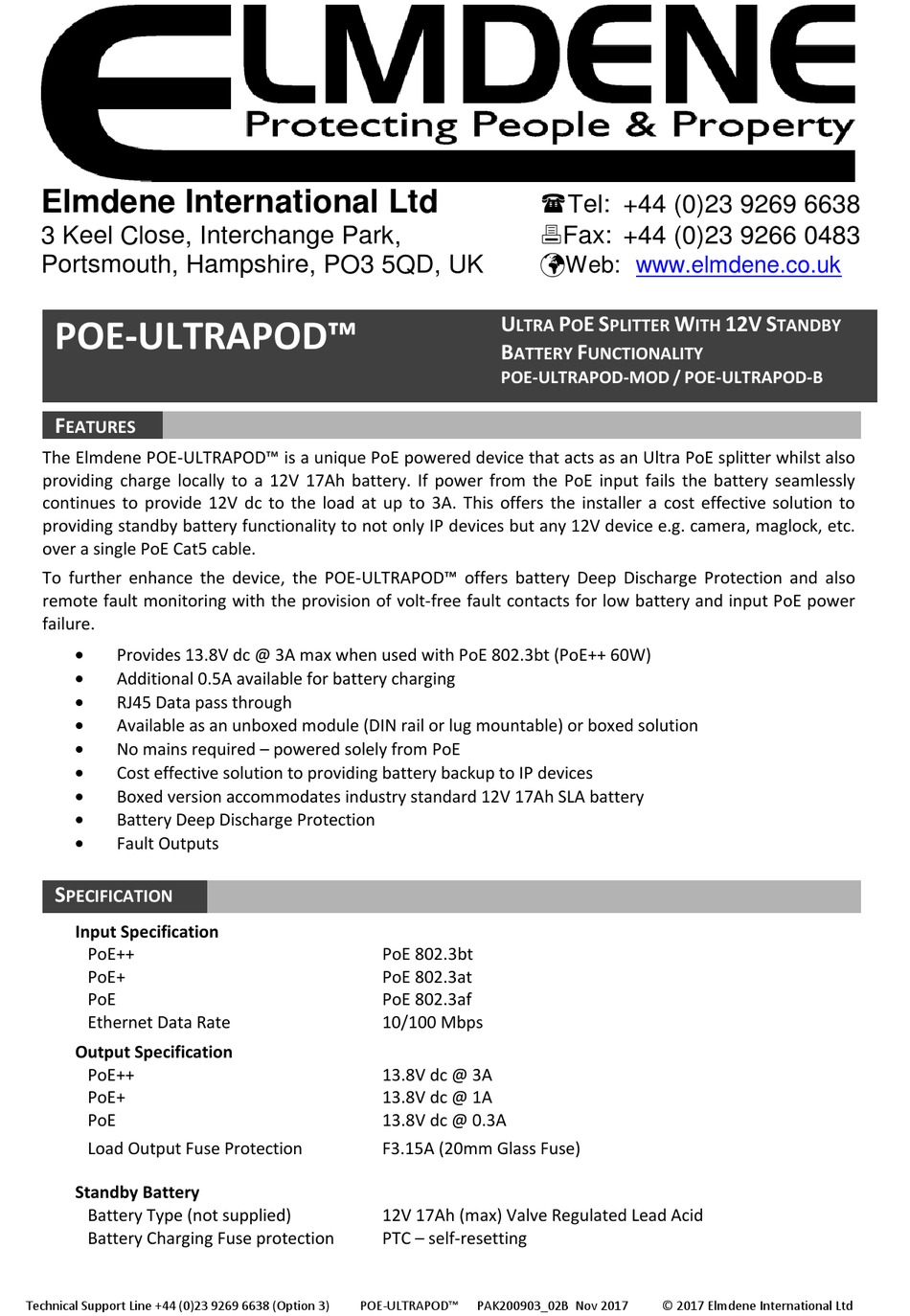

Elmdene POE-ULTRAPOD Series Manual

Elmdene International Ltd
3 Keel Close, Interchange Park,
Portsmouth, Hampshire, PO3 5QD, UK
POE-ULTRAPOD™
F
EATURES
The Elmdene POE-ULTRAPOD™ is a unique PoE powered device that acts as an Ultra PoE splitter whilst also
providing charge locally to a 12V 17Ah battery. If power from the PoE input fails the battery seamlessly
continues to provide 12V dc to the load at up to 3A. This offers the installer a cost effective solution to
providing standby battery functionality to not only IP devices but any 12V device e.g. camera, maglock, etc.
over a single PoE Cat5 cable.
To further enhance the device, the POE-ULTRAPOD™ offers battery Deep Discharge Protection and also
remote fault monitoring with the provision of volt-free fault contacts for low battery and input PoE power
failure.

Provides 13.8V dc @ 3A max when used with PoE 802.3bt (PoE++ 60W)

Additional 0.5A available for battery charging

RJ45 Data pass through

Available as an unboxed module (DIN rail or lug mountable) or boxed solution

No mains required – powered solely from PoE

Cost effective solution to providing battery backup to IP devices

Boxed version accommodates industry standard 12V 17Ah SLA battery

Battery Deep Discharge Protection

Fault Outputs
S
PECIFICATION
Input Specification
PoE++
PoE+
PoE
Ethernet Data Rate
Output Specification
PoE++
PoE+
PoE
Load Output Fuse Protection
Standby Battery
Battery Type (not supplied)
Battery Charging Fuse protection
Technical Support Line +44 (0)23 9269 6638 (Option 3)
U
LTRA
B
ATTERY
POE-ULTRAPOD-MOD / POE-ULTRAPOD-B
PoE 802.3bt
PoE 802.3at
PoE 802.3af
10/100 Mbps
13.8V dc @ 3A
13.8V dc @ 1A
13.8V dc @ 0.3A
F3.15A (20mm Glass Fuse)
12V 17Ah (max) Valve Regulated Lead Acid
PTC – self-resetting
POE-ULTRAPOD™ PAK200903_02B Nov 2017
Tel: +44 (0)23 9269 6638
Fax: +44 (0)23 9266 0483

Web: www.elmdene.co.uk
P E S W
O PLITTER ITH
F
UNCTIONALITY
© 2017 Elmdene International Ltd
12V S
TANDBY
