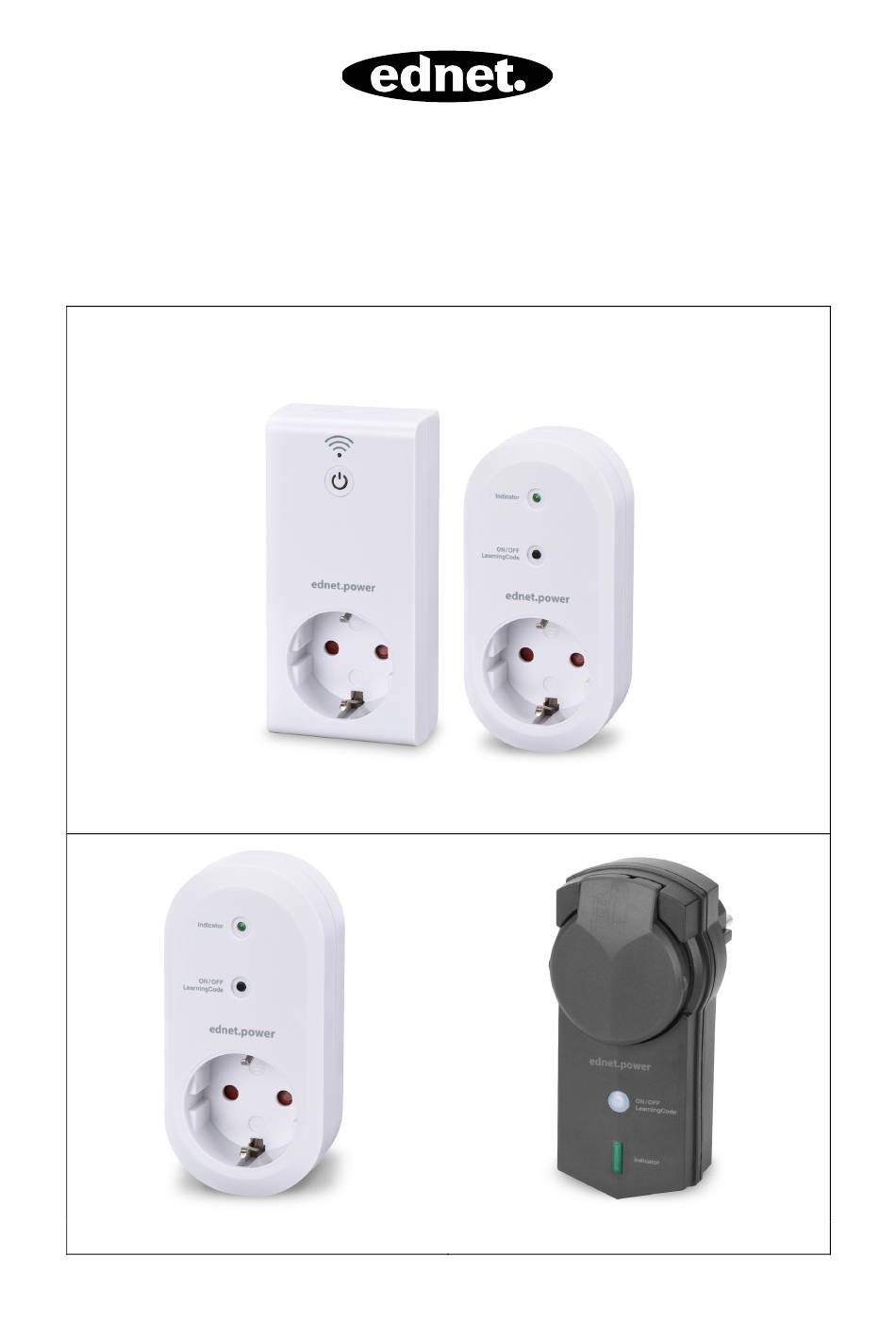

- Page 1 Quick Installation Guide 84290 • 84291 • 84292 84290 – ednet.power Start Kit (1x WiFi Central Unit + 1x Indoor Smart Plug) WiFi Central Unit Indoor Smart Plug 84291 – Indoor Smart Plug 84292 – Outdoor Smart Plug...
-
Page 2: Installation
1. Installation Internet Internet Tablet Router Smartphone WiFi WiFi Central Unit Smart Plug 4 Smart Plug 1 Smart Plug 2 Smart Plug 3 Please make sure that the WiFi Central Units and Smart phones are connected to Internet in order to install and control POWER ON/OFF via Smart Phone anytime anywhere. - Page 3 2.1 Install APP iOS V6.0 and above Android V4.0 and above 1. Search and install 2. Search and install “ednet.power” APP to your “ednet.power” APP to your iOS devices via APP store Android devices via Google Play store 3. After APP installation, this APP icon would be shown on your smart phone.
- Page 4 2.2 Account sign up, log in, find password, change password and main interface 1. For the first time, please 2. Fill in your e-mail address click “Sign up” icon. and Password, then select “Sign Up” icon. ATTN: password is at least 6 words.
- Page 5 3. Fill in your e-mail address 4. Fill in your e-mail address, and Password after Sign then select “OK”, you can Up, then click “Log In” icon. re-set your password according to the link in your Please select “forget mail box. password”...
- Page 6 5. According to the left menu 6. Select “Main page” to show items are “Main page”, the Scene and Master “Settings” and “About” menu device. buttons.
- Page 7 ednet.living@ednet.com 7. Select “Settings” to “Change 8. On “Change Password” Password”; or select “Log menu, you can change your Out” to change other password account.
- Page 8 2.3 How to Add the “WiFi Plug” to connect to your network 1. Plug in the WiFi Power Plug into the power socket and then long press the “Power” 2. Then open the ednet.power APP and press Master button for more than device and go to “+”...
- Page 9 3. You will need to input your 4. You will see “waiting……” WiFi information, and click Then when the red LED on the Start button to connect to WiFi plug changes to blue color, your device. it means the WiFi plug is now connected to Internet via your home network.
- Page 10 5. The added item will appear 7. You can edit the item name to your list of Master device. here, and click “Save” to Then you can control the finish or “Cancel” to exit. Power Plug On or Off as remote control from your smart phone.
- Page 11 8. Long press the device icon on the APP, then you can delete the device by selecting the desired one and press the bin icon to “OK”. Please press “OK” to confirm the deletion.
- Page 12 2.4 Add WiFi Plug to Scene for grouping 1. Click the Scene icon in Main 2. First please create the name page, then you can create a of the Scene and select the scene by pressing the “+” related icon or by creating sign.
- Page 13 3. Then you will see a new 4. Press to enter the new scene created. created Scene for setting 5. Then you can start to group the WiFi plug and RF plugs into this Scene together. First select the WiFi Device from the list to add into your Scene.
- Page 14 6. For the WiFi plug, you can also define Timer and Count Down for scheduled on/off control.
- Page 15 2.5 Add RF device to Scene 1. Enter from the Main page to 2. Select RF switch from the list select the Scene icon you to add your RF Smart Power just created. Plug into the Scene. Then click “Bind”.
- Page 16 3. On the RF Smart Plug side, 4. Then you can enter the RF please long press the “Learn” device now to control power button for 5 seconds. On/Off remotely. The RF Smart Plug would show blinking LED to indicate ready for pairing.
- Page 17 Technical description Wi-Fi Plug Frequency Range WiFi 2412 – 2472 MHz Transmit Power WiFi 15.8 dBm EIRP Hardware Version V1.0 Software Version V1.0 Technical description RF Plug Frequency Range 433.92MHz (Rx) Transmit Power Hardware Version V3.2 Software Version V1804 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
