schroff 23006-920 User Manual

CPCI Bridges 23006-920 & -922
Assembly Instructions & General Information
1. Mechanical Mounting:
but not fixed. The mounting screws of the backplane are not to be tightened until the bridge is
plugged and fully seated!
2. Power Supply of Backplanes:
The bridge is not to be used for bridging power.
The bridge does not isolate the power rails of both backplanes.
GND is connected by a sufficient number of pins in the connector to ensure signal integrity and a common
GND potential on both backplanes.
3. VI/O: There is no need to choose the VI/O voltage for the bridge. The bridge automatically takes the VI/O
voltage of the primary and secondary side.
Both backplanes can be set to different VI/O voltages, e.g. +5V on the primary side and 3,3V on the
secondary side.
4. M66MHz Operation:
Bridge 23006-920 is capable of 33MHz Operation.
Primary CPCI
Backplane
PCI Bus 32 / 64Bit
(AD[nn])
Arbitration (1 Pair)
(REQn# /GNTn#)
PCI Clock (1x)
(CLKn)
CPCI Signals
C/BE[n]; DEVSEL; FRAME; IDSEL;
IRDY; LOCK; M66EN; PAR; REQ64,
ACK64
RST; STOP; TRDY
Interrupts (X= A...D)
(INTX)
Bussed Reserved Signals
BRSVP1A5, BRSVP1B5
IPMB
(SDA, SCL, PWR)
legacy Interrupts
(INTS, INTP)
JTAG Signals
(TRST, TCK, TMS, TDO, TDI)
zero Ohm bridges assembled by default and can be removed/omitted optionally
Schroff GmbH, Aug. 2008; Document#: 73972-082, Rev.001
www.schroff.de
Please make sure that both backplanes are only attached to the horizontal rails,
Both backplanes connected by the bridge are to be powered individually.

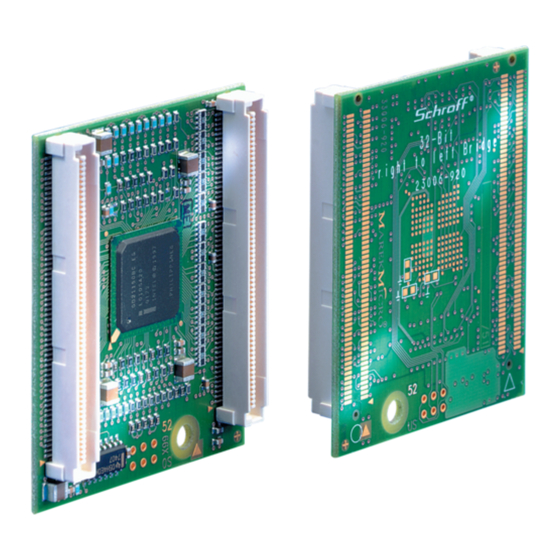

The 64-bit Bridge 23006-922 is capable of 33 and 66 MHz Operation, the 32-bit
PCI to PCI Brigde for
CompactPCI

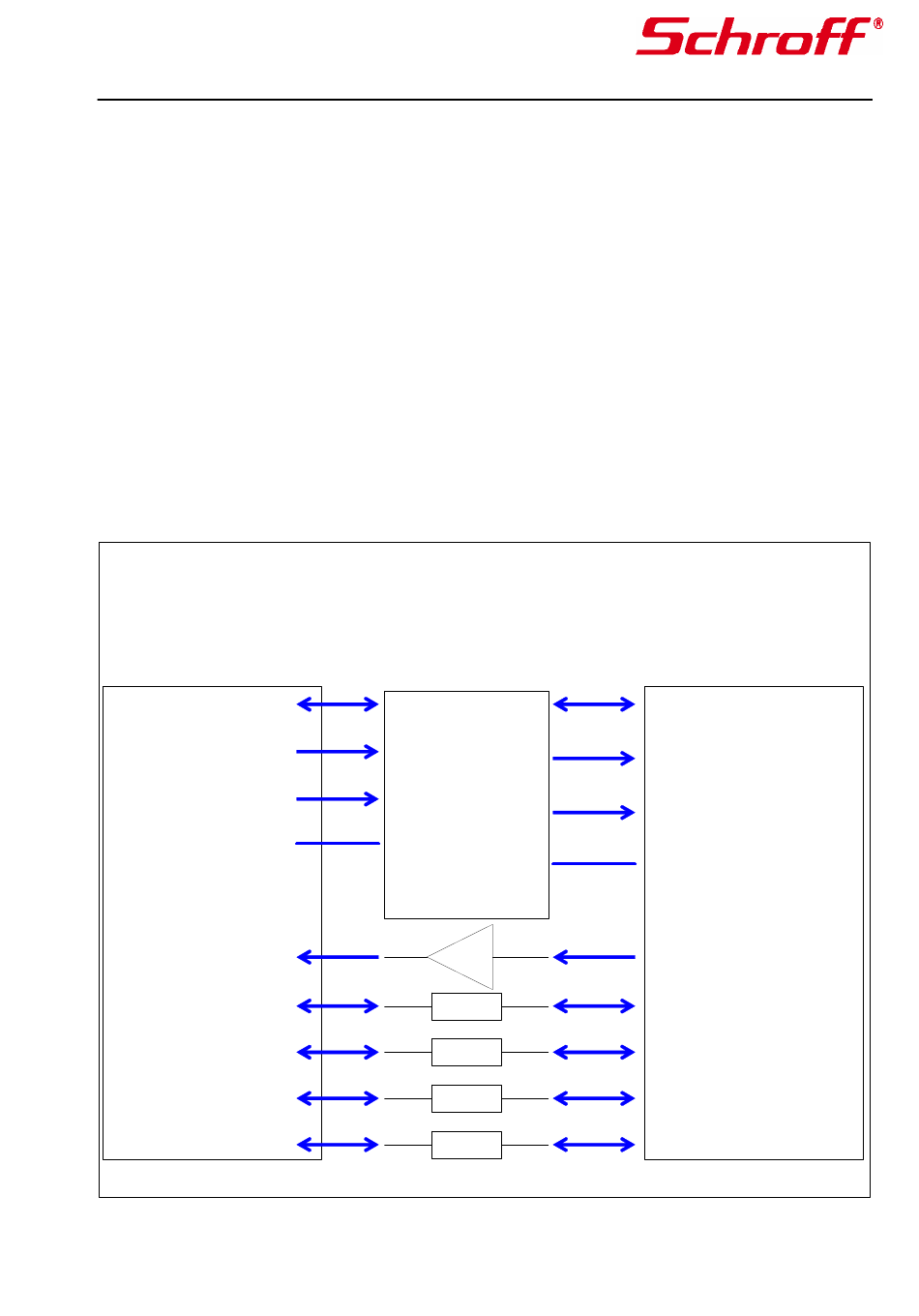

Block wiring diagram
PCI to PCI
Bridge
32Bit
Intel 21150
compatible
64Bit:
Intel 21154
compatible
0 Ohm
0 Ohm
0 Ohm
0 Ohm
Backplanes
7407
User Guide
Secondary CPCI
Backplane
PCI Bus 32 / 64Bit
(AD[nn])
Arbitration (7 Pairs)
(REQn# /GNTn#)
PCI Clock (7x)
(CLKn)
CPCI Signals
C/BE[n]; DEVSEL; FRAME; IDSEL;
IRDY; LOCK; M66EN; PAR; REQ64,
ACK64
RST; STOP; TRDY
Interrupts (X= A...D)
(INTX)
Bussed Reserved Signals
BRSVP1A5, BRSVP1B5
IPMB
(SDA, SCL, PWR)
legacy Interrupts
(INTS, INTP)
JTAG Signals
(TRST, TCK, TMS, TDO, TDI)
Page 1 of 2
