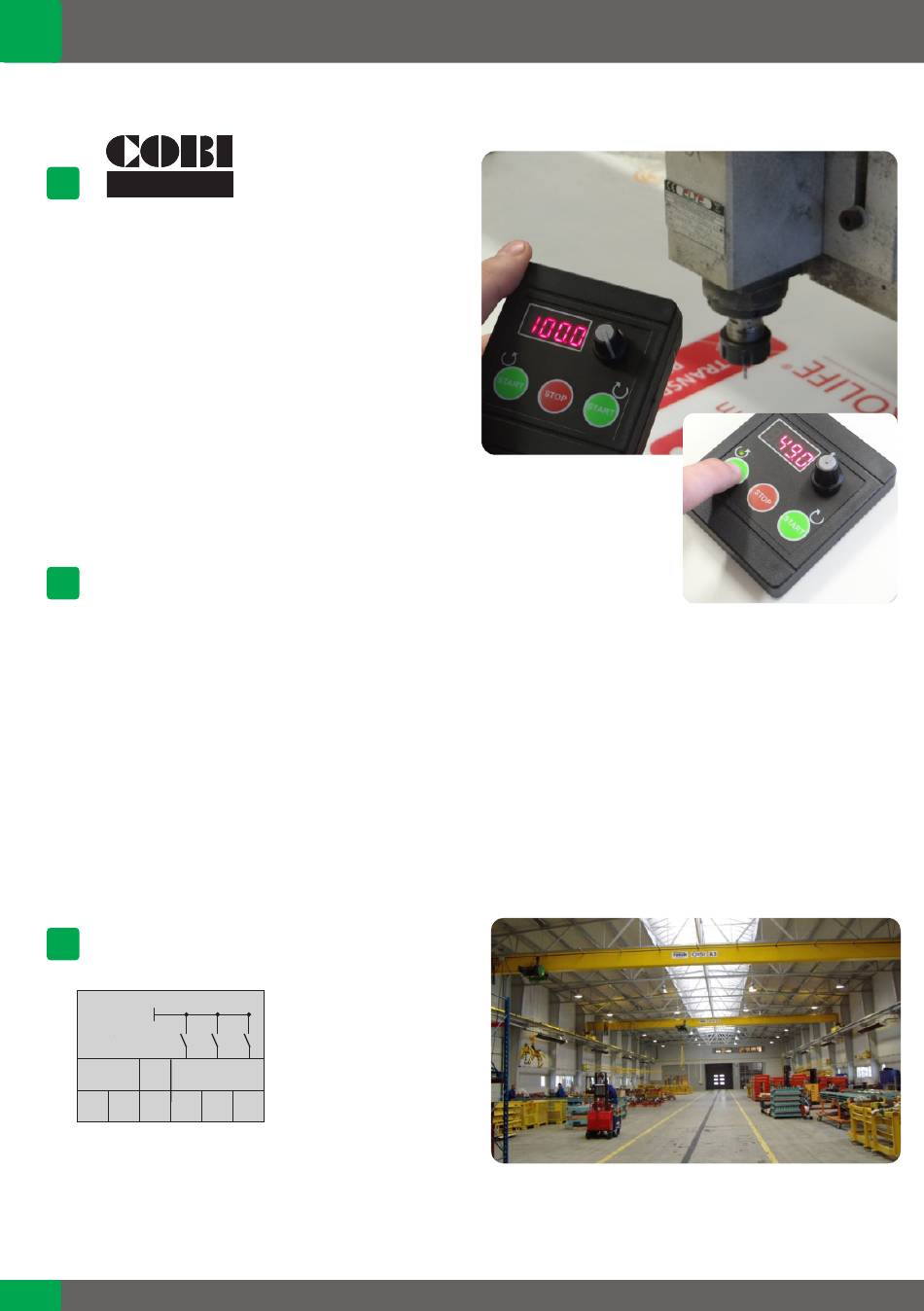

COBI ZAD-ECO-V2 Manual

ELECTRONIC ELECTRONIC
Operator panel is a simple programmable
panel-mounted or panel-manual device
for setting standard signals in control
and adjustment processes: 0...10V.
The range of displayed values can be set
with push-buttons and displayed as 0...9999
with a decimal point placed in any position.
The device features a single-turn potentiometer
Right Start and Left Start push-buttons
with pilot light.

Specifications

Supply voltage: 12...24VDC
Preset signal: 0...10V
Scaled preset value display
Digital outputs to change motor direction
Left Start, Right Start push-buttons with pilot light
Single-turn potentiometer
Operating temperature: -20...60°C
Installation: panel-mounted, panel-manual
Model:
ZAD-ECO-V2

Inputs / Outputs

GND Start Start
Left
Right
Ouput
Supply Digital outputs
0-10V
12-24VDC
-
+
1 2 3 4 5 6
OPERATOR PANELS
Start/
Stop
www.cobi-electronic.com.pl
