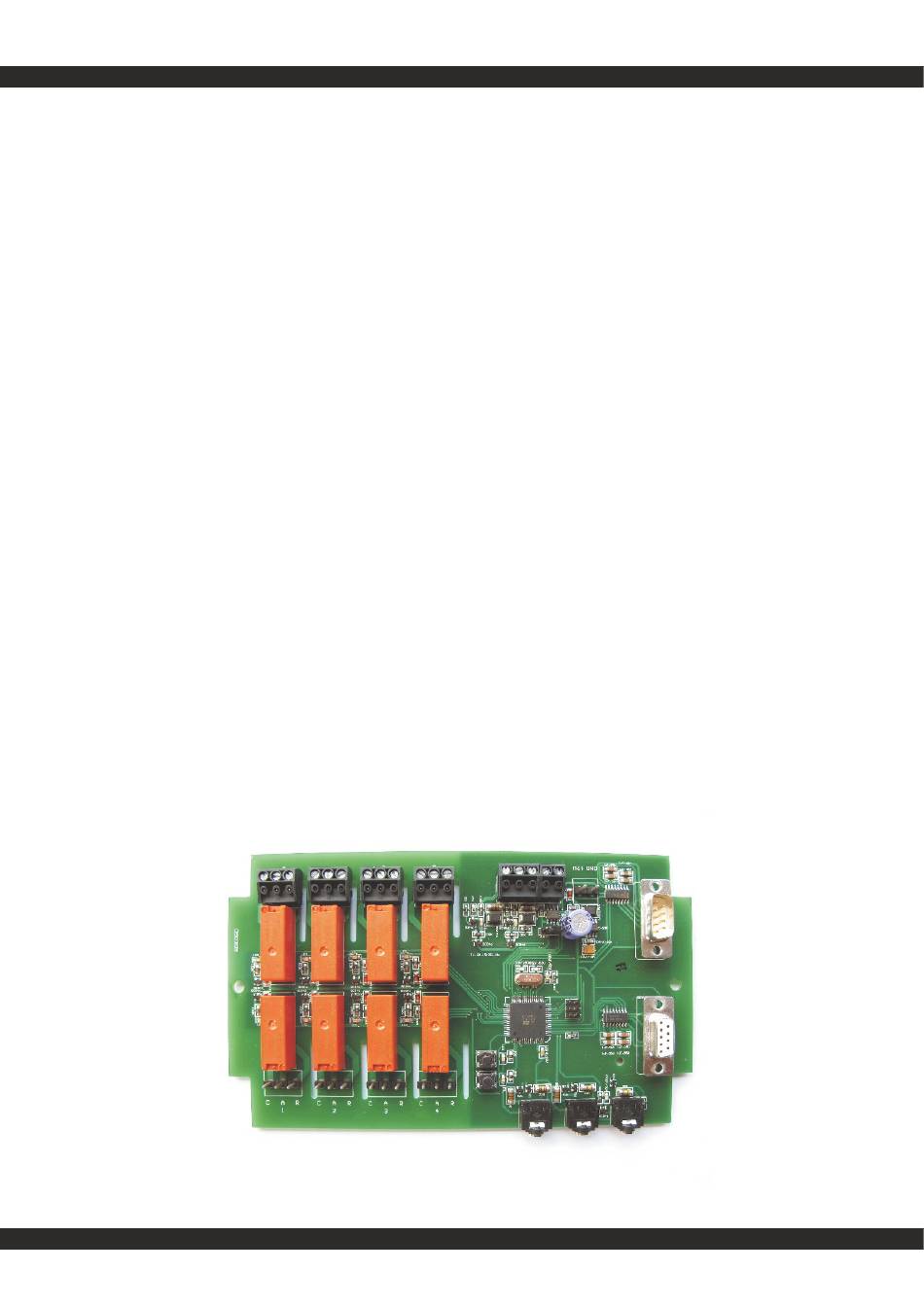

- Page 1 LINTRONIC RELAY 208 LinTronic Operation RELAY 208 Updated: 130622 http://lintronic.dk...
- Page 2 LINTRONIC RELAY 208 Operation by computer Function/Mode: 01-32 up/down and 01-64 on/off RELAY 208 can be controlled by RS232 commands: Use command 039 with a set of parameters to control the relays on-time: 500000000000000000000001 Repeat Units Seconds Minutes Hours Relay Number...
- Page 3 LINTRONIC RELAY 208 Operation by computer Function/Mode: 01-32 up/down and 01-64 on/off You can cascade connect a lot of relay boards and control each relay individually. Adr 3 C A R C A R ComCab-001 Adr 2 C A R...
-
Page 4: Relay Control
LINTRONIC RELAY 208 Operation by Numbers Function/Mode: 01-32 up/down Mode 01-32 was designed for control of curtains and other motors. In this mode the relays are paired together 2 by 2: Motor 1 = Relay 1 and 2 Motor 2 = Relay 3 and 4... - Page 5 LINTRONIC RELAY 208 Operation by Numbers Function/Mode: 01-64 On/Off Mode 01-64 was designed for individual control of the relays. LIGHT x UP controls relay x on (if Active and set for Numbers). LIGHT x DOWN controls relay x off (if Active and set for Numbers).
- Page 6 LINTRONIC RELAY 208 Operation by Colors Function/Mode: 01-32 up/down Mode 01-32 was designed for control of curtains and other motors. In this mode the relays are paired together 2 by 2: Motor 1 = Relay 1 and 2 Motor 2 = Relay 3 and 4...
- Page 7 LINTRONIC RELAY 208 Operation by Colors Function/Mode: 01-64 on/off Mode 01-64 was designed for individual control of the relays. LIGHT RED SHORT controls relay 1 On (if Active and set for Colors). LIGHT RED LONG controls relay 2 On (if Active and set for Colors).
- Page 8 LINTRONIC RELAY 208 Operation by BEO5 Function/Mode: 01-32 up/down and 01-64 on/off The BEO5 will control the relays directly without concidering the mode - provided the relays is Active and set for BEO5. 1 2 3 C A R C A R...
- Page 9 BEO5 includes some new Control and Function commands. With a 2-command combination, you can instruct the RELAY 208 to activate a specific relay for a specific time. Example: CONTROL 5 - FUNCTION 20 - activates relay no. 5 for 20 seconds.
- Page 10 LINTRONIC RELAY 208 Operation by BEO5 Function/Mode: 01-32 up/down and 01-64 on/off CONTROL COMMANDS FUNCTION COMMANDS Control 0 = All relays Function 1 = On for 1 second Control 1 = Relay 1 Function 2 = On for 2 seconds...
- Page 11 First Digital Output 1 becomes in-activate (5 volt), then a programmable delay expires and finally the Digital Output 2 becomes in-active (5 volt). The RELAY 208 can be configured to react to these digital signals and activate the relays to control light systems, a projector or screen lift, etc. etc.
- Page 12 LINTRONIC RELAY 208 BEOLIVING BeoSystem Quick-adjust the on-time for 1 2 3 relay 3, 4, 7, 8 (default 3 seconds): - activate and hold switch 2 - count the seconds (blinks) - Release switch 2 C A R C A R...
