Evo EVent 48E FMS Cleaning Manual

Filter & cooking surface
Hide thumbs Also See for EVent 48E FMS:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
FILTER & COOKING SURFACE
CLEANING GUIDE

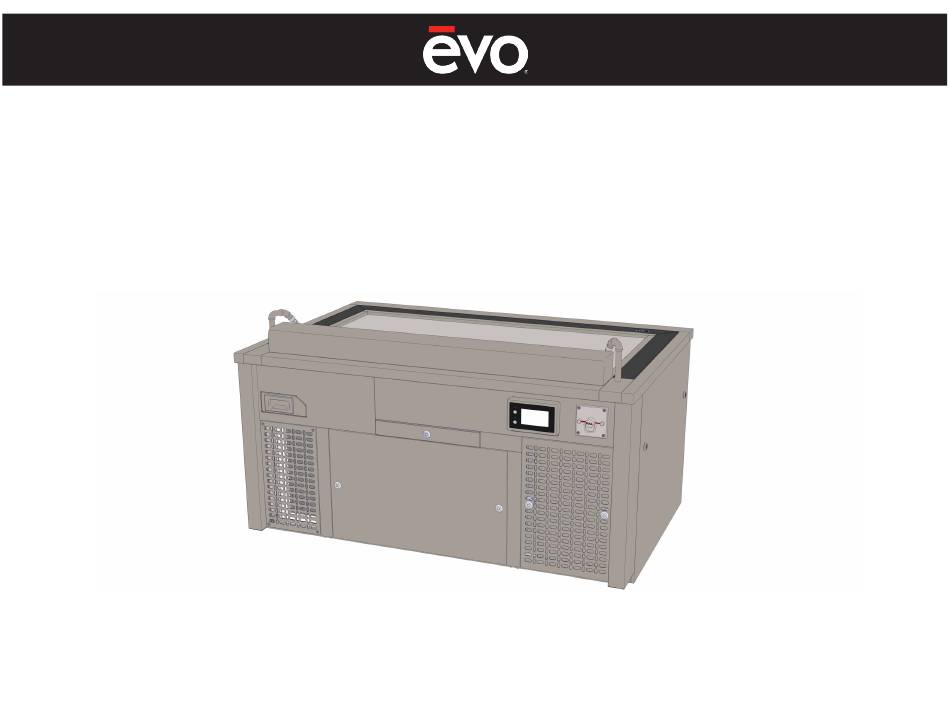

EVent 48E FMS
Evo, Inc.
20560 SW 115th Ave., Tualatin, Oregon 97062/ Ph 866.626.1802 Fax 503.213.5869 sales@evoamerica.com
Evo is protected under U.S. Patents 6,189,530; 6,488,022; 7,926,417; 7,825,353; 8,530,795; D636,630; 9,903,595; 9,897,328 and U.S. Patents Pending. Evo is a registered trademark of Evo, Incorporated. ©2001 - 2019 All rights reserved.
