Install the brackets on your F60 Countryman

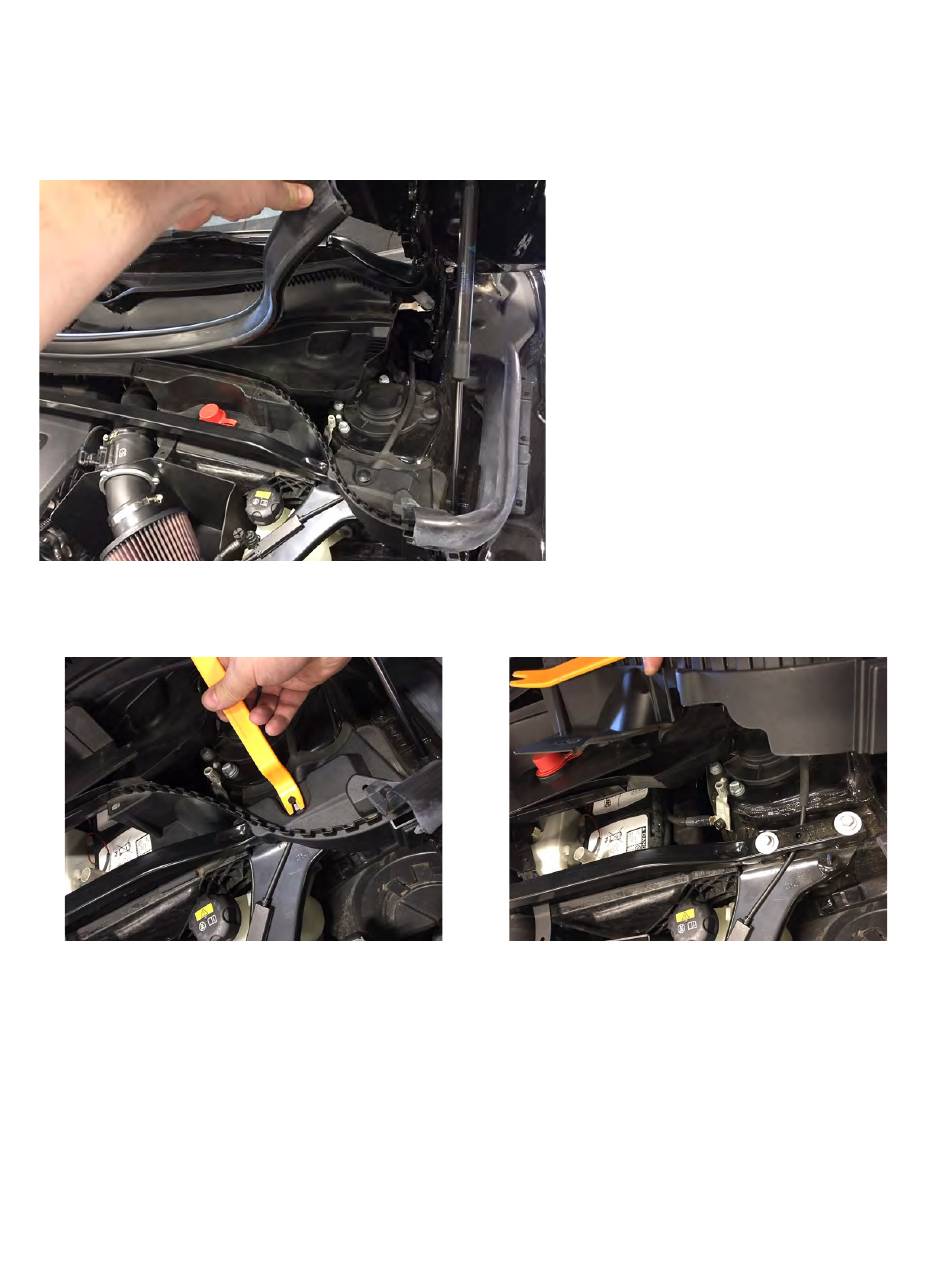

1. First things first, we need to disconnect the negative battery cable to ensure we aren't working with any live
circuits. To get to the battery, we've got to get some stuff out of the way. Start by pealing up the rubber seal
that separates the rain drainage area from the rest of the engine compartment.
2. Once the seal is removed we can also remove the "s" shaped plastic piece, this will help with wire routing
down the line. Use the trim panel tool to pop the clip, and then the whole thing will come off.
3. Now we can access the battery box lid. It is secured by 2 8mm screws. Remove the lid and disconnect
the negative battery terminal by loosening the 10mm bolt on the clamp. Once you've disconnected the
cable, it's a good idea to secure it to the support bar to make sure it doesn't come into contact with the
terminal while you're working.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Countryman F60

  • Page 1 Install the brackets on your F60 Countryman 1. First things first, we need to disconnect the negative battery cable to ensure we aren't working with any live circuits. To get to the battery, we've got to get some stuff out of the way. Start by pealing up the rubber seal that separates the rain drainage area from the rest of the engine compartment.
  • Page 2 The next task is to get access to the mou The next task is to get access to the mounting points for the bracket. Ultimately the brackets with nting points for the bracket. Ultimately the brackets with protrude through the grill at the two points shown below: protrude through the grill at the two points shown below: 4.
  • Page 3 5. With the screws out, gently pull the grill forward slightly to reveal several tabs that secure the bottom to the bumper. To disengage the clips, push down on the tab while wiggling the grill outward. Once the grill is out, you can now see the v-brace that our brackets will attach to. There is a left side and right side bracket, so take note of the orientation and placement of the brackets below: 6.
  • Page 4 7. The positioning of the brackets is important, so take some time now to get the brackets mounted level, and centered on the car. The inside edges of the light tab should be 21" apart. This should result in the tabs resting about an inch off of the top surface of the bumper.
