ROOF PITCH:
Turbine fit roofs with 3/12 to 12/12 pitches.

BEFORE YOU INSTALL -

power fans). Install adequate intake ventilation for a Balanced System (50% Exhaust & 50% Intake) in accordance with state and local code requirements.
Intake vents must be installed low at the roof's edge or in the soffit/undereave. Products such as Air Vent's Continuous Soffit Vent, Vented Drip Edge,
Undereave Vents and The Edge™ Vent provide the necessary intake ventilation for optimum performance.
WARNING -
T his product has sharp metal edges that can cut your hands. Wear canvas gloves during installation and handling. Use care when
handling unit to prevent damage to the precision-balanced rotor head. This Turbine is for ventilating purposes only and under NO circumstances should it
be installed on a chimney or other hot stack or vent as a draft inducer.

Choosing the Location of the Turbine Ventilator

PLACEMENT GUIDE FOR TWO TURBINES

PRODUCT FEATURES:

Maintenance-free top and bottom
dual bearing system
All aluminum construction
21 vanes, all riveted top and bottom
High-quality polyproplene bracing system
• rust-free and longer-lasting
• internal spider adds stability
For warranty information refer to enclosed document or visit www.airvent.com
NOTE: Air Vent's written warranty for this product will be invalid in any instance in which the product was not property installed in accordance with the instructions.
CUSTOMER SERVICE:
If you have any questions or require special
installation assistance, call our toll-free number
8 a.m. - 5 p.m. (C.S.T.) Monday - Friday
1-800-AIR-VENT (247-8368)

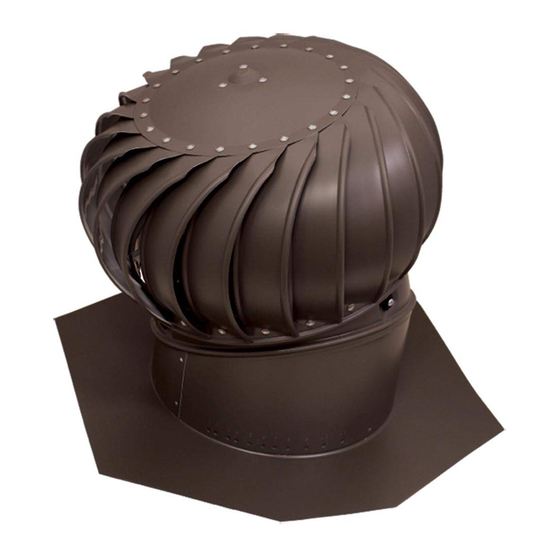

Turbine Ventilator With Adjustable Base
Install only one type of exhaust vent and remove or plug any existing vents (gable vents, roof louvers, ridge vents and
END VIEW OF HOUSE
Made in the U.S.A.
Installation Instructions
PLACEMENT GUIDE FOR THREE TURBINES

TOOLS REQUIRED:

• Phillips screwdriver • Carpenter's level
• Putty knife • Keyhole or sabre saw
• Utility knife • Hammer
• Drill • Ruler
