EZ-Charge Programming Instructions
EZ-Charge V2
Multi-Channel Remote
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions
[1] This device may not cause harmful interface, and
[2] This device must accept any interference received, including interference that may cause undesired op-
eration.
Package Contents

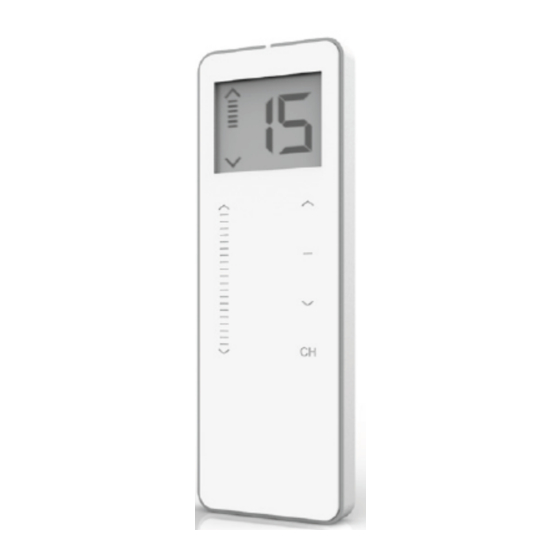

1 x 15 channel remote
1 x magnetic holder including wall fixing screws
1 x 3V CR2450 battery
For Motorization Technical Support call 877-548-0612
