AirgoLift
Wheel Lifting Device for Wheel Balancers
(Translation of the Original Operating Instructions)
GEB 001 166
• Kokenhorststrasse 4 • D-30938 Burgwedel • Tel. +49 5139/8996-0 • Fax +49 5139/8996-222
HAWEKA AG
Operating Instructions
• www.haweka.com • info@haweka.com
Item No.
916 000 017
Item No.
916 000 021
Advertisement
Table of Contents
Summary of Contents for HAWEKA AirgoLift
- Page 1 Item No. 916 000 017 Item No. 916 000 021 Operating Instructions (Translation of the Original Operating Instructions) GEB 001 166 • Kokenhorststrasse 4 • D-30938 Burgwedel • Tel. +49 5139/8996-0 • Fax +49 5139/8996-222 HAWEKA AG • www.haweka.com • info@haweka.com...
-
Page 2: Table Of Contents
Spare Parts ......................... 15 Pneumatic Diagram ....................17 EC Declaration of Conformity ..................18 Last updated: November 2019 Subject to technical modifications. Version 2.0 Figures: HAWEKA AG / D-30938 Burgwedel Reproduction in any form is not permitted. HAWEKA - AirgoLift... -
Page 3: General Safety Instructions
Wheel Lifting Device AirgoLift 1. General Safety Instructions The AirgoLift has been designed and built after careful selection of applicable harmonised standards. Thus, it conforms to the current state-of-the-art technology and provides the highest degree of safety during operation. Structural modifications to the wheel lifting device must... -
Page 4: Product Description

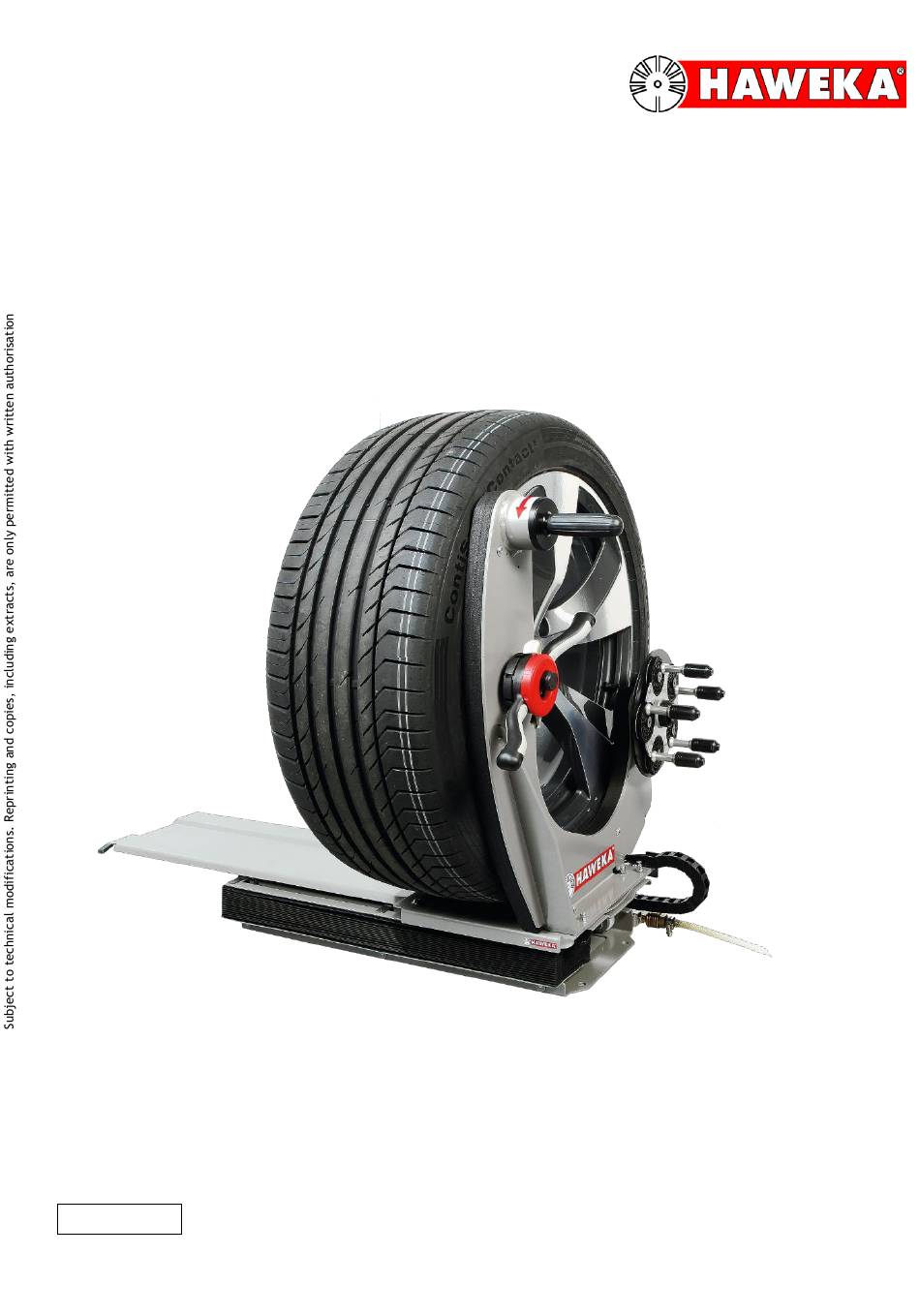

70 kg and a max. diameter of 900 mm (36 inch). When correctly used, the wheel lifting device AirgoLift enables a wheel to be correctly clamped on the shaft of the wheel balancer. -
Page 5: Technical Data
Wheel Lifting Device AirgoLift 2.3 Technical Data 6 – 8 bar Compressed air supply Operating pressure 7 bar Max. lifting height 480 mm Max. horizontal travel 720 mm Max. lifting weight 70 kg Max. wheel diameter 36 inch Weight: 35 kg (net) 2.4 Dimensions... -
Page 6: Description Of Device
(Fig. 1) Compressed air connection The AirgoLift comprises of a stable base frame that must be firmly attached to the floor by bolts (refer to Point 3.3 Page 11) The lifting unit is raised and lowered using a pneumatic bellow cylinder. During the lifting procedure, the safety blind is also automatically raised. -
Page 7: Installation And Commissioning
3.1 Assembly of the AirgoLifts The AirgoLift is already preassembled sot that only the guide bar must be installed. For assembly, a commercial 10 mm open-ended or ring spanner is required. For easy and quick assembly, we recommend to first leave the AirgoLift in the packaging and to install the guide bar on the shifting plate. - Page 8 Wheel Lifting Device AirgoLift The guide bar is already connected to the compressed air hoses and drag chain on the base frame. Thus, it cannot be lifted freely from the packaging. Align the guide bar and place on the 4 stud bolts on the carriage.
-
Page 9: Function Check
Wheel Lifting Device AirgoLift After the AirgoLift is completely assembled and stands on the floor, the compressed air supply can be connected using a commercial, standard coupling. If an air pressure of more than 8 bar is present at the supply line,... -
Page 10: Position In Front Of The Wheel Balancer
If changes regarding the lifting speed are required, refer to from Point 5, Maintenance and Care. 3.3 Position in front of the wheel balancer The AirgoLift must be positioned so that the contact surface is central to the shaft of the wheel balancer. (Fig. 7 / 8) (Fig. - Page 11 230 and 280 mm. (Fig. 9) When the AirgoLift is correctly positioned, it must be attached to the floor by bolts through the 4 holes in the base frame. (Fig. 10) (Fig. 10) In order to ensure stable attachment to the floor, bolts and dowels are included in the scope of delivery.
-
Page 12: Application And Operation
Wheel Lifting Device AirgoLift 4. Application and Operation Safety instructions during operation. When the lifting equipment is lowered and returns to the floor position, there is a risk of entrapment. During lowering, make sure that distance to the moving parts is maintained. -
Page 13: Maintenance And Care
Wheel Lifting Device AirgoLift 5. Maintenance and Care 5.1 General Care Use a slightly moistened cloth and clean the lifting device at regular intervals, depending on the degree of contamination of the device and remove contamination and sand. ... -
Page 14: Troubleshooting And Their Causes
Wheel Lifting Device AirgoLift 6. Troubleshooting and their Causes Operators may only redress errors that are clearly the result of operating or maintenance errors! Error Possible causes Troubleshooting Lifting equipment does not No or insufficient compressed Check the operating pressure... -
Page 15: Spare Parts
Wheel Lifting Device AirgoLift 7. Spare Parts AirgoLift: Position. Part No. Description DU VE10031 Compressed air connection DU BA146074 Bellows cylinder D03771 18025 Sealing ring rubber 916 001 094 Safety blind 916 001 120 Drag chain 916 001 093 Rubber tyre system on the transfer carriage... - Page 16 Wheel Lifting Device AirgoLift AirgoLift control unit: Position. Part No. Description 916 001 119 Turning handle DU VE110032 Control valve 900e008 363 1 piece locating pin for clamping device (2 x required) D73802 08020 1 x oval-head screw D01440 00008...
-
Page 17: Pneumatic Diagram
Wheel Lifting Device AirgoLift 8. Pneumatic Diagram HAWEKA - AirgoLift... -
Page 18: Ec Declaration Of Conformity
Wheel Lifting Device AirgoLift 9. EC Declaration of Conformity Haweka AG Kokenhorststrasse 4 30938 Burgwedel Germany herewith declare that the following device described conforms to the EC Directive in its design and construction, as well as in the design as introduced to the market. - Page 19 Wheel Lifting Device AirgoLift HAWEKA - AirgoLift...
- Page 20 HAWEKA AG Kokenhorststrasse 4 30938 Burgwedel Tel. +49 5139 8996-0 Fax +49 5139 8996-222 www.haweka.com Info@haweka.com...
