Omega National EVO Manual

Tall pull-out wood pantry
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

EVO Tall Pull-Out Wood Pantry
EVO Tall Pull-Out Wood Pantry
• Always read the instructions completely and carefully before beginning assembly.
• Remove and check contents for damage and/or missing parts. Keep the original cartons and
packing materials, which are required for any authorized adjustment by our dealers.
• These instructions are for reference only. Make sure installation procedures comply with all
applicable building codes in your area.

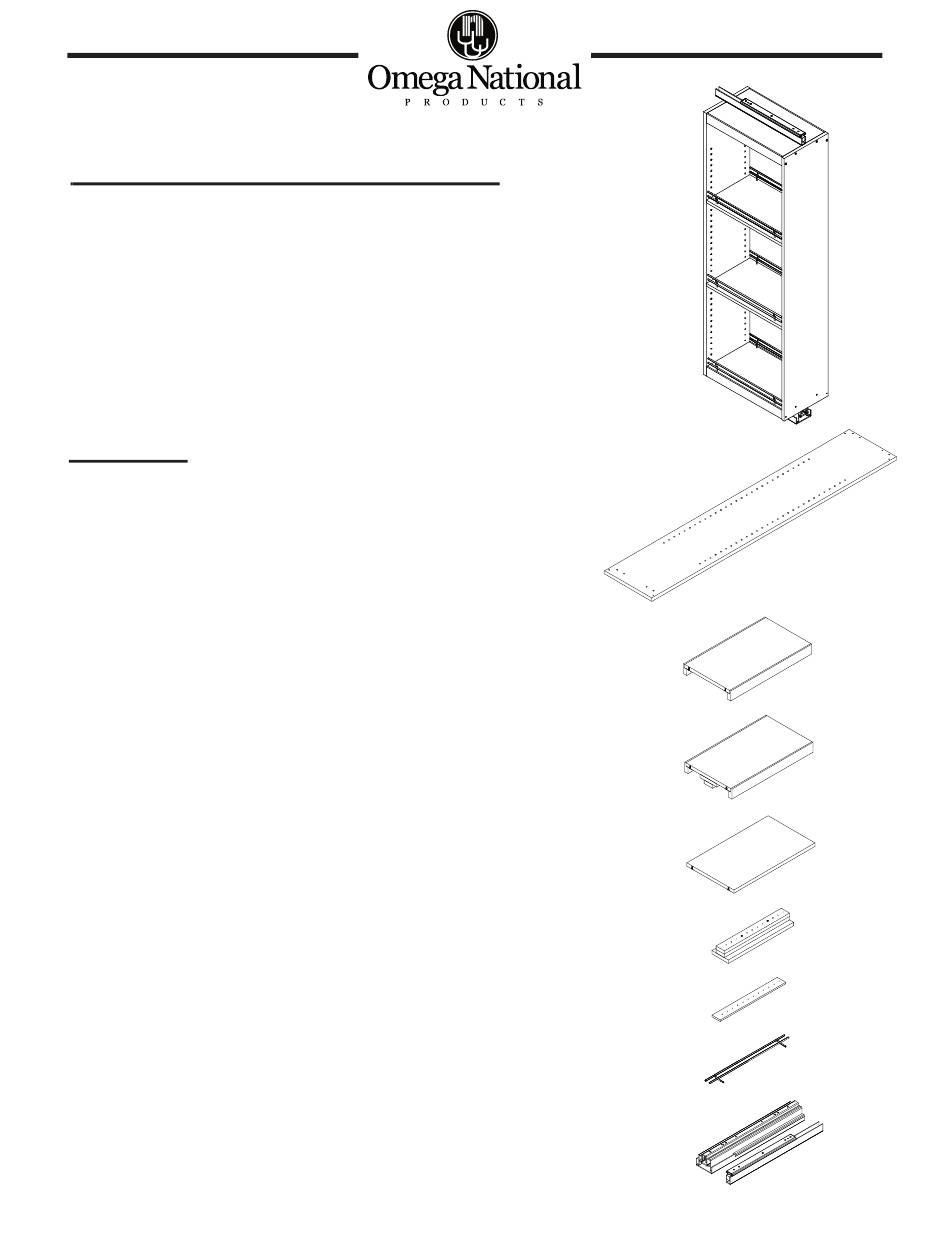

Parts List

2 each:
Drilled 59.50" Front/Back Panels
1 each:
Top 19.75"
1 each:
Bottom 19.75"
2 each:
Shelves 19.75"
1 each:
Top Spacer Block Assembly 15.75"
1 each:
Spacer Shim .25" x 15.75"
6 each:
Wire Fences
1 each:
Fulterer Slide

Important Notes

Form OME-074, 01/2009
©Omega National Products
©Omega National Products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO and is the answer not in the manual?

Questions and answers

Summary of Contents for Omega National EVO

  • Page 1: Parts List

    EVO Tall Pull-Out Wood Pantry EVO Tall Pull-Out Wood Pantry Important Notes • Always read the instructions completely and carefully before beginning assembly. • Remove and check contents for damage and/or missing parts. Keep the original cartons and packing materials, which are required for any authorized adjustment by our dealers.
  • Page 2 Assembly Instructions Assembly Instructions Please note that the EVO Pull-Out Pantry unit can be installed in either a Face Frame cabinet design that utilizes standard ¾” thick face frames (rails and stiles), or it can be installed in Fra- meless Cabinets.
  • Page 3 Verify the slide is perpendicular to the front face rail and is cen- tered in the cabinet. Now you are ready to measure the actual opening for trimming the Pull-Out Pantry to size. Form OME-074, 01/2009 ©Omega National Products ©Omega National Products...
  • Page 4 Place one of the Pull-Out Pantry Front/Back Panels on its edge on a fl at surface and engage the dowels and plastic “wedge fi x” fasteners located in the Top and Bottom Shelves. Form OME-074, 01/2009 ©Omega National Products ©Omega National Products...
  • Page 5 Front/Back Panels that have the 32mm spaced holes and clamp them into place. Drill through the four screw holes located by drilling through the Front/ Back Panels using an 5/32” drill bit Form OME-074, 01/2009 ©Omega National Products ©Omega National Products...
  • Page 6 Guide positioned against the inside edge of the Front Panel. This U-Profi le Guide is attached to the bottom of the Pull-Out Pantry unit with #8 X 5/8 Pan Head Phillips Screws in three locations. Form OME-074, 01/2009 ©Omega National Products ©Omega National Products...
  • Page 7 Side to Side Adjustment (Also holds Pull-Out to the Slide) Vertical Adjustment 1010 Rowe St. Elkhart, IN 46516 (574) 295-5353 Fax (800) 367-3329 Form OME-074, 01/2009 www.omeganationalproducts.com ©Omega National Products ©Omega National Products...
