DESCRIPTION
The Toa WE-2 Expanding Kit increases the number of input of the Toa W-906A
and W-912A IN-WALL amplifiers. Two more module input ports can be set up
by inserting this expanding kit into amplifier's user's blank space, thus
allowing the W-906A and W-912A amplifiers to have up to 8 inputs. It is
possible to control the sound volume of an individual input . The WE-2 can
accommodate all Toa modules for the 900 Series Amplifiers.
CAUTION: These servicing instructions are for use by qualified personnel only.
To avoid electric shock do not perform any servicing other than that
contained in the Operating Instructions unless you are qualified to
do so. Refer all servicing to qualified service personnel.

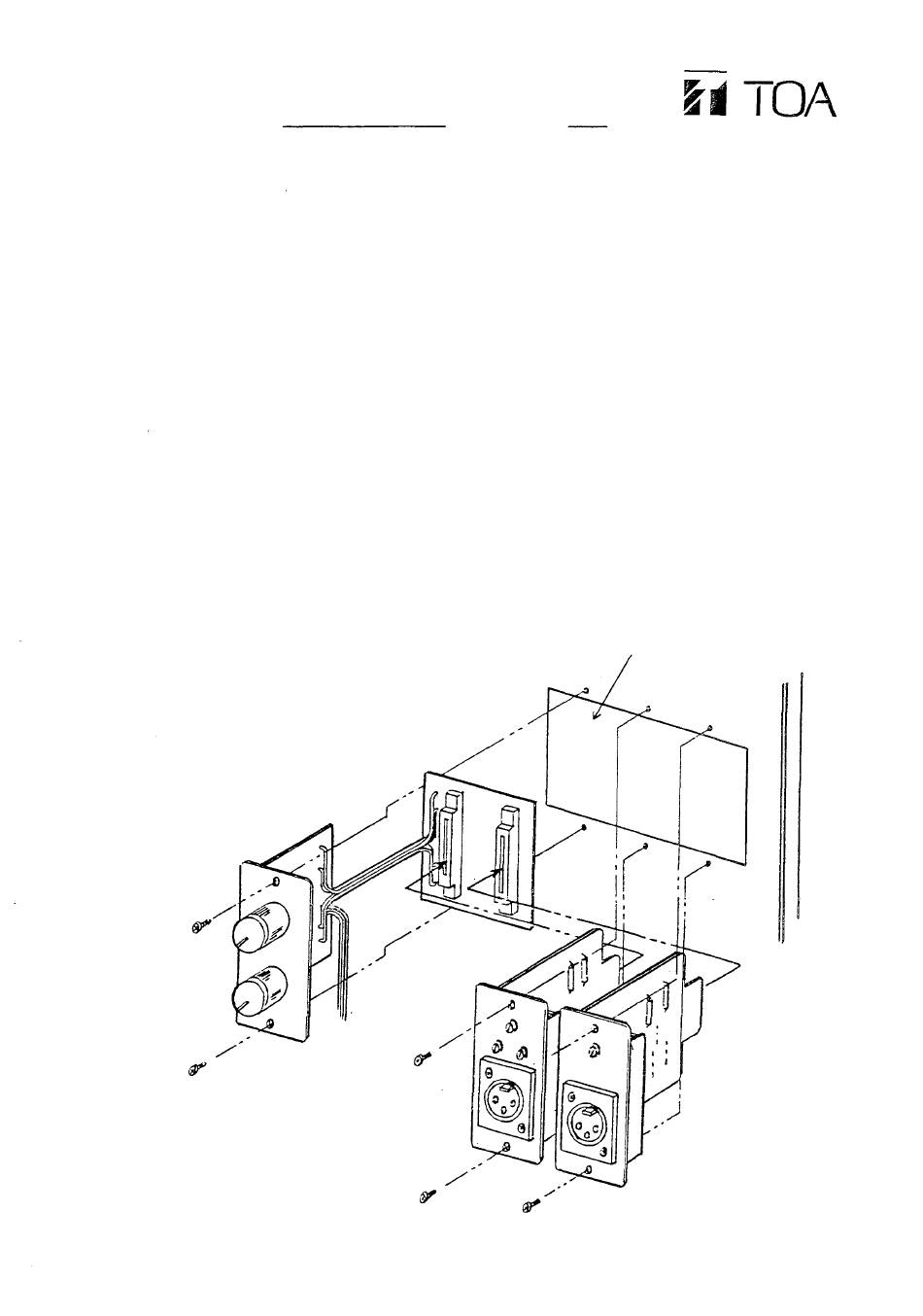

MOUNTING THE WE-2 and INPUT MODULES
1. Remove a front cover.
2. Open a hinged chassis by unscrewing screws holding the chassis to a
back box.
3. Remove a blank panel.
4. Install an expanding kit in a user's blank space.
5. Mount the input module(s) inserting
tightly its card edge into a connector
of the WE-2.
WE-2
Toa Expanding kit
Input
Modules
model
WE-2
User's Space
Advertisement
Table of Contents
Related Manuals for Toa WE-2
Summary of Contents for Toa WE-2
- Page 1 WE-2 DESCRIPTION The Toa WE-2 Expanding Kit increases the number of input of the Toa W-906A and W-912A IN-WALL amplifiers. Two more module input ports can be set up by inserting this expanding kit into amplifier's user's blank space, thus allowing the W-906A and W-912A amplifiers to have up to 8 inputs.
- Page 2 Brown CONNECTION See an illustration given below. R210 1k ohms Solder the lead wires to connect. After connection, bind all the lead wires together by means of a cord binder attached to the kit. CAUTION: Be sure to avoid improper lead wire connections.
