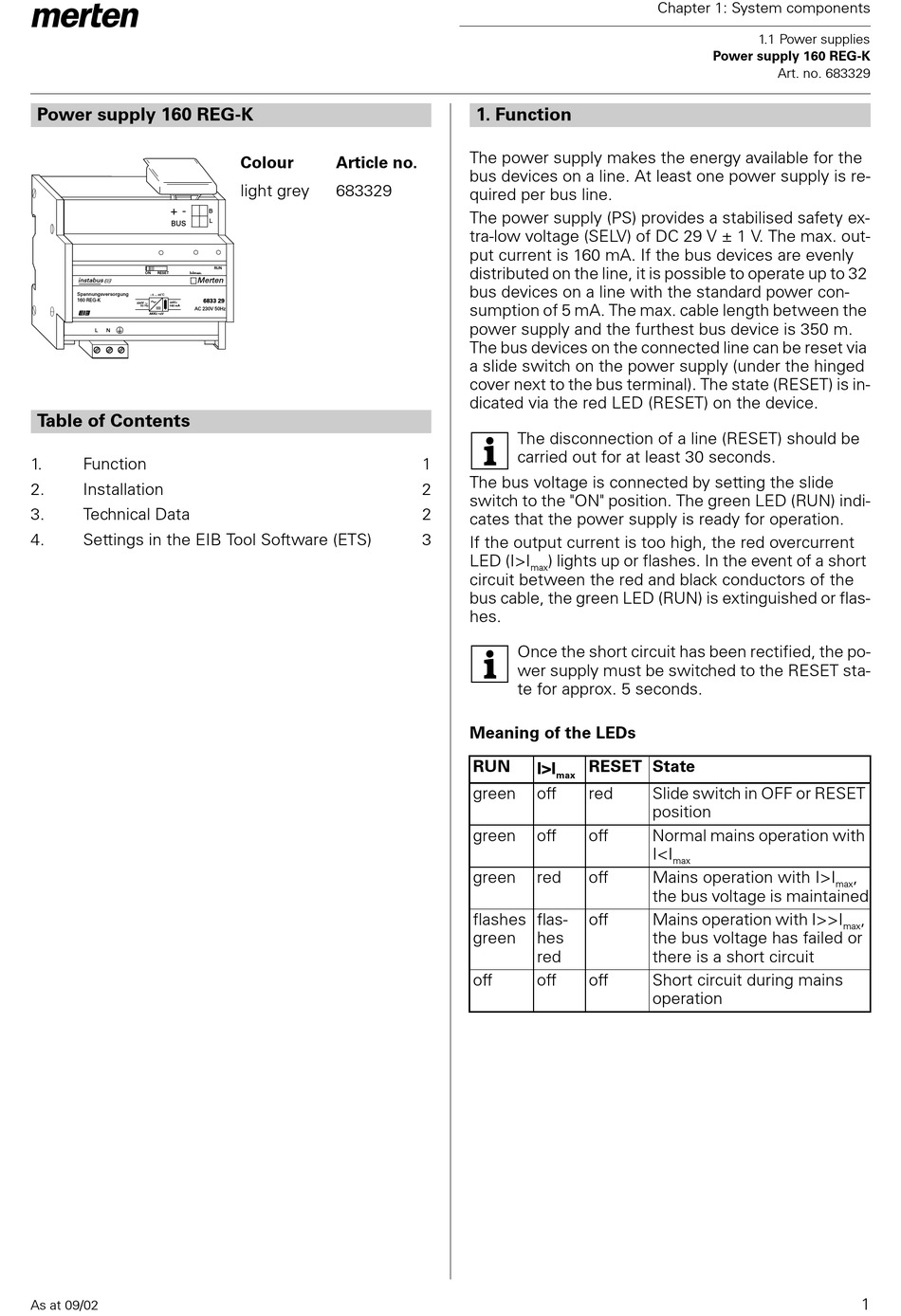

merten 160 REG-K Manual

Power supply 160 REG-KChapter 1:System componentsArt. no.683329As at 09/021.1Power supplies
Power supply 160 REG-K
+ -
BUS
ON RESET I>Imax.
instabus Merten
Spannungsversorgung
- 5 ... 45˚C
160 REG-K
29V=
230V
50 Hz 160 mA
AC 230V 50Hz
AKKU 12V
L N
Table of Contents
1. Function
2. Installation
3. Technical Data
4. Settings in the EIB Tool Software (ETS)
As at 09/02
Colour Article no.
light grey 683329
B
L
RUN
6833 29
1. Function
The power supply makes the energy available for the
bus devices on a line. At least one power supply is re-
quired per bus line.
The power supply (PS) provides a stabilised safety ex-
tra-low voltage (SELV) of DC 29 V ± 1 V. The max. out-
put current is 160 mA. If the bus devices are evenly
distributed on the line, it is possible to operate up to 32
bus devices on a line with the standard power con-
sumption of 5 mA. The max. cable length between the
power supply and the furthest bus device is 350 m.
The bus devices on the connected line can be reset via
a slide switch on the power supply (under the hinged
cover next to the bus terminal). The state (RESET) is in-
dicated via the red LED (RESET) on the device.
| The disconnection of a line (RESET) should be
carried out for at least 30 seconds.
1
The bus voltage is connected by setting the slide
2
switch to the "ON" position. The green LED (RUN) indi-
2
cates that the power supply is ready for operation.
3
If the output current is too high, the red overcurrent
LED (I>I ) lights up or flashes. In the event of a short
max
circuit between the red and black conductors of the
bus cable, the green LED (RUN) is extinguished or flas-
hes.
| Once the short circuit has been rectified, the po-
wer supply must be switched to the RESET sta-
te for approx. 5 seconds.
Meaning of the LEDs
RUN RESET State
I>I
max
green off red
green off off
green red off
flashes flas- off
green hes
red
off off off
Chapter 1: System components
1.1 Power supplies
Power supply 160 REG-K
Art. no. 683329
Slide switch in OFF or RESET
position
Normal mains operation with
I<I
max
Mains operation with I>I
the bus voltage is maintained
Mains operation with I>>I
the bus voltage has failed or
there is a short circuit
Short circuit during mains
operation
,
max
,
max
1
