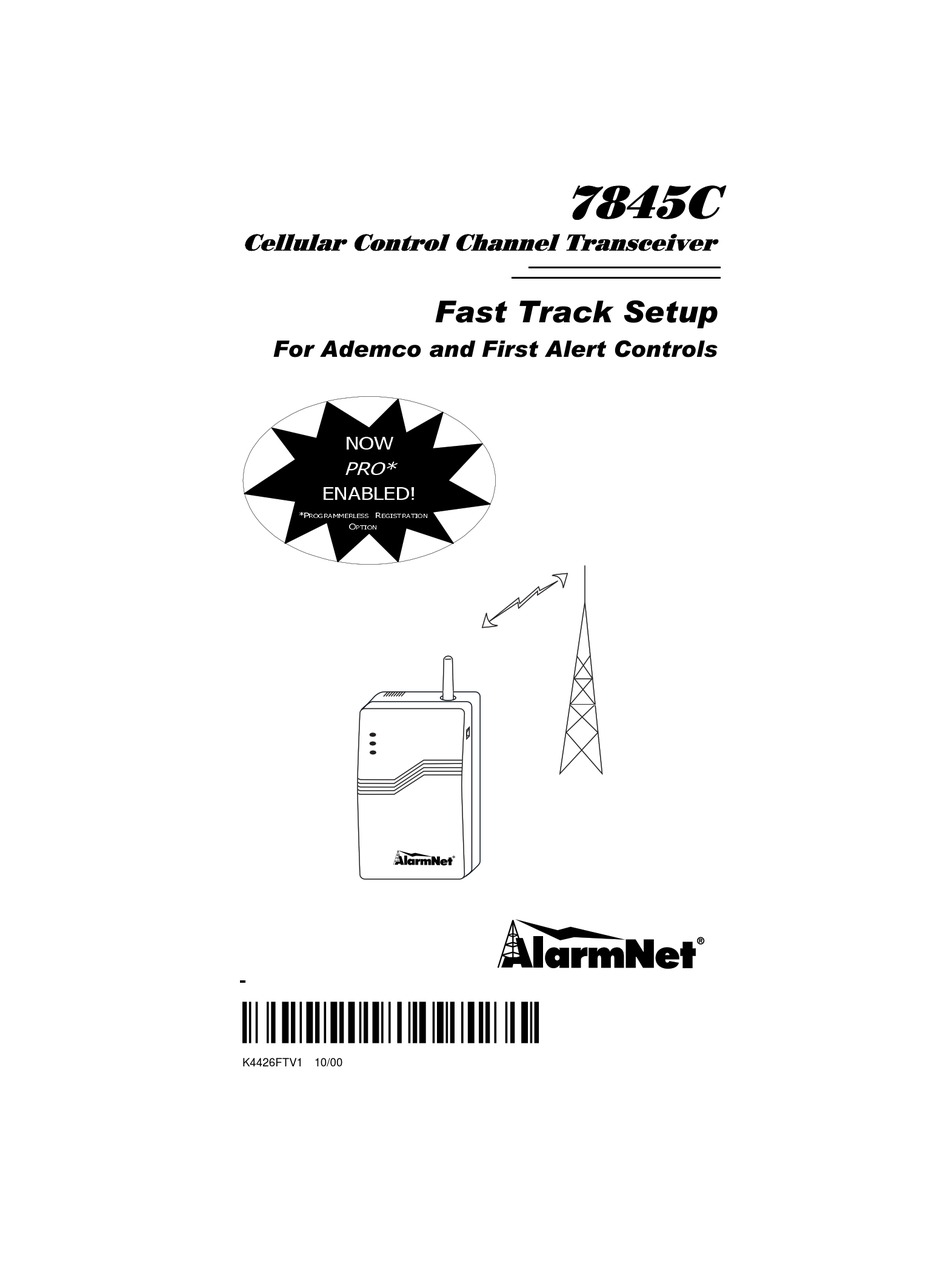

AlarmNet 7845C Fast Track Setup

Cellular control channel transceiver for ademco and first alert controls
Hide thumbs Also See for 7845C:
Table of Contents

Advertisement

Quick Links

Download this manual
&
&HOOXODU&RQWURO&KDQQHO7UDQVFHLYHU
)DVW7UDFN6HWXS

)RU$GHPFRDQG)LUVW$OHUW&RQWUROV

12:
352
(1$%/('
3
5
52*5$00(5/(66
(*,675$7,21
2
37,21
¬.)79@l
K4426FTV1 10/00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7845C and is the answer not in the manual?

Questions and answers

Related Manuals for AlarmNet 7845C

Summary of Contents for AlarmNet 7845C

  • Page 1 & &HOOXODU&RQWURO&KDQQHO7UDQVFHLYHU )DVW7UDFN6HWXS )RU$GHPFRDQG)LUVW$OHUW&RQWUROV 352 (1$%/(' 52*5$00(5/(66 (*,675$7,21 37,21 ¬.)79@l K4426FTV1 10/00...

  • Page 2: Table Of Contents

    Wiring and Programming Guides By Panel Type ....4–1 Vista 10, Vista 20 and Via 30 (Non-E2 Panels)......4–1 Programming the Panel ....................4–1 Programming the 7845C with a 7720P Programming Tool or Using Pro ....4–2 Wiring .........................4–2 VISTA-10SE, VIA-30PSE, FA142C, FA145C and VISTA-10ADTG ..............
  • Page 3 Table of Contents (cont’d) GO FOR HEIGHT...................... A–1 AVOID OBSTACLES....................A–1 AVOID INTERFERENCE ..................A–1 REMEMBER THAT AN ACCESSORY ANTENNA IS AVAILABLE ......A–1 Appendix B. Troubleshooting ..........B–1...

  • Page 4: Before You Leave The Shop

    800-222- 6525 Obtain AlarmNet Account Numbers Contact your providing AlarmNet Central Station or your local data center to obtain all three of the necessary AlarmNet account numbers. You will not be able to register the radio without these numbers. SUBSCRIBER NUMBER...

  • Page 5: Which Operating Mode To Use With Different Types Of Control Panels

    Which Operating Mode to Use With Different Types of Control Panels The 7845C has four different modes of operation, which can be selected using the tamper switch during start-up. Which mode you use depends on what type of control panel you will connect to the radio.

  • Page 6: Antenna Placement And Transmitter Installation

    Section 3. Antenna Placement and Transmitter Installation Antenna Placement and Transmitter Installation Guidelines • Use the signal strength meter (five horizontal LEDs) to determine quality of reception • Strive for the maximum possible signal strength—5 BARS, • Never settle for less than three steady bars of signal strength.

  • Page 7: Mount The Radio

    Section 3. Antenna Placement and Transmitter Installation-cont Mount the Radio Mount in previously selected and tested location. Register the Radio Ï Triple click tamper switch or press SHIFT [ ] to register. Green LED will go OFF when radio has successfully registered (30 seconds).

  • Page 8: Wiring And Programming Guides By Panel Type

    Section 4. Wiring and Programming Guides by Panel Type Wiring and Programming Guides By Panel Type Vista 10, Vista 20 and Via 30 (Non-E2 Panels) Programming the Panel * 25 WIRED EXPANSION/RELAY USED 0 = none; 1=4219; 2=4229; 3=4204 OUTPUT RELAYS Notes: 1.

  • Page 9: Programming The 7845C With A 7720P Programming Tool Or Using Pro

    Section 4. Wiring and Programming Guides by Panel Type - cont Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode. Question 1. Mode Press the [space] key to scroll through the modes of operation.

  • Page 10: Vista-10Se, Via-30Pse, Fa142C, Fa145C And Vista-10Adtg

    Dynamic Signaling Priority (DSP) 0 = primary dialer first; 1 = Long Range Radio (LLR) first. Note: Not an option on FA145C. Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode.

  • Page 11: Fa147C

    30 seconds, etc. “0” for UL installations. * 55 DYNAMIC SIGNALING PRIORITY (DSP) 0 = primary dialer first; 1 = Long Range Radio (LLR) first. Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode. Question 1. Mode Press the [space] key to scroll through the modes of operation.

  • Page 12: Vista-15, Fa148C, 250P1

    15 seconds, 2 = 30 seconds, etc. “0” for UL installations. digit: Dynamic Signaling Priority (DSP) 0 = primary dialer first; 1 = Long Range Radio (LLR) first. Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode.

  • Page 13: Vista-20Se, Vista-20Hwse, Fa162C, Vista-20Adt, Vista-20Bay And Sl150

    30 seconds, etc. “0” for UL installations. * 55 DYNAMIC SIGNALING PRIORITY (DSP) 0 = primary dialer first; 1 = Long Range Radio (LLR) first. Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode. Question 1. Mode Press the [space] key to scroll through the modes of operation.

  • Page 14: Vista 40, Vista 50 And Vista 100 (Non-E2 Panels)

    01-16. A (00=QUIT) maximum of 8 outputs can be used with the 7845C. Using the information below, program each relay output used with START, STOP and EVENT parameters. Relay output will correspond with the same Zone on the radio.

  • Page 15: Programming The 7845C With A 7720P Programming Tool Or Using Pro

    34 = Code + # + 7 Key Entry 58 = Duress 35 = Code + # + 8 Key Entry **Or at Disarming, whichever occurs earlier Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode. Question 1.

  • Page 16: Vista-128B, Vista-128Fb, Vista-32Fb, And Fa1600

    Enter the 3-digit zone number that you ENTER ZN NO. wish to program. As an ECP device, the 7845C must be in the 800 range. 000 = QUIT 803 Zone 803 is shown here. Press [*] to continue.

  • Page 17: Device Programming

    Select 6 = long range radio as the type of addressable device. Press [*] to continue. 03 RADIO PRG Select 1 to program the 7845C 1=YES 0=NO through the key pad; select 0 to return to the previous menu. 4–10...

  • Page 18: Programming The 7845C With A 7720P Programming Tool Or Using Pro

    Section 4. Wiring and Programming Guides by Panel Type - cont Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode. Question 1. Press the [space] key to scroll Mode through the modes of operation.

  • Page 19: Non-Ademco Panels

    Section 4. Wiring and Programming Guides by Panel Type - cont Non-ADEMCO Panels Programming the 7845C with a 7720P Programming Tool or Using Pro Using a 7720P, enter programming mode. Question 1. Press the [space] key to scroll Mode through the modes of operation.

  • Page 20: Appendix A. Tips For Finding The Best Antenna Location

    Many typical control panel locations, such as basements or closets, are very poor locations for cellular transmitters such as the 7845C. If the area near the control panel does not provide three bars of signal, then you will need to move the radio and test other areas of the premise.

  • Page 21: Appendix B. Troubleshooting

    7845C and repeat battery. startup. Cannot get into Certain 7720Ps will Run the 7845C from a 12VDC programming not operate from source. (7720V2TR or 12V aux mode with the 6VDC. from the control panel.) 7720P.
  • Page 22 If they are incorrect, and the mode. radio is not registered, the mode can be changed by power cycling the 7845C and using the tamper switch to change the mode. If the radio was registered the only way to change the mode is with a 7720P Programming Tool.
  • Page 23 Recheck installation per the transmit a coverage. “selecting a radio installation message to the site” paragraph in Section 4 . Cellular network. Move the 7845C until RSSI Red radio status level, and transmission success LED blinking after rates are acceptable. each transmission •...
  • Page 24 “Selecting a Radio supervise antenna Installation Site” paragraph in Alarms (com- installation or Section 4 . Move the 7845C fails) location. until RSSI level, and received, transmission success rates are followed by acceptable. Check antenna an eventual and power connections.
  • Page 25 Incorrect zone Make sure that for + bell outputs causes a bell setting. that the 7845C is set for V+ trigger, fault when wired and that for – bell outputs, it is set to the bell output for V- trigger.
  • Page 26 The red LED on There is a wiring Check the wiring. Make sure the 7845C blinks problem between that ECP IN, ECP OUT, and slowly. the 7845C and the GND are all correctly control panel. connected. In ECP Mode a • •...
