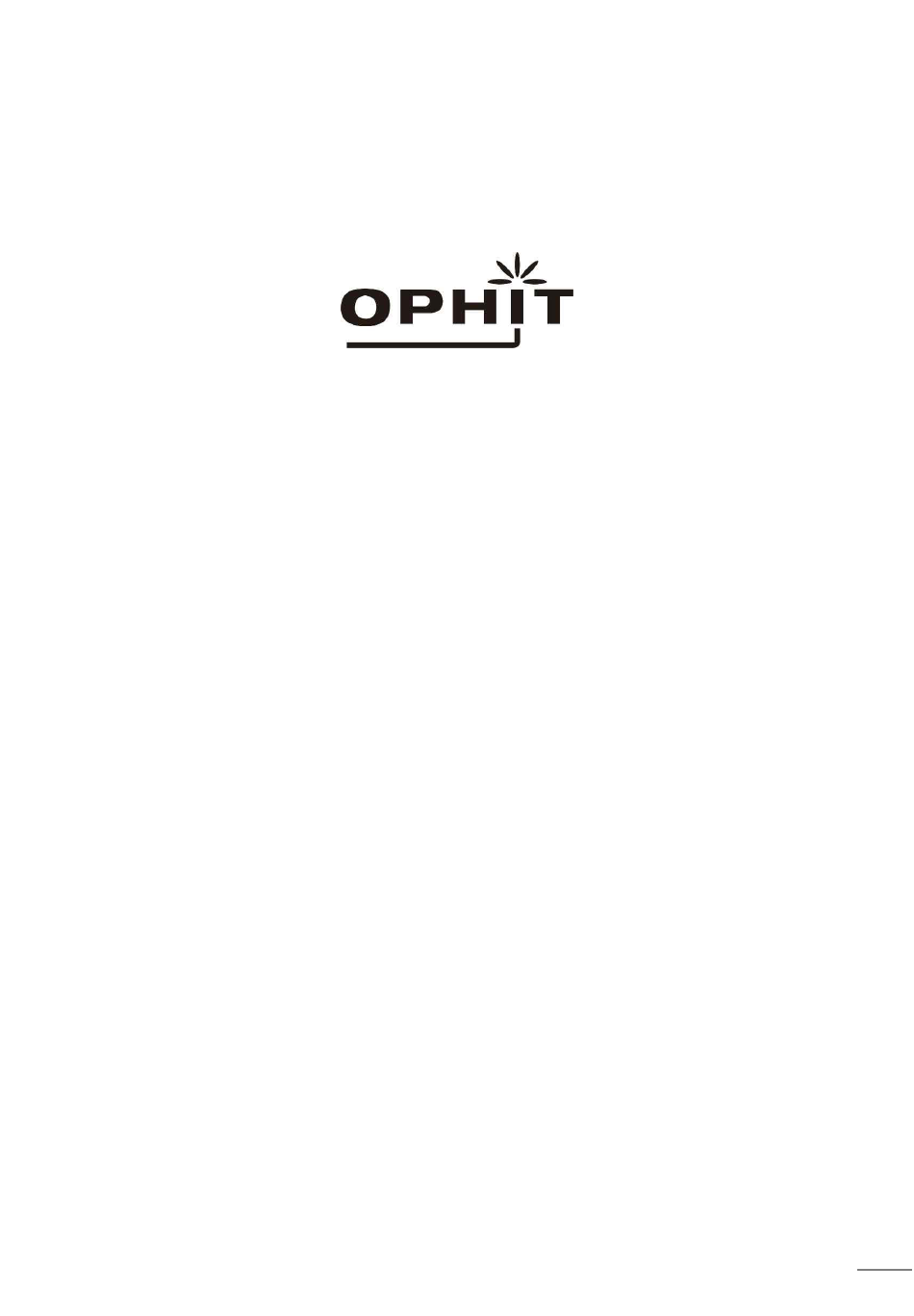

Page 1 OPHIT CO., LTD. USER MANUAL Model: MSV2 Revised: July. 15. 2019...
Page 2: Revision History
Manual Update 04. 30. 2019 JS Jeong Assembly 2D drawing for MSV2 updated. 07. 12. 2019 JS Jeong Full revision 07. 15. 2019 JS Jeong Chapter 1.1.1, 1.1.2 and 1.1.3 are updated *Version Number on above refers to MSV2 Software version...
Page 3: Table Of Contents
1. Introduction ..........................5 2. Description ........................... 10 3. Quick Start ........................... 10 4. Starting Guide and Basic Functions ..................11 5. MSV2 Function ........................15 6. MSV2 Web Controller ......................19 7. MSV2 OSD .......................... 62 8. API ............................76...
Page 4 Table Contents [Table 1] MSV2 Hardware & Software ..................10 [Table 2] MSV2 Quick Start Flow..................... 11 [Table 3] Screen layout ......................16 [Table 4] Output resolution ...................... 16 [Table 5] OSD Information Table ..................... 17 [Table 6] Web Controller Information Table ................17 [Table 7] Web Controller Function ..................
Page 5: Introduction
It is an ideal solution for applications where up to four different or same video signals must be displayed on a single display. MSV2 allows you to manipulate output images, wherever positions and whatever size you want for display and also allows you to control brightness, overlay, etc.
Page 6 For more details on the video input resolutions refer to the document, MSV2 specification. 1.1.3 Video output specification Items Values / Description Port type HDMI x 1 Resolutions 4096 x 2160p @60Hz (maximum) Signal format HDMI For more details on the video output resolutions refer to the document, MSV2 specification or chapter 5.4.
Page 7 1.1.4 Input/Output port pin assignment HDMI Connector Signal Assignment Signal Assignment Signal Assignment TMDS DATA2+ TMDS DATA0- TMDS DATA2 SHIELD TMDS CLOKE+ TMDS DATA2- TMDS CLOKE SHIELD TMDS DATA1+ TMDS CLOKE- TMDS DATA1 SHIELD TMDS DATA1- HEAC TMDS DATA0+ TMDS DATA0 SHIELD Display Connector Signal Assignment Signal Assignment...
Page 8 1.1.5 Mechanical Specification MSV2 case construction features Ÿ Button : Power, Menu, Move, Resize, Resolution, Left/Right/Up/Down, OK, 8 display type buttons. Ÿ Input video : 2 HDMI Connecters + 2 HDMI/DisplayPort Connectors(Selectable). Ÿ Output video : 1 HDMI Connector. Ÿ Size : 436(W) x 44(D) X 213(H) mm...
Page 10: Description
- Front panel allows you to change layout presets, move, resize functions, and OSD operation. Software - MSV2 operation is possible by utilizing MSV2 Web controller, On Screen Display (OSD), and User console. 1) OSD is operated by front panel.
Page 11: Starting Guide And Basic Functions
RS-232 . [Figure 1] MSV2 System Application operate in quad mode unless there is a separate operation using MSV2 Web Controller, OSD, User Console, etc. You can operate MSV2 by Quick Strat Flow as below .
Page 12 CH 1~4 LED : Input signal is detected, for each channel led is illuminated ACTIVE LED : If MSV2 is operating normally, this LED will flash. NETWORK LED : If the network connection is normal, the LED will illuminate. If this LED is not lit, you will not be able to access the Web Controller.
Page 13: Basic Function
4.2 Basic Function 4.2.1 Power On/Off 1. The front MSV2 power button LED will illuminate red when the rear power switch is switched on. 2. When the power button is pressed, the blue LED flashes and starts booting 3. The power button LED will turn blue after boot.
Page 14 (Timeout: 5sec). The output resolution supported by MSV2 is only capable of setting the resolution supported by the connected display equipment.
Page 15: Msv2 Function
5. MSV2 Function MSV is a multiprocessor that enables 4 inputs and puts all inputs in 1 output. Windows of different inputs can overlap due to resizing and moving function. In this case you will see the window with higher priority on the top of lower priority window. You can set Transparency level of overlapped areas of windows and also set border and label details.
Page 16: [Table 3] Screen Layout
[Table 3] Screen layout 5.4 Output resolution Output resolutions can be selected. Supporting output resolution is shown on [Table 4] Output resolution (Control tool è Front panel, Web controller) (Only SINK-supported resolutions in the below table are displayed.) Output resolution 4096 x 2160p (24/30/60Hz) 3840 x 2160p (25/30/50/60Hz) 1920 x 1080p (50/60Hz)
Page 17: [Table 5] Osd Information Table
User can set the audio output channel when it is not in CH 1-4 Only mode. MSV2 allows you to have 4 audio inputs and 1 output. You can select 1 output audio among 4 inputs and also can turn On/Off audio function.
Page 18 Label and Border can set to Timeout/Always on/Always off in the display mode of the Label and Border respectively in the OSD menu 5.14 Front button lock MSV2 can use the Web controller to prevent Front panel operation. This prevents unauthorized users from changing settings...
Page 19: Msv2 Web Controller
Front panel, user console, and OSD control do not support all functions, but MSV2 Web controller supports all the functions of MSV2... ☞ The MSV2 Web controller is available only when Ethernet is connected to MSV2 and the IP initial value is 169.254.0.193 ※...
Page 20: [Table 8] Default Id & Password
For Chromium and ChromiumPortable, Version 50.0.2633.3 and for IE is recommended starting with IE10 version. Enter the MSV2 Web controller ID and Password and start it by pressing the login button. One admin account and two guest accounts are provided. (It could be change later.)
Page 21 ƒ Layout control – Use saved Preset and Channel Enabled buttons „ Display information – Input information, Coordinate Information, Output Information 6.4 Menu Name of device, Preview On/Off, Banner On/Off, Screen Settings, Front Button Lock On/Off, current layout, and audio settings are available in the Menu 6.4.1 MSV2 Logo...
Page 22 Users can create the device name that they want, and users can change it in Account management, and for more settings, see Account Management. (Caution) Device name Indicates that the default value is "MSV2" and is not displayed in that case. 6.4.3 Menu button[l] Menu button of MSV2 6.4.4 Message information[④]...
Page 23 6.5.2 Preview Mode, Banner, Front Lock User can change the Preview mode. window information will display briefly if Banner On, If Front Lock selected, it will prevent to use control button on the front of MSV2 6.5.3 Resolution, Audio[l] Displays the resolution currently output from MSV2 and the channel of the audio used.
Page 24 6.6.1 Layout Option Layout option generates an option button when the Layout button is enabled, and opens when clicked. Features such as Preset name, Audio, OSD, channel selection, and Layer order are available. Press the window button of the blue box to access the window options (If the Input is interlace, Keep Aspect and Crop functions will be disabled and Apply will not save)
Page 25 To change the Preset name, click Preset name, change it to the desired name, and press the Apply button...
Page 26 To change Audio, click Audio, select the audio from the desired source in the select window, and press the Apply button to apply...
Page 27 To change the OSD Border, click Border, select the desired setting, and press Apply button.
Page 28 To change the OSD Label, click Label, select the desired setting, and press the Apply button...
Page 29 User can use Select Input to change the source of the window or to change the order of the layers. Press 3 and press the Apply button to apply the source of A Window to channel 3. The remaining B, C, and D windows can also be pressed on the desired channel and then the Apply button...
Page 30 User can change the order of the layers by pressing the button to the far right. Select the layer order and press the Apply button to apply...
Page 31 Touch the X-mark as shown above, the window will be disappeared.
Page 32 Pressing the window button will open the following window: The clicked window changes to green to indicate activation status. Changing of the Input name is not possible in the corresponding Options window and can be changed in the Channel option. Keep Aspect is an option for maintaining the source's original ratio.
Page 33 To use Keep Aspect, press the toggle button to "ON", The source's original rate will maintain.
Page 34 Press the Input Crop button to activate the Crop function. Input Window Coordinates under the button is active and user can enter the coordinates to output from the source. Enter the desired coordinate value and press Apply to apply 6.6.2 Layout Button (Preset Button) Press button to change layout.
Page 35 When you click the Preset List button, the following window pops up...
Page 36 After removing the check of QUAD, 3SIDE, and 3BOTTOM, press Apply, the Preset button window as shown below will be changed...
Page 37 Applied appearance.
Page 38 When "on" the Block Unlisted Preset Keys button, the front button is used to block the Preset that is missing from the Preset List.
Page 39 When "on" the Block channel key button, will be block the channel selection button of the front button...
Page 40 6.6.4 Channel Option[④] Channel option opens when the Channel button is enabled and is clicked. user can use Channel name, Scale, Crop, Brightness, Contrast, EDID Mode, and more. (If the Input is interlace, Keep Aspect, Crop will be disabled and Apply will not save.)
Page 41 To change the Input name, click Input name, change it to the desired name, and press the Apply button. The Input Port tells which port the current source is entering...
Page 42 To change the EDID mode, click EDID mode and select the desired value to change it.
Page 43 To use Keep Aspect, press the toggle button to "ON", The source's original rate will maintain.
Page 44 Press the Input Crop button to activate the Crop function. Input Window Coordinates under the button is active and user can enter the coordinates to output from the source. Enter the desired coordinate value and press Apply to apply...
Page 45 Touch the X-mark as shown above, the window will be disappeared. 6.7 Screen Information Provide Input information and coordinates of windows and output information.
Page 46 6.7.1 Input Information[j] Shows input information for MSV2. Displays information about Type, Signal, HDCP, Format, Depth, and resolution 6.7.2 Coordinate Information[k] Displays the coordinates of the current window in real time. In Home, user can change the coordinates by entering a value in the Design Tab while the lock is on.
Page 47 When selected for control, the Border color changes to blue. The output display shows the modification process shown on the MSV2 Web controller screen in real time 6.9.1 Preview Mode, Banner[j] User can off or on streaming function through Preview Mode.
Page 48 The shape of Grid's The shape of Window B selected using Window Selector 6.9.3 Screen Layout(User Free) [l] Show modification process displayed on MSV2 Web Manager screen in real time...
Page 49 6.10 Layout Select Button & Layout Save Uers can save their desired layout. Click the layout user wants to save and create the layout by dragging or setting coordinates. It is also possible to create using the layout of the specified form...
Page 50 6.10.1 Layout Option[j] When user press the Layout option button, pop up the following window: The layout specified in Select Layout is available. Select input allows you to specify channels and order layers for each window.
Page 51 6.10.2 Layout Button[k] This is Layout space that the user can save. Click the button where you want it to be and then start editing...
Page 52 Once user has created the desired layout design, touch the Save button to save it to the appropriate layout. 6.11 Screen Information Provide output information, coordinates information of window and output information 6.11.1 Input Information[j] Shows input information for MSV2. Displays information about Type, Signal, HDCP, Format, Depth, and resolution.
Page 53 6.11.2 Coordinate Information[k] Displays the coordinates of the current window in real time. In Design, USER can change the coordinates by entering a value if the lock doensn't on hanging . When the lock on the header is unlocked, user can be modified the coordinate value. Touch the coordinates of the desired window and enter a coordinate value.
Page 54 Depth.. 6.12 System user can check the version of MSV2 and various settings in the system. The name of the device, MSV2 serial number, hardware/ software version, Mac address, system clock, and an upload button for firmware upgrade exists 6.12.1 Device Name Shows input information for MSV2.
Page 55 Time Setup allows user to set the time user wants. When the time setting is complete, press OK to apply. 6.12.3 Firmware Firmware upgrade is possible through MSV2 Web Manager. If a pkg file exists, the upgrade will proceed automatically after user click the button...
Page 56 DHCP features are available. Check MSV2 OSD for the changed IP and connect to the web. Creates the desired network setting value and is saved by pressing the Save button. Only digits 0-255 can be entered, no other characters or numbers can be created DHCP Setup 6.13.1...
Page 57 6.14 Communication User can set UART settings and TCP/IP settings. Baud rate setting and Port setting are possible 6.15 Schedule...
Page 58 MSV2 schedule functionality is available. user can set the power on, off time to automatically turn MSV2 on or off when necessary Active is enabled, Time is on or off, and WEEKLY is the day of the week when the schedule function will operate.
Page 59 6.16 Account User can change the account information for MSV2. After logging in again, you can set the ID, password, and device name of your account...
Page 60 After connecting, the following window will appear: Selects user is the list of users to change (MSV2 provides Admin, guest1, guest2 total 3 accounts), and Device name is the name to enter the Device name column (see Manual 6.4.2). Username, password means ID and password when logging in.
Page 61: Shut Down
6.17 Shut down The MSV2 web controller provides Shutdown and Restart functions. It is available when powering off or restarting MSV2.
Page 62: Msv2 Osd
7. MSV2 OSD MSV2 supports the On Screen Display (OSD) feature. The OSD can be controlled by the front panel.. 7.1 OSD Introduction When press the Menu button, display the OSD in the center of the screen. OSD Menu operating button...
Page 63 USER3 USER4 CH 1 CH 2 CH 3 CH 4 Channel1 Channel2 Channel3 Audio Channel4 Timeout Border Timeout Label Channel1 Channel2 Input Port Channel3 Channel4 Layer1 Layer2 Priority Layer3 Window A Layer4 Fit window Windows Scale mode Same aspect X pos Y pos Width Height...
Page 64: [Table 10] Osd Layer Table
[Table 10] OSD Layer Table 7.2 Output menu 7.2.1 Output Format User can select the output resolution. The Resolution list shows only the resolutions supported by the Display device in the MSV2's supported resolution. (The current Interlace resolution is not supported.)
Page 65 7.2.2 Encryption User can set HDCP on/off 7.2.3 HDCP Version User can check the current HDCP version. 7.2.4 Preset User can show the currently selected Layout and select a different Layout...
Page 66 Shows the channel where the current audio is output, and allows you to select audio for the other channel. When Layout is selected, the audio is fixed to the selected channel and cannot be changed. 7.2.6 Border User can draw a Border on the MSV2 window. User can select 3type of Time out, On, and Off.
Page 67 Border applied image 7.2.7 Label It can be shown the input name of outputed in each window through the OSD. user can select 3type of Time out, On, and Off * When using the output menu in Channel only mode, the value of Border, label on/off/timeout is shared by all four channels...
Page 69 7.3 Windows menu In the Window menu, user can change the Input port, Priority, and Scale mode for each window and view the coordinate information for that window. 7.3.1 Input Port User can change the input in the window.
Page 70 7.3.2 Priority Available to change the order of layers on window. Layer4 is the front and Layer1 is the Rearmost. 7.3.3 Scale Mode In case of scale mode is set to "same aspect", output aspect maintain same ratio as input and "fit window", output screen size fit to window area.
Page 71 7.3.4 Coordinate Information User can view the x, y coordinates, width, and height of the selected window. * If Layout is a channel, if you enter Windows menu, the following picture and window will be changed to a channel and only scale mode can be changed...
Page 72 7.4 Input menu In the Input menu, you can set information about each channel, Brightness, and Contrast, and range from 0 to 100. The Left/Right button decreases/increases the value by 1 and the Up/Down button decreases /increases the value by 10. User can select EDID Mode.
Page 75 7.5 System menu User can view information about the S/W version, IP information, Mac, RS-232 and TCP Port on MSV2.
Page 76: Api
8. API(Command Set) On UART Controlling or TCP you can control MSV using text commands via RS-232 port on MSV. UART Control, TCP supports some of the functions of MSV, please control via MSV manager if you need full control. Currently, only “set”...
Page 77 Warranty We, OPHIT hereby warrant the final purchase of our product as follows. In the case of troubles on our products, please contact the seller purchased. One(1) year limited warranty Our customers have right to be served with free charge when there is trouble in this product during one(1) year from the day purchased.
