Summary of Contents for OneTech OTP-LS8
-

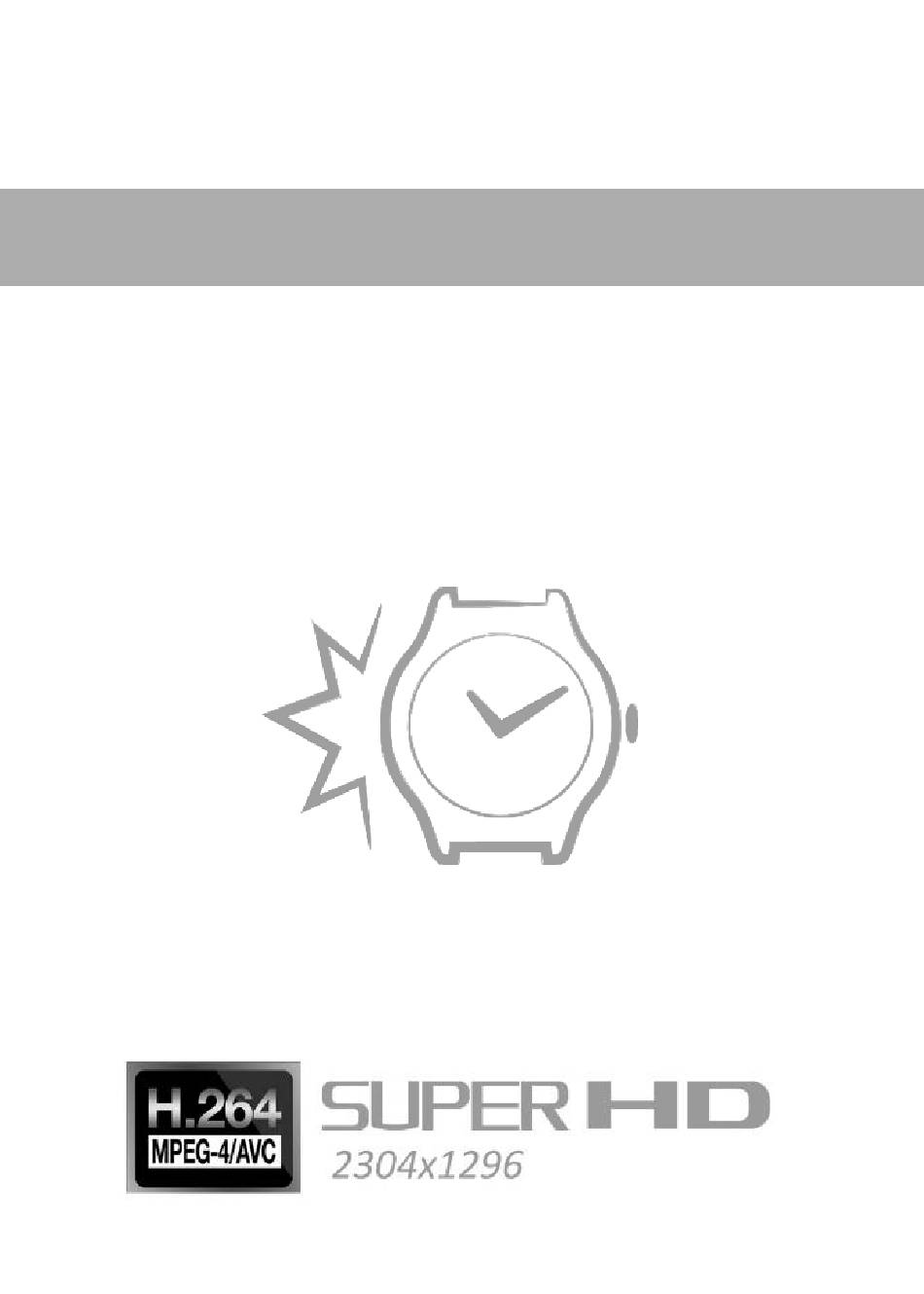

Page 1: User Manual
OTP-LS8 Smart Watch DVR User Manual... - Page 2 Please read this manual carefully and thoroughly before any attempt to operate this product and retain it for your future reference. Smart DVR Features Super image sensor for low illumination video recording, quick light response Super HD 1296P @ 30fps, 720P up to 60fps H.264 compression Built-in micro SD card, support up to 128GB ultra-integrated watch type design, suitable...
-
Page 3: Main Operations
Main Operations Important: Setting for waterproof (only for waterproof type） Before any contact with water, be sure to screw the microphone crown and USB crown to the case by turning the crowns clockwise while applying gentle pressure, be sure to put the time adjust crown to the normal position. - Page 4 1. Powering the Smart DVR On/Off To power on the Smart DVR，press and hold the Function button until the blue indicator light appears. After a few seconds the green light will flicker several times and then turn off, the Smart DVR will automatically begin recording video.
-
Page 5: Recording Audio
3. Taking Photo (1).To enter the photo mode, make sure the Smart DVR is in standby mode(the blue light is solid on), double-click the Function button, the Smart DVR will go into the photo mode and the blue and green light will blink alternately. (2).Click the Function button once to take a picture, the blue light will blink twice. -
Page 6: Motion Detection
Motion Detection (1). To enter the motion detection recording mode, make sure the Smart DVR is in standby mode(the blue light is solid on), Click the Function button 4 times quickly, the green light will blink, the Smart DVR entered motion detection mode. -
Page 7: Charging The Battery
DVR will shut down. (2). When the memory is full, both the blue and green light will blink for seconds, and then the Smart DVR will shut down. (3). If no operation for two minutes in standby mode, the Smart DVR will shut down. 7. - Page 8 Function button once in same time, restart the Smart DVR, it may work normally. 9. Setting your Smart DVR Plug the Smart DVR into the computer USB port, a new removable disk will appear on the computer screen. Open the removable disk, you setup.exe will find the file under the root...
-
Page 9: Specifications
the factory default Settings. After safely removing the Smart DVR from the computer and turn on the Smart DVR, the settings will take effect. 10. Watch time adjusting (1). Pull the time adjust crown out to the time correction position. (2). - Page 10 Storage: Micro SD up to 128GB USB Interface： USB 2.0 Battery Charge： DC 5V/500mA Battery Capacity: 380mAH 52×45×15mm(approx.) Dimension： (approx.) Net Weight： 110 g Caution: Your Smart DVR is a product of superior design and craftsmanship and should be treated with care. The Smart DVR may become fairly hot during recording –...
