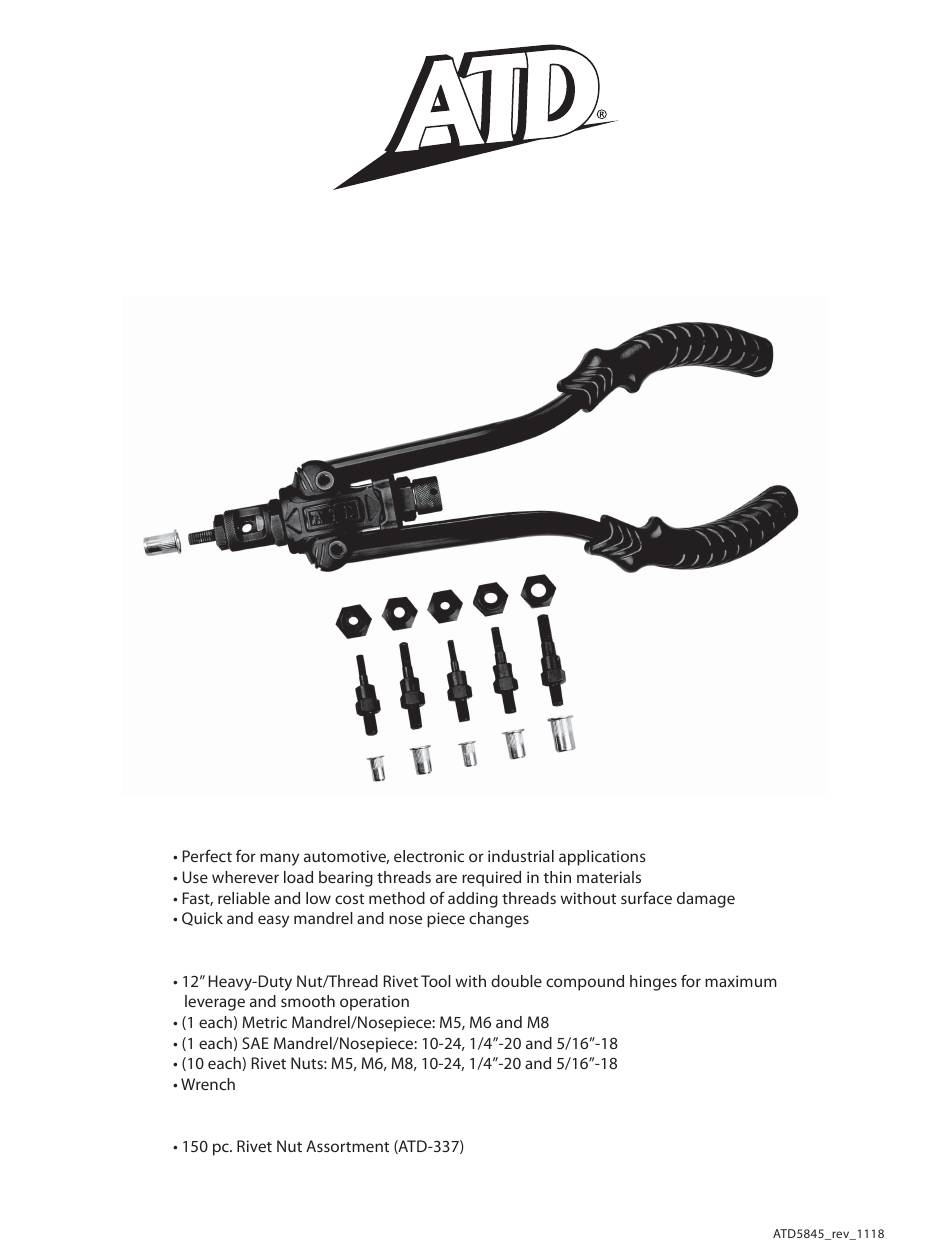

- Page 1 ATD-5845 12” Nut/Thread Hand Riveter Kit Features: Set Includes: Available Accessories: Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
-
Page 2: Safety Instructions
Safety Instructions 1. Read all instructions before using this unit. 2. Always wear ANSI approved safety goggles when using this product. 3. Always wear appropriate safety equipment and clothing when using this product. Operating instructions 1. Opening the handles will allow you to screw 2. -
Page 3: Troubleshooting
Replacing the Mandrel 1. Use the wrench to loosen the nosepiece. 4. Choose correct mandrel and press the sheath, screw mandrel clockwise until tight, then release the sheath. 2. Use the wrench to loosen and remove sleeve. 5. Screw and tighten sleeve and corresponding nosepiece back on. - Page 4 The Multifunction Wrench Nut Size Drill Size 7mm (9/32") 9mm (3/8") 11mm (7/16") 10-24 7mm (9/32") 1/4"-20 10mm (13/32") 5/16"-18 11mm (7/16") Riveting nut graph: 1.Thread rivet nut onto 2. Place nut in pre-drilled 3. The nut is riveted in 4.
- Page 5 ATD-5845 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT5845-01 HANDLE (2PCS) PRT5845-14 PULL ROD PRT5845-02 COTTER PIN PRT5845-15-1 M5 MANDREL AND NOSEPIECE SET PRT5845-03 KNURLED NUT PRT5845-15-2 M6 MANDREL AND NOSEPIECE SET PRT5845-04 BIG NUT PRT5845-15-3 M8 MANDREL AND NOSEPIECE SET...
-
Page 6: Year Limited Warranty
Your ATD-5845 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
