ACCESS POINT

User Guide
DE-AU ACCESS POINT
Version 12/12/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACCESS POINT and is the answer not in the manual?

Questions and answers

Summary of Contents for Overline Systems ACCESS POINT

  • Page 1: Access Point

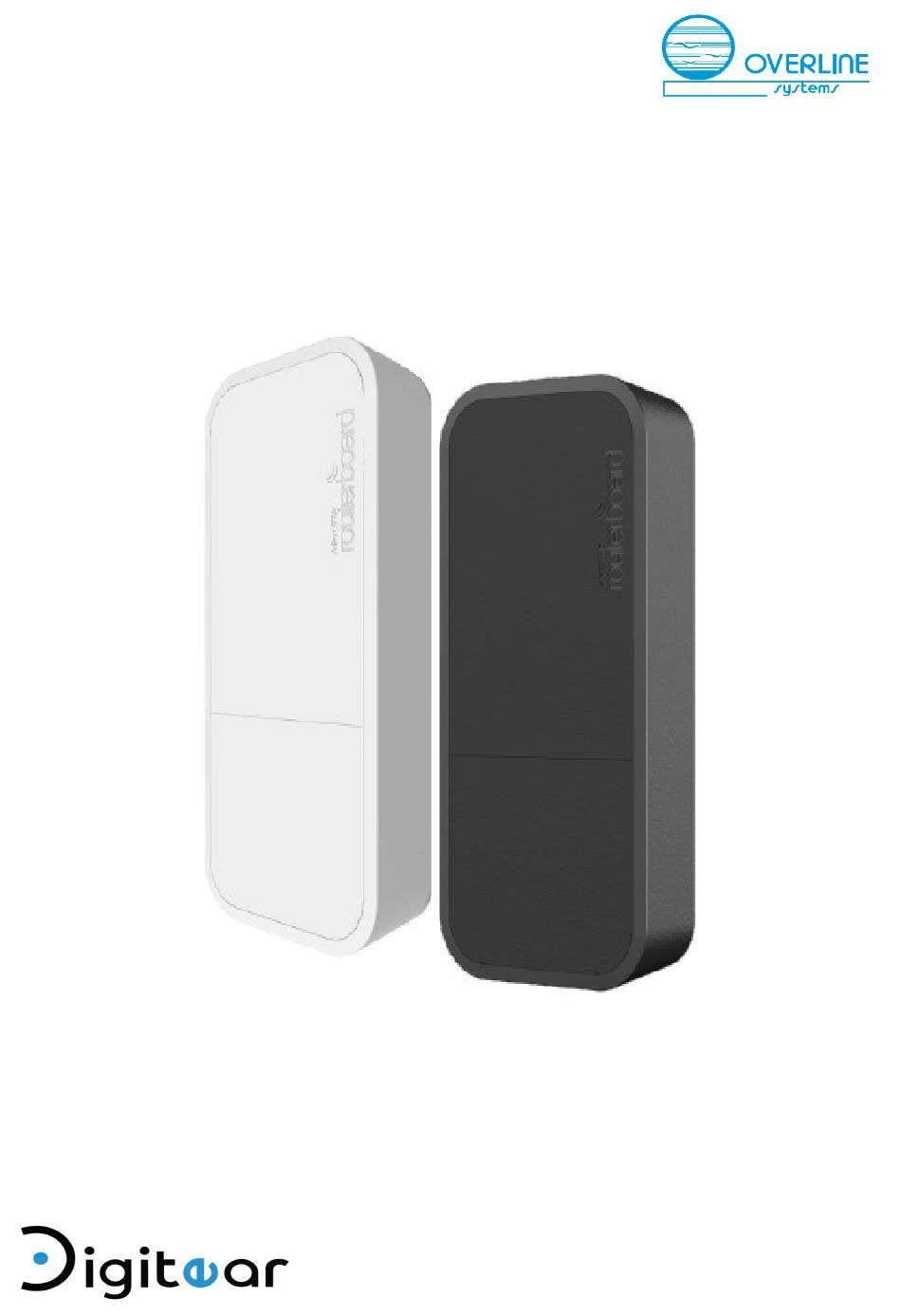

    English ACCESS POINT User Guide DE-AU ACCESS POINT Version 12/12/2017...
  • Page 2: Table Of Contents

    CONTENTS 1 - DESCRIPTION OF THE SYSTEM 2 - OVERVIEW 3 - ACCESS POINT DESCRIPTION 4 - LIST OF SUPPLIED ACCESSORIES 5 - ACCESS POINT INSTALLATION 5 - 1 Direct Installation to the TX-BOX : 5 - 2 Installation with the supplied adapter:...
  • Page 3: Description Of The System

    User Guide ACCESS POINT 1 - DESCRIPTION OF THE SYSTEM TX-BOX Data Distance < 100 meters depending on installation BELTPACK ACCESS POINT Data Range < 10 m Data INEAR INEAR Page 3 of 11...
  • Page 4: Overview

    BELTPACK and the TX-BOX. The supplied antenna is manufactured by MicroTik and distributed by its partners. Overline Systems has applied a specific configuration to the antenna in order to optimize its exclusive use within the Digitear. User Guide available www.digitear.eu...
  • Page 5: Access Point Description

    User Guide ACCESS POINT 3 - ACCESS POINT DESCRIPTION "Reset" button Only for the technical service of Overline Systems, not to be used. Radio Power supply Supplied with an adapter Power Jack RJ45 Access to the Digitear.Network It is recommended to use an RJ45 CAT5E U/UTP. cable.
  • Page 6: List Of Supplied Accessories

    User Guide ACCESS POINT 4 - LIST OF SUPPLIED ACCESSORIES AC adapter 24 V. Bracket mount for wall or ceiling. Local PoE Injector. In the case of a connection to a non PoE switch Page 6 of 11...
  • Page 7: Access Point Installation

    User Guide ACCESS POINT 5 - ACCESS POINT INSTALLATION 5 - 1 Direct Installation to the TX-BOX : Enables the installation of a single antenna with a maximum cable length of 10 m. 5 - 2 Installation with the supplied adapter:...
  • Page 8: Technical Features

    The antenna configuration is compatible with the majority of network installations. A particular configuration can be realized upon request. Please contact our Overline Systems Support if needed. Several ACCESS POINT can be installed via a PoE switch, to increse the radio coverage area. Page 8 of 11...
  • Page 9: Technical Troubleshooting

    - The BELTPACK does not connect: * Try again by placing the BELTPACK near the ACCESS POINT. * Try again with another BELTPACK. * Check connection between the ACCESS POINT and the TX-BOX.through the RJ45 cable. * Open the ACCESS POINT cover for visual inspection >- Check the presence of the Power LED.
  • Page 10: Warranty

    24 months parts and labor in workshop Battery: 12 months (starting from the date of purchase) ACCESS POINT: Covered by the original manufacturer’s warranty. No sole accessory will be accepted or repaired by our repair centers. Page 10 of 11...
  • Page 11: Certifications

    User Guide ACCESS POINT 9 - REGULATORY COMPLIANCE Regulary compliance information may be obtained by referring to the documentation delivered with the product (wAP series) or by visiting the following web page: http://routerboard.com/doc/ Operations in the 5,15-5,25GHz band are restricted to indoor usage only.
