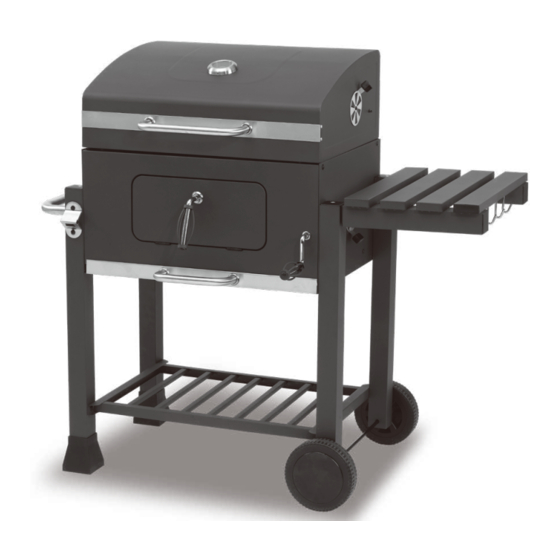

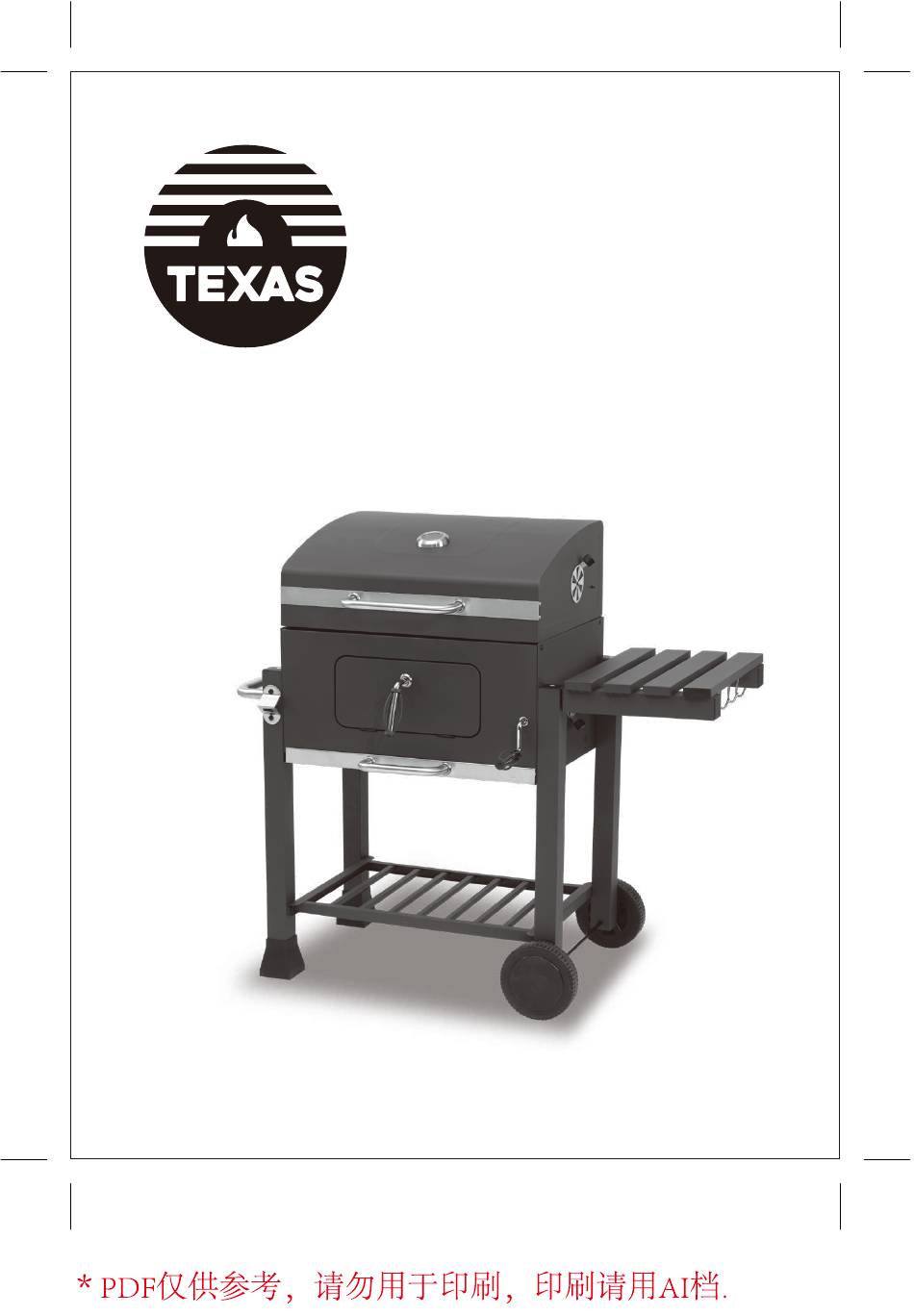

- Page 1 FRANKLIN CHARCOAL BBQ INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. BBQ-Homebase-BB03024A-IM-21x29.7cm lucy 20181137 20181029...
- Page 2 PARTS LIST 8. 1 24. 1 Before using the product After unpacking and before every use, check whether the product shows any signs of damage. Should this be the case, do not use the item and notify your retailer. Before assembly, please read through the safety information in this operating manual carefully. Only by doing so will you be able to use all of the functions safely and reliably. Keep the operating manual and pass it on to any third party that might own the barbecue after you Components - parts 1.
- Page 3 Components - parts 7. Warm grid 15. Lifting handle 8. Outer cooking grill 16. Carbon door bar 8. 1 Inner cooking grill 17. Carbon door handle base 9. Lower hinge 18. Carbon door handle 10. Body back plate 19. Pulling handle base 11.
- Page 4 24. Front long leg 28. Front wheel leg 24. 1 Leg cup 29. Wheel axle 25. Back long leg 30. Wheel 26. Bottom plate 31. Wheel cap 27. Back wheel leg 32. Right side table Component - fittings Please check you have all the fittings listed below. Note: The quantities below are the correct amount to complete the assembly.
- Page 5 Intended use Use this barbecue to heat, cook and grill food. This barbecue is intended exclusively for private, outdoor use and not for indoor or commercial use. Only use the item as described in this operating manual. All other uses are considered improper and can lead to material damage or even to personal injuries. The manufacturer accepts no liability for damages caused by improper use.
- Page 6 DANGER: Risk of burning and accidents! This product is not intended for use by persons (incl. children) with limited physical, sensory, or mental capacities or lacking experience and/or lacking knowledge. • Such persons must be informed about the dangers of the product and supervised by a person responsible for their safety. •...
- Page 7 1. First, read through the assembly instructions completely. 2. Allow yourself enough time for assembly and find an even working space of two to three square metres. 3. Small parts, such as handles, will probably be preassembled. Required tools 1 x Phillips screwdriver 1 x Adjustable spanner Assembling the BBQ Unpack BBQ...
- Page 8 Step 4 Step 5...
- Page 9 Step 6...
- Page 10 Step 7 Step 7...
- Page 11 Step 8 Step 9...
- Page 12 Step 10 Step 11...
- Page 13 Step 12 Step 13 13 13...
- Page 14 Step 14 Step 15...
- Page 15 Step 16 Step 17...
- Page 16 Setting up the BBQ ATTENTION: Risk of damage! During use, the screws can loosen slowly and impair the BBQ’s stability. • Check the stability of the screws prior to each use. If necessary, tighten all of the screws again to ensure the barbecue is standing securely. •...
- Page 17 WARNING! Every care has been taken in the production process to eliminate sharp edges on your grill. Please handle the parts with care so as to avoid accidents or injury during assembly and when in use. Take careful note before use Always select a safe and level location in a place suited for a charcoal barbecue.
