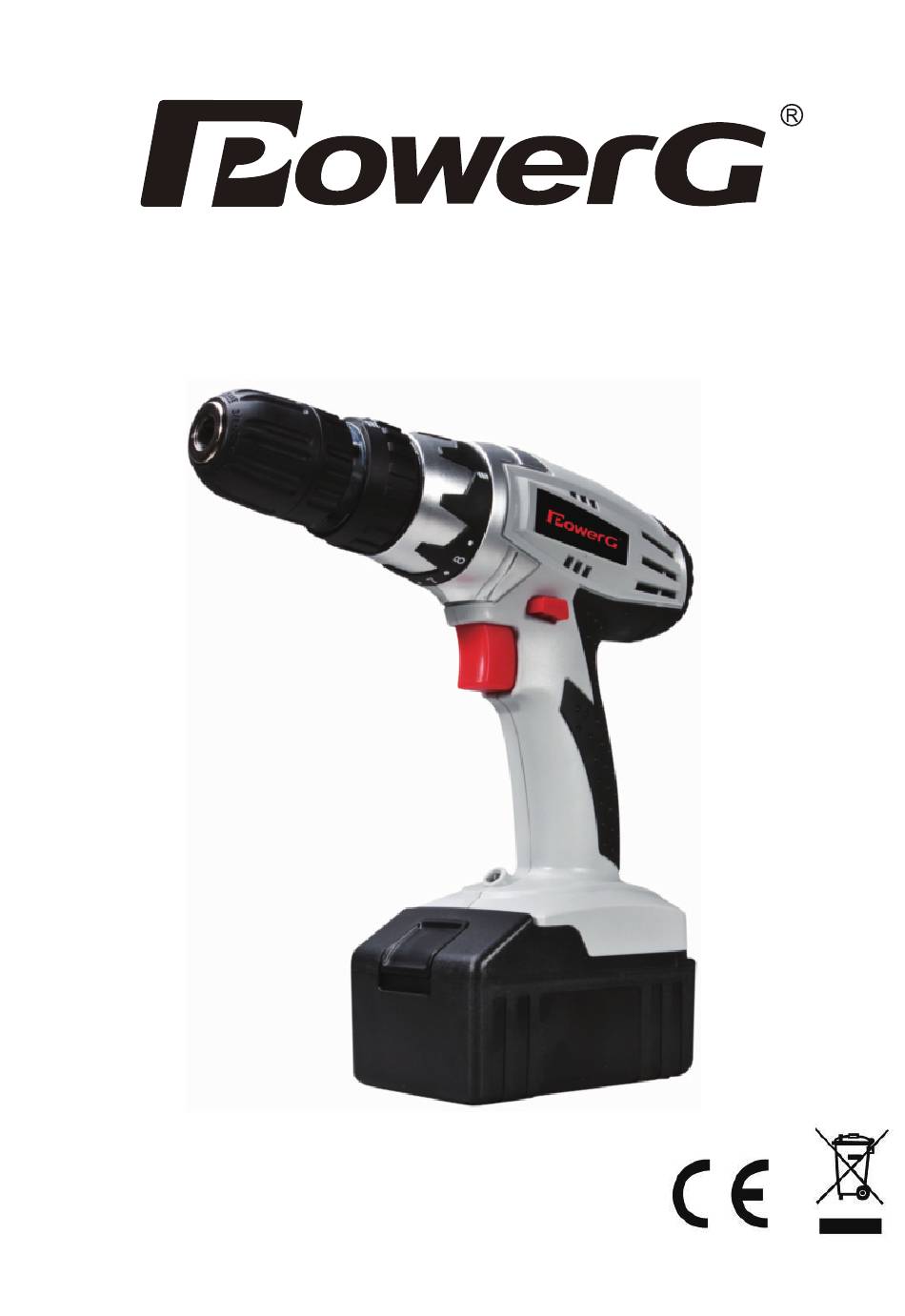

- Page 1 18V Cordless Hammer Drill PG18CHD Manufacturer: SUMEC Hardware & Tools Co., Ltd 1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 P.R. China...
- Page 3 Product Features The numbering of the product features refers to the illustration of the machine on page (Pic. A-C) Keyless chuck LED light Power switch Torque selection bezel Rotational direction switch Insulated Handle Battery release button Battery pack Gear selector 10.
-
Page 4: Technical Data
TECHNICAL DATA Cordless Hammer Drill PG18CHD Rated voltage DC 18V No-load speed 0-350/0-1250 rpm Steel 10 mm capacity Wood 20 mm Battery Ni-Cd Battery capacity 1300 mAh Battery charging time 3-5 hours Battery charger PG18CHD-3 Input voltage 220~240V 50-60Hz 20W Output voltage DC 24V 400mA Sound pressure level (LpA) -
Page 5: Description Of Symbols
DESCRIPTION OF SYMBOLS Please read all of the safety and operating instructions carefully before using this tool. Please pay particular attention to all sections of this User Guide that carry warning symbols and notices. Observe caution and safety notes! No-load speed. Voltage mA/A/Ah Milliamps/Amps/Amp-hours... -
Page 6: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The “power tool” in this instruction refers to your battery-operated (cordless) power tool. - Page 7 must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 8 adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of staring the power tool accidentally. Store idle power tools out of the reach of children and do not allow people unfamiliar with the power tool or these instructions to operate the tool.
-
Page 9: Additional Safety Warnings
Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ADDITIONAL SAFETY WARNINGS 1) Specific safety rules Do not let comfort or familiarity replace strict adherence to cordless drill safety rules. - Page 10 Only charge your batteries indoors as the charger is designed for indoor use only. DANGER. If the battery pack is cracked or damaged in any other way, do not insert it in the charger. There is a danger of electric shock. WARNING.
- Page 11 Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40 C (104 F) such as alongside sheds or metal structures in the summer. The charger is designed for use from a standard household electrical supply (230V-240V).
- Page 12 Do not store or carry a spare battery pack in a pocket or toolbox or any other place where it may come into contact with metal objects. The battery pack may be short circuited causing damaged to the battery pack, burns or a fire. The battery pack utilizes nickel-cadmium cells.
- Page 13 ASSEMBLY Battery Charging Only use the battery chargers that are matched to the nickel-cadmium battery of your power tool. (Pic. B) 1) Connect Battery charger adapter (10) with battery charger base (12). Plug the battery charger adapter (10) into AC voltage source. There are 2 lights in the battery charger, red and green.
-
Page 14: Operation
Fitting and removing the battery pack WARNING Do not continue to press the Power switch after the machine has been automatically switched off. The battery can be damaged. The battery is supplied partially charged. Completely charge the battery before using your power tool for the first time. - Page 15 For continuous operation, squeeze on the Power switch (3) and keep it pressed. The harder the power switch is pressed down, the faster the speed will be. Switching off: To stop the appliance, release the Power switch (3). Reversing the Rotational Direction 16.
- Page 16 First, rotate the torque selection bezel (4)to set the torque. Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the power switch (3) as soon as the clutch cuts in.
- Page 17 Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool. There is a tremendous force exerted on the tool/bit at the time of hole break through.
- Page 18 Maintenance charge If you leave the battery pack in the charger to prevent spontaneous discharging after full charge, the charger will switch into its “trickle charge (maintenance charge)” mode and keep the battery pack fresh and fully charged. Tips for maintaining maximum battery life Charge the battery pack before completely discharged.
- Page 19 Guarantee and Service This product is guaranteed for 1 year from the original date of purchase, the guarantee applies to material and production defects. This warranty is not valid without the original dated receipt of purchase. If the product shows defect as a result of material and production defects during the period of guarantee, providing that the product has been used properly and for the purpose which it has been intended, then faulty products will either be replaced or refunded.
- Page 20 SUMEC Declaration of Conformity SUMEC Hardware & Tools Co.,LTD 1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 P.R. China Declare that the product Cordless Hammer Drill Model No. PG18CHD Complies with the essential safety and health requirement of the following directives:...
- Page 21 Ref. Description Ref. Description Keyless chuck Heat sink assembly Gear box and motor Contact plate assembly Gear selector Battery pack assembly Screw Adapter Housing Forward and reverse lever Trigger & Switch assembly Charger base Led work light assembly...
- Page 22 Cordless Hammer Drill PG18CHD...
