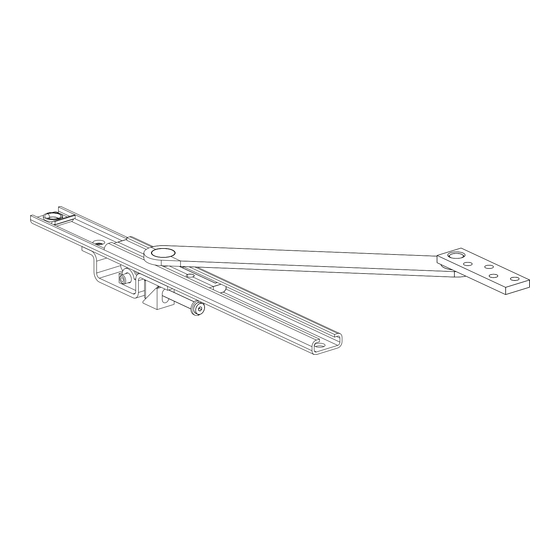

Glynn Johnson 100 Installation Instructions
  1. Manuals
  2. Brands
  3. Glynn Johnson Manuals
  4. Door Opening System
  5. 100
  6. Installation instructions

Glynn Johnson 100 Installation Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

*829409-00*
829409-00
Function Conversions
100
Index
Installation Instructions
2
2
3
3
4
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Glynn Johnson 100

  • Page 1 *829409-00* 829409-00 Function Conversions Installation Instructions Index Instructions to convert Hold-Open to Stop Only Instructions to convert Friction Hold-Open to Stop Only Instructions to convert Stop Only to Hold-Open Instructions to convert Stop Only to Friction Hold-Open Instructions to convert Friction Hold-Open to Hold-Open Instructions to convert Hold-Open to Friction Hold-Open...
  • Page 2 End Cap Rivet End Cap Shock Spring Slider Screw Hold-Open Bracket Assembly Figure 1 Hold-Open to Stop Only (Refer to Figure 1) 1. Remove the overhead unit from door and frame. 2. Remove the hold-open bracket assembly from the bottom of the channel by removing the screws at each end of the bracket from inside of channel.
  • Page 3 Friction Spring & Pad Assembly Friction Nut Shock Spring Slider End Cap Friction Cam Rivet Figure 2 Stop Only to Hold-Open (Refer to Figure 1) 1. Remove the overhead unit from door and frame. 2. Slide the arm assembly out of the channel. 3.
  • Page 4 Friction Hold-Open to Hold-Open (Refer to Figures 1 & 2) 1. Remove the overhead unit from door and frame. 2. Slide the arm assembly out of the channel, the 2 friction spring and pad assemblies will drop out of the slider. 3.
