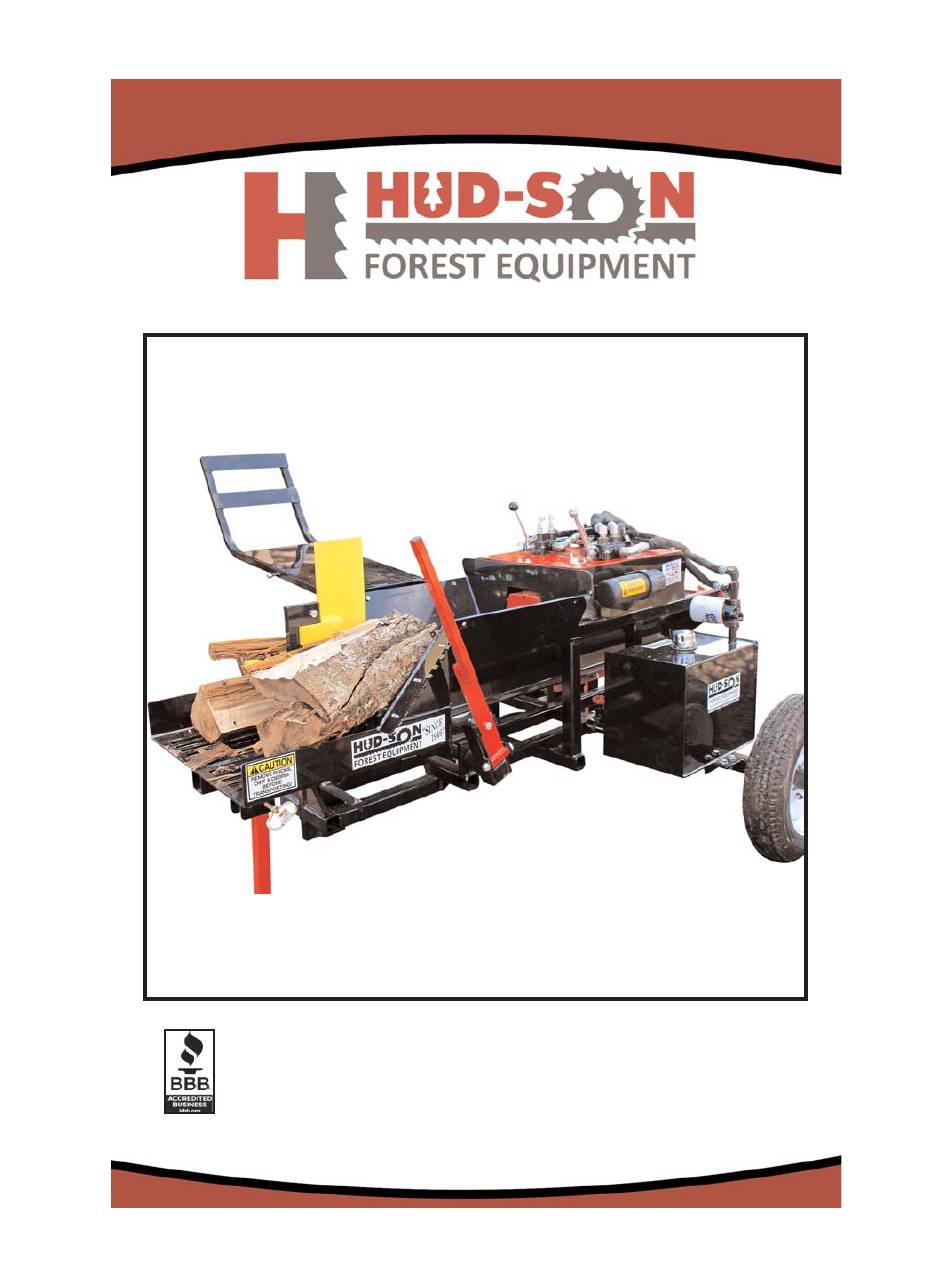

- Page 1 WWW.HUD-SON.COM • 800.765.SAWS HUD-SON WOODSPLITTER OPERATOR’S MANUAL 8201 STATE ROUTE 12 • PO BOX 345 • BARNEVELD NEW YORK 13304...
-
Page 2: Table Of Contents
F R O M H U D - S O N Thank you for your purchase of a woodsplitter from Hud-Son Forest Equipment. We are pleased that you chose us as your supplier of your forestry equipment. Hud-Son Forest Equipment has been in the forestry business since 1965 and prides itself on developing new and innovative products for the forestry business. -
Page 3: Introduction
• Make sure the trailer hitch of the towing vehicle is equipped with a 2 inch ball. INTRODUCTION Purchaser Agreement By accepting the delivery of your woodsplitter by Hud-Son Forest Equipment you agree that you will not modify your mill from it’s original assembly. This will VOID any warranty from Hud-Son Forest Equipment. -
Page 4: Safety
Please use good judgement and keep safety in mind when operating Hud-Son machinery. Please read and follow ALL the instructions in this manual before operating the Hud-Son Mill safely at all times. These instructions were produced for your benefit. Your ability to understand and follow the instructions is essential for the safe operation of this prod- uct. - Page 5 Hud-Son Forest Equipment is not liable for damage to property or personal injury due to the failure of any person and/or operator to follow the instructions and recommendations set forth in this manual or any other instructions or recommendations contained in other literature issued by other vendor manuals in the owner's kit.
- Page 6 CAUTION - Be EXTRA careful around these guards may cause personnel injury or damage. BLADE LUBE TANK - be sure to use the areas, unsafe practices may cause personnel injury or damage. correct lubrication, if incorrect lube is used it may cause personnel injury or damage.
- Page 7 Operating Safety ALLOW ONLY ONE (1) PERSON TO LOAD AND OPERATE THE LOGSPLITTER. • ALLOW ONLY ADULTS to operate the log splitter. No one under the age of 18 should be allowed to operate the log splitter. • ALWAYS keep bystanders, including children and pets, at least twenty-five (25) feet away from the work area.
-
Page 8: Maintenance
Log Splitting Safety • ALWAYS keep your fingers away from any cracks that open in the log during the splitting operation. • ALWAYS make sure that both ends of the log you are splitting are cut as square as possible. This will prevent the log from sliding out of position while under pressure. Logs should be 24 inches or shorter in length. - Page 9 • ALWAYS allow for added length of the log splitter when turning, parking, crossing intersections, and in all driving situations. • ALWAYS be careful when backing up. You could jackknife your log splitter if care is not taken. • ALWAYS disconnect your log splitter from your towing vehicle before attempting to use it.
-
Page 10: Start Up
Refueling • ONLY refuel the log splitter outdoors in a clear area void of gas fumes or spilled gasoline. • ALWAYS use an approved fuel container to carry gasoline. • ALWAYS replace the log splitter gas cap and the fuel container cap securely. •... -
Page 11: Operation
Do not attempt to operate the log splitter without fully understanding all our instruc- tions, safety precautions, and/or warnings. If any doubt or question arises about the cor- rect or safe method of performing anything found in this manuals, contact HUD-SON FOREST EQUIPMENT 800-765-7297 Proper care is your responsibility. - Page 12 You must stay in the safe operating area at all times when the splitting wedge is in motion (whether extending or retracting). Never place any part of your body into a posi- tion that causes an unsafe operating condition. 1. Set your log splitter on flat, dry ground. Make sure you read all the recommendations from the "Safety"...
- Page 13 Operation - Horizontal Position Before loading and operating the log splitter, always wear protective gear, such as safety goggles, face shield, hearing protection, tight-fitting gloves without draw strings or loose cuffs, and steel-toed shoes. a. Place the log on the log splitter. Grasp the log on the sides near the middle of the block.
- Page 14 Operation - HDHV - Horizontal - Vertical Splitter WARNING Before loading and operating the log splitter, always wear protective gear, such as safety goggles, face shield, hearing protection, tight-fitting gloves without draw strings or loose cuffs, and steel-toed shoes. 6. Never split a log using an incorrect or unsafe method. a.
-
Page 15: Inspection And Maintenace
PROCESSOR FILTERS SHOULD BE CHANGED AFTER 10 HOURS OF INITIAL USE AND EVERY 100 HOURS THEREAFTER. HYDRAULIC OIL CHANGE HUD-SON FOREST EQUIPMENT recommends an oil and filter change every 100 hours of operation. IMPORTANT NOTICE Never run the log splitter unless the hydraulic oil tank is full. - Page 16 If fluid is injected into your skin, it must be treated immediately by a doctor familiar with this type of injury. Always replace frayed, kinked, or cracked hoses and/or other damaged hydraulic com- ponents with HUD-SON FOREST EQUIPMENT authorized parts and components. HUD-SON FOREST EQUIPMENT - PARTS DEPARTMENT 1-800- 765-7297...
-
Page 17: Mechanical Specifications
WARNING Do not remove the cap from the hydraulic tank or reservoir while the log splitter is run- ning. Hot oil, under pressure, could be expelled resulting in serious injury. Should it become necessary to loosen or remove any hydraulic fitting or line, be sure to relieve all hydraulic pressure by shutting off the engine, removing spark plug wire, and moving the valve control handle back and forth several times until no cylinder move- ment is visible. - Page 18 Mechanical Specifications (HUD-SON Model HDH-1, Manual start ) Frame ......Heavy Duty Reinforced Bridge Frame , standard Wedge .
- Page 19 Engine ....... . .14HP single cylinder Robbins Subaru Mechanical Specifications (HUD-SON Model LJVH Vertical/Horizontal) Frame .
- Page 20 Optional Attachments: HDH-LOG LOADER, 37" X 16" W/2' PLATFORM AVAILABLE FOR EACH HDH-MODEL. Call Hud-Son 1-800-765-7297...
- Page 21 WARNING To avoid personal injury or death, carefully read and understand all instructions pertain- ing to the HUD-SON FOREST EQUIPMENT log splitters. Do not attempt to modify , operate, or maintain our product without fully understanding all our instructions and safety precautions.
- Page 22 MAINTENANCE NOTES _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
- Page 23 6: The address for submission of claims 3. No action may be commenced until after the company has provided its decision Hud-Son Forest Equipment on the claim; PO Box 345 8201 State Route 12 4. All claims against the company for any...
- Page 24 Thank you for choosing 8201 State Rt. 12 PO Box 345 Barneveld, NY 13304 Fax: 315.896.2627 • info@hud-son.com We have an onsite technician available to answer any questions Monday - Friday 8 to 4:30 and Saturday from 8 to noon. 315-896-7297.
