Summary of Contents for Telma TRCM2 TL133013
- Page 1 TL133013 TELMA TRCM2 DYNOMOMETER USER GUIDE 21mar19jh...

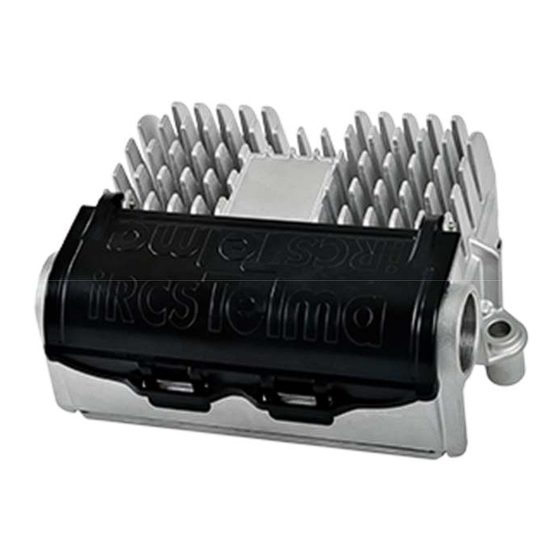

- Page 2 1.1 TRCM2 PWM control for Dynamometer or other industrial applications The Telma Retarder Control Module (TRCM2) is the control module used for Telma systems. It can be used in a dynamometer or other industrial application along with our iRCS power module using a simple variable voltage input to proportionally control power to the Telma using pulse width modulation.
- Page 3 TL133013 TRCM2 iRCS Dyno User Guide 1.3 iRCS Parts included with iRCS Page 3 of 6________________________________________________________________________21mar19jh...
- Page 4 TL133013 TRCM2 iRCS Dyno User Guide 1.4 Wiring Diagram Page 4 of 6________________________________________________________________________21mar19jh...
- Page 5 Under “Output Selection” choose “iRCS”. Under “iRCS Transducer Setpoints” type the following settings “Transducer Start Voltage”=0, “Transducer End Voltage”=5, “iRCS Telma Start”=0, and “iRCS Telma End”=100. Do not enable “Bluetooth” or “Dual Config”. Left click on the blue “Program Module” button and check on the right side that “Current Module Values”...
- Page 6 TL133013 TRCM2 iRCS Dyno User Guide 1.6 TRCM2 iRCS Dyno Diagnostics On the “Diagnostics page” under “Analog Inputs” go to “Transducer:” to observe input voltage to TRCM2. On the “iRCS Diagnostics” page under “TRCM2 to IRCS” go to “Brake Pedal Position” to observe % PWM being requested from iRCS.
Need help?
Do you have a question about the TRCM2 TL133013 and is the answer not in the manual?
Questions and answers
Telma 133013 input power of break system of break control unit
The Telma TRCM2 TL133013 brake control unit is available in two versions:
- 12V version (part of the iRCS CONTROL KIT INDUSTRIAL 12V, TIK14300)
- 24V version (part of the iRCS CONTROL KIT INDUSTRIAL 24V, TIK24300)
