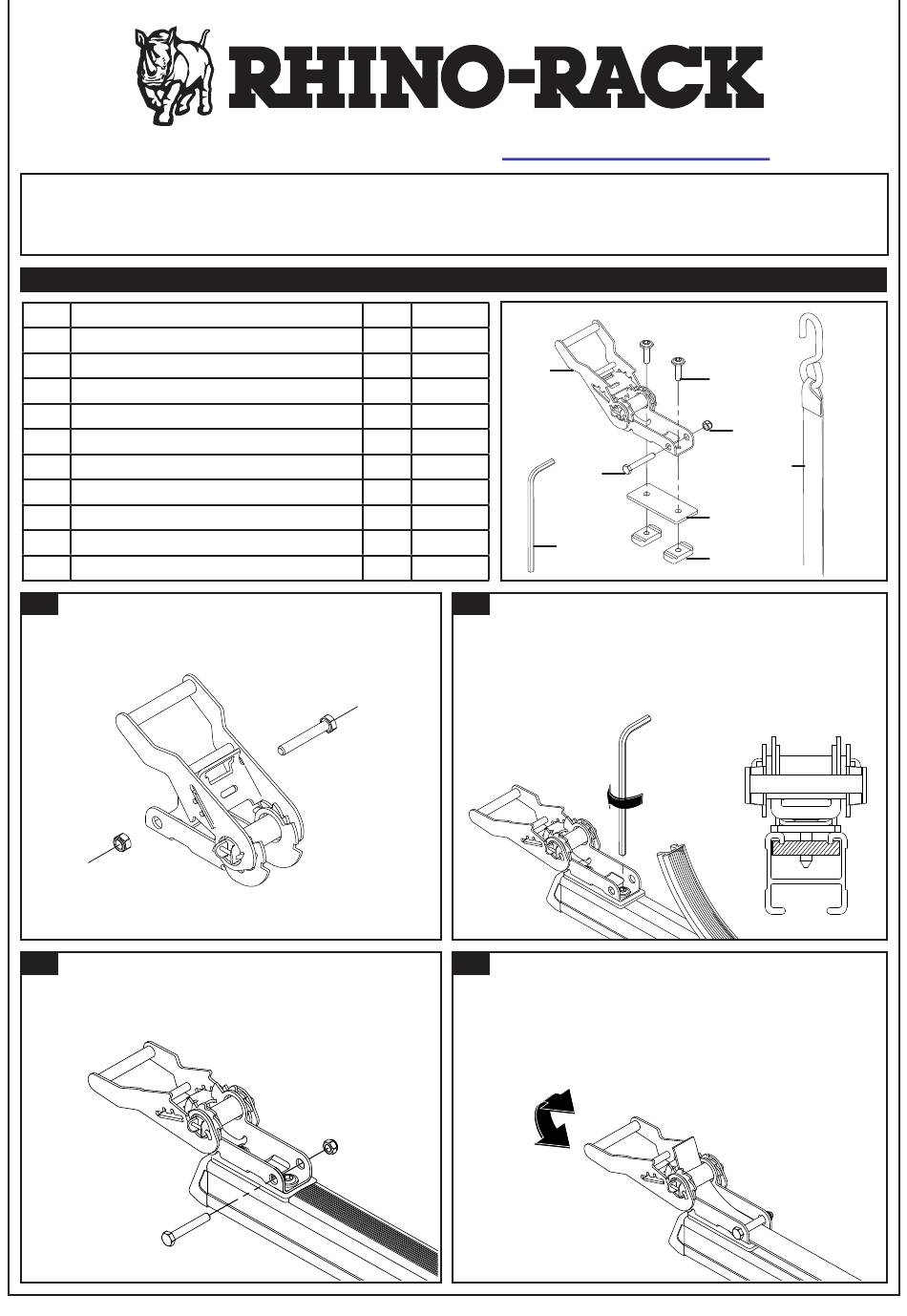

Rhino-Rack RRG Quick Start Manual

RRG, RRGL Rhino Commercial -
Important: Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the bike rack is installed in the correct locations.
Check the contents of kit before commencing fitment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Item Component Name
1 25mm Stainless Steel Ratchet
2 M6 x 44mm Hex Head Bolt
3 5mm Hex Allen Key
4 M6 x 25mm S/S Serrated Screw
5 M6 Nyloc Nut
6A 2.0m Black Strap with Hook
6B 4.0m Black Strap with Hook
7 80mm x 35mm x 4mm Ratchet Plate
8 M6 Channel Nut
9 Fitting Instruction
1
Remove the M6 x 44mm nyloc nut and M6 x 44mm
hex head bolt.
3
Assemble the M6 x 44mm hex head bolt through the
ratchet body and fit the nyloc nut. Tension the nut to
5NM, enough to allow the M6 x 44mm hex head bolt
to rotate.
Ratchet Grab With Strap
Parts List
Qty Part No.
1 C062
1
1 B133
1 H002
2 B131
1 N013
1 C031
1 C090
1 C041
2 N002
1 RR15
2
Place the ratchet assembly onto the Rhino crossbar.
Using the allen key turn the M6 x 25mm serrated screws
so that the channel nut rotates and locates across the
crossbar, tighten. Check that the grooves in the channel
nuts locate in the crossbar section when tightened. Trim
rubber buffer strip to suit.
4
Insert the webbing strap under the M6 x 44mm hex head
bolt and thread through the slot in the ratchet spool.
When fastening loads, pull the strap through the spool slot
until the webbing strap is firm. Tension fully by cycling the
ratchet lever handle backwards and forwards. To release
the webbing strap, lift the ratchet release lever and open
the ratchet lever handle fully to the locked position.
4
6A or 6B
2
7
3
8
5
