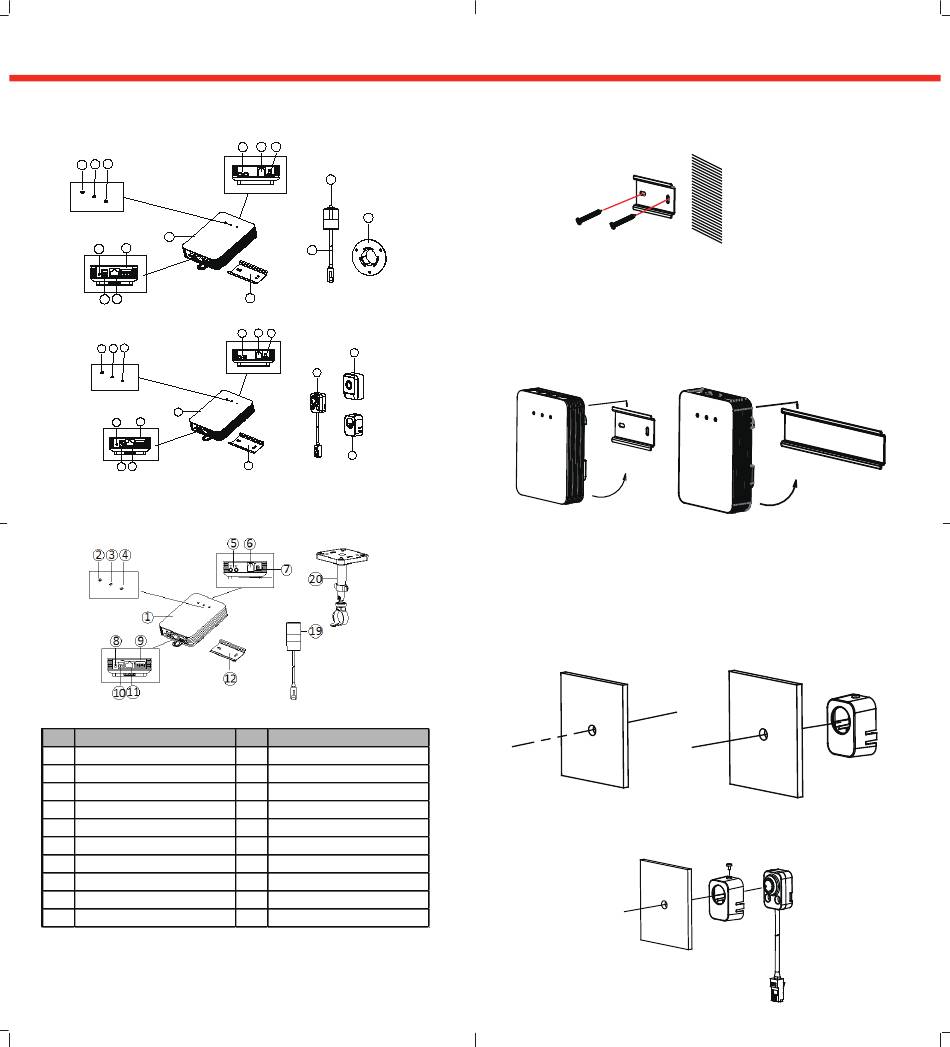

Safety Systems LTCMIP183 Quick Installation Manual

Quick Installation Guide
9 10 11
1
15 18
LAN(PoE)
RXD TXD GND IN1 1B 1A
DC 12V
RESET
16 17
Covert Camera with Cylindrical Sensor
9 10 11
1
15 18
LAN(PoE) RXD TXD GND IN1 1B 1A
DC 12V
RESET
16 17
Covert Camera with Block-shaped Sensor
Covert Camera with Fixed Focal Unit
No. Description
1 Main Unit
2 Power Indicator LED
3 Status Indicator LED
4 Link Indicator Led
5 Audio Interface
6 RJ-12 Cable
7 Micro SD Card Slot
8 RESET Button
9 RS-232 &Alarm Interface
10 Power Interface
Note:
Press RESET button about 10s when the camera is powering on or
rebooting to restore the default settings, including the user name,
password, IP address, port No., etc.
Covert Network Camera
12 13 14
VIN1
AUDIO AUDIO
IN OUT
SD
6
8
7
2
12 13 14
4
VIN1
AUDIO AUDIO
IN OUT SD
3
5
2
No. Description
11 PoE & Network
12 Mounting Rail
13 Block-Shaped Sensor Unit
14 Decorative Cover
15 Straight Mounting Bracket
16 Cylindrical Sensor Unit
17 RJ-12 Interface
18 Round Rail Mounting Bracket
19 Fixed Focal Camera
20 Ceiling Mounting Bracket
Installation of Main Unit
1. Fix the standard mounting rail on the mounting surface.
2. Hang the hook which is on upper-side of the main unit onto the
rail, press a little harder on the lower part of the main unit, and
then the elastic clasp will be automatically buckled.As shown in
below left figure.
If you already had a standard rail to be installed, you can buckle
the main unit onto the installed rail directly.As shown in below
right figure.
Installation of Block-Shaped Sensor Unit
1. Drill on the mounting surface.As shown in below left
figure.
2. Remove a side of the adhesive tape on the bracket. Paste the
bracket on the mounting surface with aligning with the drilling
hole.As shown in below right figure.
3. Install the Block-shaped sensor unit into the bracket and make it
to be buckled.
4. Tighten the fastening screw on the top of the bracket.
