E Fold (HP358E)

Power Wheelchair

Owner's Manual

Table of Contents

Need help?

Do you have a question about the E Fold and is the answer not in the manual?

Questions and answers

Summary of Contents for First Choice Mobility E Fold

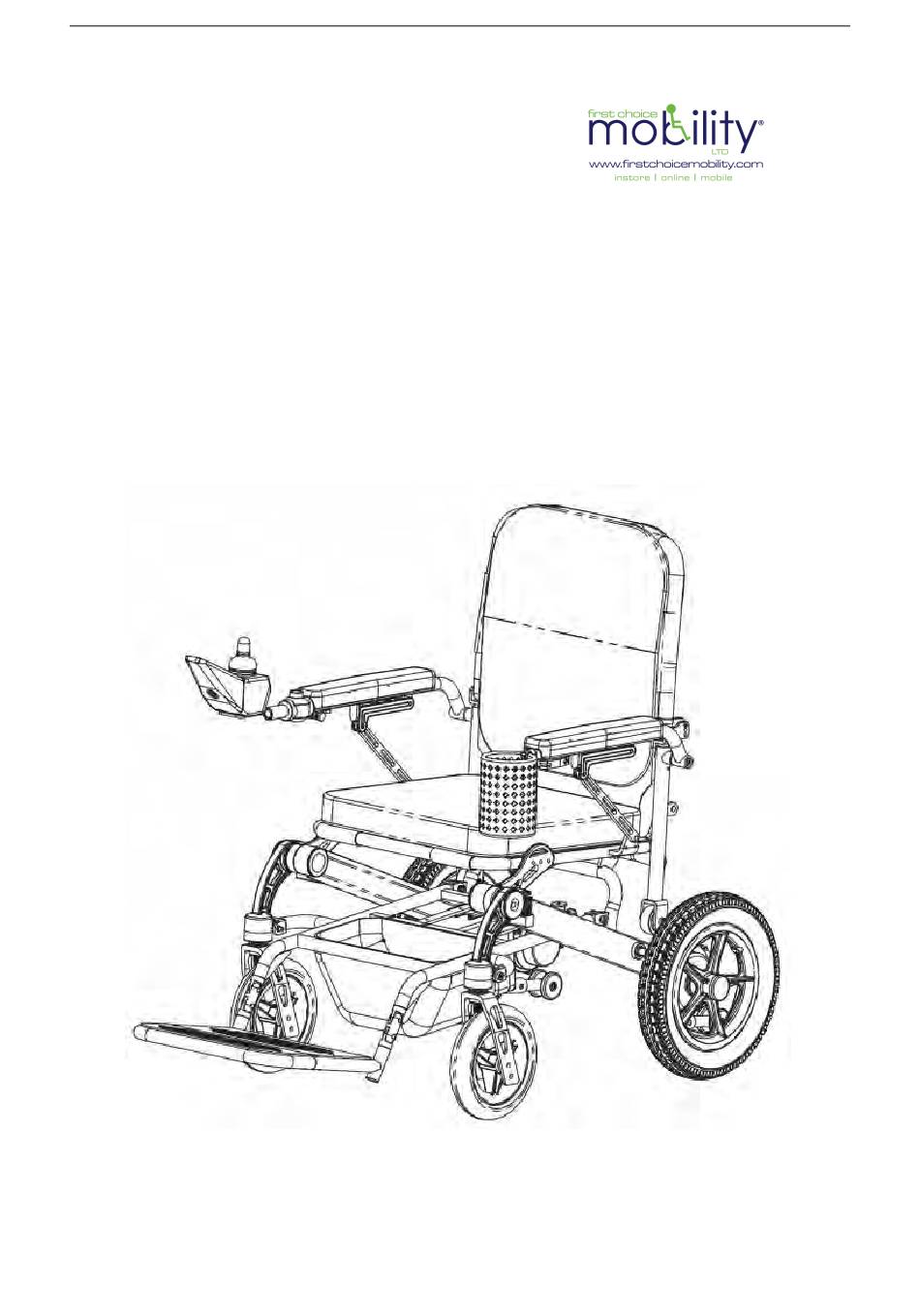

Page 1 E Fold (HP358E) Power Wheelchair Owner’s Manual...
Page 2 Please read this owner's manual carefully before operating your HP358E Power Wheelchair and keep it for future reference. Rev.: V.01 Dear Customer: Thank you for purchasing your HP358E power wheelchair. Please read this owner's manual thoroughly before operating your HP358E Power Wheelchair. If there is anything in this manual you do not understand, or if you require any additional assistance, please contact the authorized Hi-fortune distributors.
Page 3: Table Of Contents
CONTENTS 1. SAFETY............4 2. PARTS INTRODUCTION......6 3. SPECIFICATIONS........7 4. BATTERY AND BATTERY CHARGING...8 5. ASSEMBLY AND OPERATION....9 6. TROUBLE SHOOTING.......17 7. CARE AND MAINTENANCE....19 8. WARRANTY……...……......21...
Page 4: Safety
1.SAFETY ■ Pre-ride safety notice ● Please drive on the pavement. Otherwise, drive on the proper side. ● Mind the traffic once there is no pavement ahead or you have to drive on the carriageway. ●Pay attention to the pedestrians and vehicles when crossing the road. ●...
Page 5 ● Do not attempt to drive your power wheelchair on a steep incline. Never drive your power wheelchair on a incline more than 10°for 100m or above. If more than the climbing limitation, the power shall be automatically cut off and circuit breaker under charging port of battery box must be re-started.
Page 6: Parts Introduction
2.PARTS INTRODUCTION ●PARTS INTRODUCTION 1..Armrest 2. Cushion 3. Footrest 4.Front Wheel Assembly 5. Rear Wheel Assembly 6. Motor 7.Backrest 8. Cup Holder(optional) 9. Storage bag 10. Controller 11. Front Suspension 12. Battery box 13. Anti-tip wheel 14.Reflector 15. Folding and Locking Mechanism 16.Backrest adjustment button...
Page 7: Specifications
3. SPECIFICATION HP358E Model Length:1020mm Width:560mm Height:845mm Size 6km/h Max Speed 925mm Min. turning radius 10°±1° Maximum Climbing Capacity 2 gears, rear wheel drive 2*24Vdc*250W Drive system Intelligent brake system （joystick control） Braking system 125kg Weight Capacity Drive wheel 2*12.5”solid PU, plastic hub (optional aluminum hub) Tyres Front wheel 2*6”, solid PU, plastic hub (optional aluminum...
Page 8: Battery And Battery Charging
4. Battery and Battery Charging ● Battery Lithium battery is used on this power wheelchair. Charge the battery 8-12 hours for initial use. ● Charger Charge the power wheelchair with DC29.4V/2A charger. ● Charging Method 1. Switch off the power wheelchair. 2.Charge the battery by plugging the charger into charging port of controller handle.
Page 9: Assembly And Operation
of charge for extended periods. 5.Keep the lithium battery away from fire, water and overheat(45℃) and avoid violent vibration, crash and positive and negative pole shorted. 6.Do not overcharge the lithium battery. Charging period shall be no more than 20 hours. 7.Never arbitrarily discard the lithium battery, if needed, contact us or Hi-Fortune’...
Page 10 ● Operation of Controller 1. Power button: Power on and off the whole power wheelchair. Power system is activated once pressing the power button and the system is off after pressing again, 2.Joystick: Control the power wheelchair to move forward, backward, turn left/ right, speed up and park. Push the joystick straight forward after power on, the power chair will move forward.
Page 11 ●Installation and operation of Battery Box 1. Hold the handle bar of battery box with one hand , then push it horizontally into slot under the chassis until it reaches the end and connect with the its connector. 2. After it is well connected, prop the battery box with knob to avoid movement of battery box when driving.
Page 12 1.Battery box 2.Slot 3.Knob Remark：As an option,both battery box can be used at the same time. ●Operation of Electromagnetic Brake Disengage the handle to unlocked position and have the brake unlocked, the power wheelchair shall be driven by manpower (no matter the power is on or off, this function can be achieved after pulling this handle).
Page 13 1.To prevent the power wheelchair from backward tipping while going uphill. 2.To insert the anti-tipping wheel into hole and release the clip to disassemble the anti-tipping wheel (see image below) 3. 2 positions are available to adjust the height of anti-tipping wheels. 1.metal shrapnel 2.Anti-tip wheel assembly ...
Page 14 not in use so as to protect 2 keys on the controller and avoid the unnecessary hurt by touching the key accidently. 3. Replace the battery as long as LED indicator on the controller is not bright enough and folding or unfolding the wheelchair becomes difficult.
Page 15  Operation of Power Wheelchair 1.Operator is well seated on the power wheelchair. 2.Switch on the on/off button until 5 leds on power meter lit after a second. 3.Push the joystick slowly forwards until you hear the solenoid brakes operate, the power wheelchair may start move.
Page 16 6.Ensure the operator has no mental illness and other potential disease that may occur or may lose the operation ability when driving the power wheelchair. 7.Once taking medicines, please check with doctor whether the medicine will have an adverse effect on your safe operation of power wheelchair.
Page 17: Trouble Shooting
6. TROUBLE SHOOTING Trouble shooting for PG controller Controller contains procedures for identifying the problems and trouble shooting. As soon as the diagnostic program detects problems or errors, 5 leds lit and rapidly flashes on the power meter of controller. Owner can try the following method to address the problem.
Page 18 Flash 8 times and A controller fault is indicated. Make sure that all Flash 8 times stop for 3 seconds, connections are secure. then repeat Flash 9 times and The parking brakes have a bad connection. Check the Flash 9 times stop for 3 seconds, parking brake and motor connections.
Page 19: Care And Maintenance
7.CARE AND MAINTENANCE ■ Daily Check To ensure the performance of power wheelchair and minimize the occurrence of failures so that you are able to have a safe and comfortable drive. Please pay attention to the following in daily use. 1.
Page 20 releasing it. Monthly check: 1. Make sure the battery is in good condition, clean the battery connector if necessary. 2. Ensure every connector on electric system is good contact. 3. Check if the fasteners are loose. 4. Ensure the front and rear wheels are not shaking. 5.
Page 21: Warranty
8.WARRANTY ● Warranty From the ex-factory date: （1） Main frame: 1 year repairing guarantee （2） Motors: 6 months free replacement and 1 year repairing guarantee （3） Charger and controller:6 months free replacement and 1 year repairing guarantee. （4） Battery: free replacement if capacity of battery less than 60% of rated capacity within half a year.
