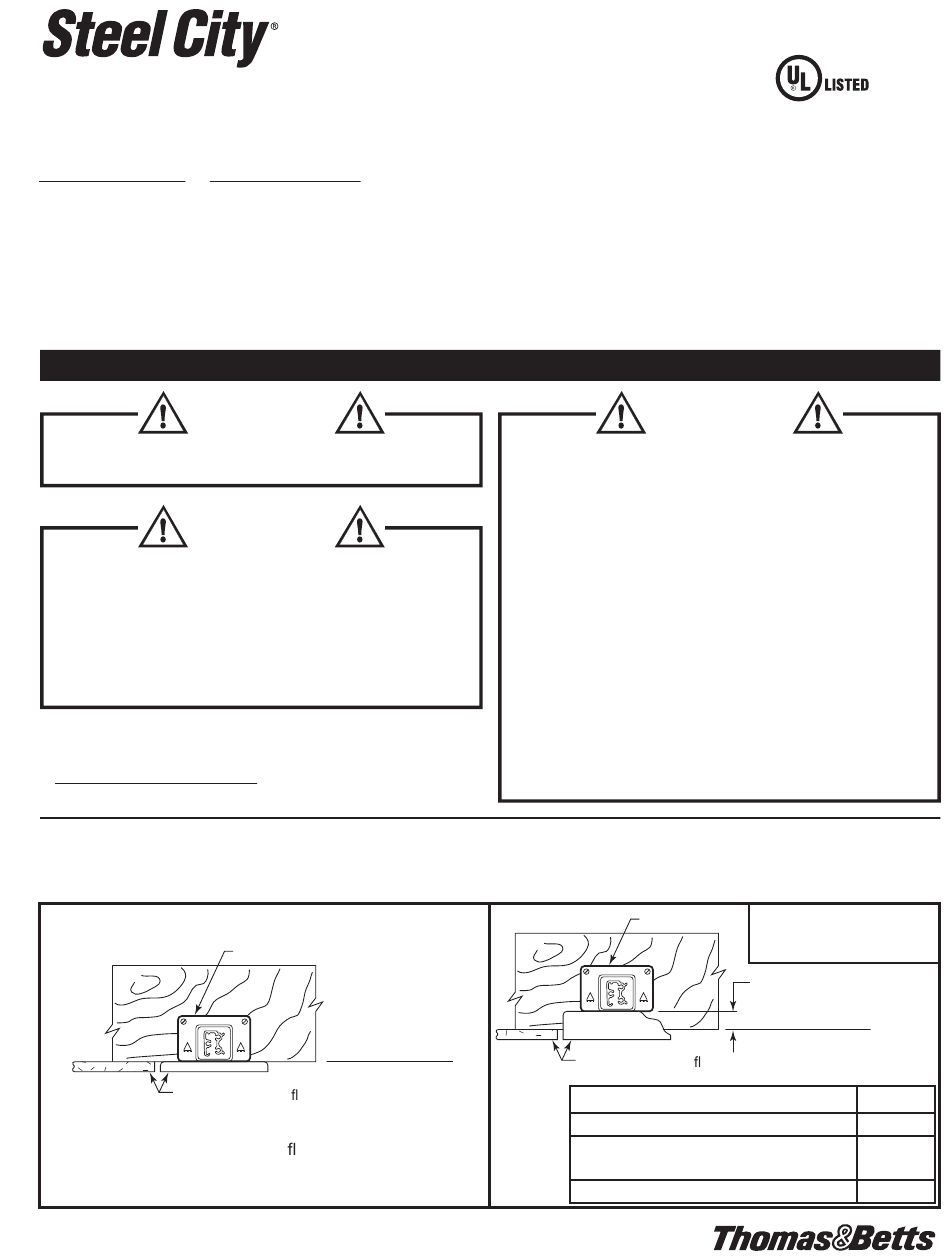

Steel City 56111CFB-BHL Instruction Sheet

Individual Cat. Nos .... Bulk Pack Cat Nos.
56111CFB-BHL ............... BPH-56111CFB ..................New Work Bar Hanger with 1/2" Deep Box. (Metallic Ceiling Fan Box)
54151CFB-BHL ............... BPH-54151CFB ..................New Work Bar Hanger with 1-1/2" Deep Box. (Metallic Ceiling Fan Box)
R54151CFBBHL.............. RBPH-54151CFB................New Work Bar Hanger with 1-1/2" Deep Box. (Metallic Ceiling Fan Box)
54151-1/2-CFB-BHL ....... BH-54151-1/2-CFB ..............New Work Bar Hanger with 1-1/2" Deep Box. (Metallic Ceiling Fan Box with 1/2" conduit KO)
54171CFB-BHL ............... BPH-54171CFB ..................New Work Bar Hanger with 2-1/8" Deep Box. (Metallic Ceiling Fan Box)
R54171CFBBHL.............. RBPH-54171CFB................New Work Bar Hanger with 2-1/8" Deep Box. (Metallic Ceiling Fan Box)
4070CFB-BHL ................. BPH-4070CFB ....................New Work Bar Hanger with 2-3/8" Deep Box. (Non-Metallic Ceiling Fan Box)
CFB-BHL ......................... BPH-CFB ............................New Work Bar Hanger without Box.
READ ALL INSTRUCTIONS AND WARNINGS CAREFULLY BEFORE PROCEEDING!

WARNING

DISCONNECT THE ELECTRICAL CIRCUIT SUPPLYING POWER
TO THE OUTLET PRIOR TO INSTALLATION.
CAUTION
TO PREVENT INJURY, THE INSTALLER MUST ENSURE THAT
THE HANGER IS SECURELY INSTALLED IN ACCORDANCE
WITH THESE INSTRUCTIONS BEFORE MOUNTING OR
CONNECTING A CEILING FAN OR LIGHT FIXTURE.
AFTER INSTALLATION OF THE HANGER, BE SURE TO
FOLLOW ALL MOUNTING INSTRUCTIONS WITH THE CEILING
FAN OR LIGHT FIXTURES.
— CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE
ANY QUESTIONS. —
IMPORTANT SAFETY NOTICE: USE ONLY METALLIC BOX AND
SCREWS PROVIDED IN KIT. DO NOT SUBSTITUTE!

INSTALLATION INSTRUCTIONS:

1. Expand the bar hanger to the length of spacing between the wood ceiling joists. Position the end-plates in
accordance with the model selected (See Figure 1 & Figure 2).
Part No.: 56111CFB-BHL & BPH-56111CFB
Reference drywall ush with bottom of box.
For 1/2 inch deep ceiling box,
position end-plates ush with
bottom edge of joist.
Figure 1
TA02408 D Page 1 of 2
NEW WORK CEILING FAN
AND LIGHT FIXTURE BAR HANGER
INSTRUCTION SHEET
END-PLATE
BOTTOM EDGE
OF JOIST
CAUTION
DO NOT EXCEED MAXIMUM WEIGHT RATINGS
FOR 4070CFB-BHL, BPH-4070CFB:
MAX LIGHT FIXTURE = 50 LBS.
MAX CEILING FAN = 35 LBS. (INCLUDES ACCESSORIES)
FOR 56111CFB-BHL, BPH-56111CFB, 54151CFB-BHL,
BPH-54151CFB, 54151-1/2-CFB-BHL, R54151CFBBHL,
BH-54151-1/2-CFB, 54171CFB-BHL, R54171CFBBHL &
BPH-54171CFB:
MAX LIGHT FIXTURE = 200 LBS.
MAX CEILING FAN = 70 LBS.
FOR CFB-BHL & BPH-CFB (Bar Hanger Only):
LOAD RATING IS ACCORDING TO SPECIFIC CEILING BOX TYPE
INSTALL THIS BAR HANGER SUPPORT ONLY IN
ACCORDANCE WITH APPLICABLE NATIONAL AND LOCAL
BUILDING AND ELECTRICAL CODES.
END-PLATE
Reference drywall ush with bottom of box.
Catalog Number
4070CFB-BHL, R54151CFBBHl & BPH-4070CFB
54151CFB-BHL & BPH-54151CFB
54151-1/2-CFB-BHL & BH-54151-1/2-CFB
Figure 2
54171CFB-BHL, R54171CFB-BHL & BPH-54171CFB
For deep ceiling box, see Table 1
for correct position of end-plates
above bottom edge of joist.
DEPTH
BOTTOM EDGE
OF JOIST
Table 1
Depth
1-7/8 inch
1 inch
1-5/8 inch
