Installation instructions for SAH-1 SIP Phone
Telephone Base Installation
The telephone can be adapted to desktop use or mount to the wall directly or via use of a wall plate.
Installation Option – Desktop Position

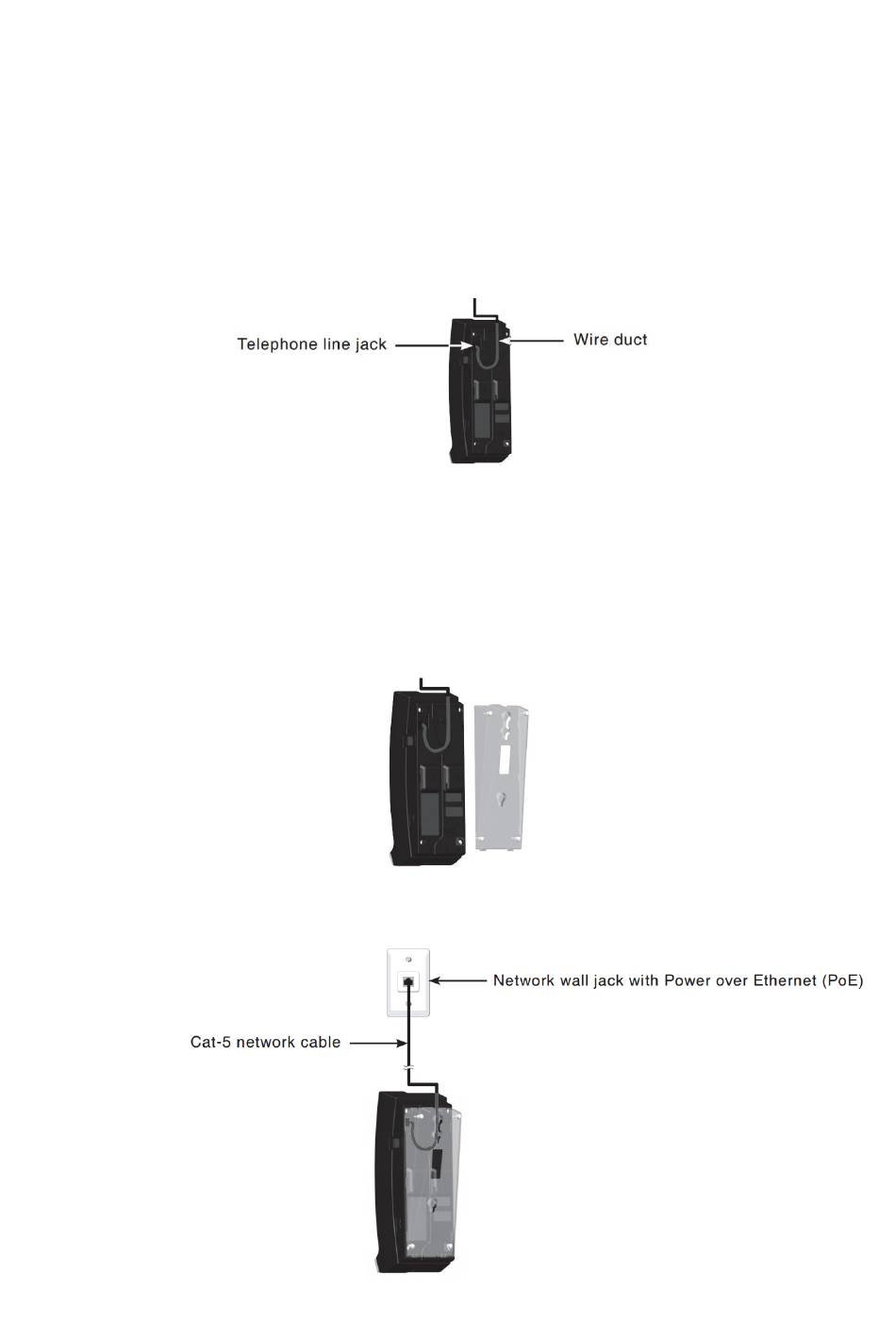

1. Turn the telephone base over with the bottom side facing up. Connect the supplied Cat-5
network cable to the telephone base and route along the wire duct as shown.
CAUTION: Use only the supplied Cat-5 network cable. Cat-5 network cable is not designed
2. Position the mounting bracket as shown. Insert the two small tabs of the mounting bracket
into the lower slots on the telephone base. Then press the large tab on the mounting bracket
and firmly push it into the upper groove on the telephone base.
3. Once the telephone base has been installed base as shown below, connect the coiled
handset cord to the telephone base.
for use in any other IT devices. Misuse of Cat-5 network cable on your other IT
devices shall be prohibited. To order a replacement, contact Jacques.
