Central Machinery 60769 Owner's Manual & Safety Instructions

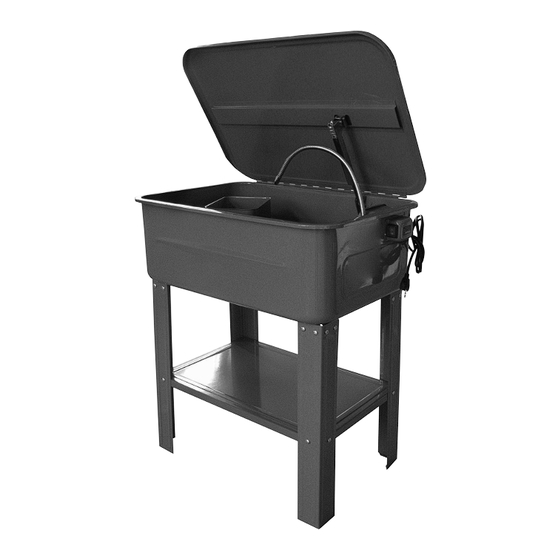

Parts washer with pump
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2012 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20a

Advertisement

loading
Need help?

Need help?

Do you have a question about the 60769 and is the answer not in the manual?

Questions and answers

Summary of Contents for Central Machinery 60769

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
  • Page 2 Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 60769...
  • Page 3 If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. 16. NEVER LEAVE PARTS WASHER RUNNING UNATTENDED. TURN POWER OFF. Item 60769 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4 9. Do not use an adapter to connect this Parts Washer to a different outlet. 5. Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the Parts Washer’s plug. Page 4 For technical questions, please call 1-888-866-5797. Item 60769...

  • Page 5: Save These Instructions

    6. When servicing use only identical replacement parts. which cannot be built into this product, but must be supplied by the operator. SaVE tHESE inStructiOnS. Item 60769 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 4. Turn the Tub over and place in a stable, well-ventilated area. 5. Place the Filter (17) inside of the Filter Cover (16). Slide Filter and Filter Cover into place on Pump Housing Cover (15). Page 6 For technical questions, please call 1-888-866-5797. Item 60769...
  • Page 7 Switch Box (21) 7. Connect the Tube (24) to the Elbow (26). Tube (24) Pump Housing (18) Elbow (26) Tub (7) Figure D: tube installation Figure E: Switch Box installation Item 60769 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 3. There must not be objects, such as utility lines, nearby that will present a hazard while working. Page 8 For technical questions, please call 1-888-866-5797. Item 60769...

  • Page 9: General Operating Instructions

    3. Place object(s) to be cleaned into remove the object(s) from the cleaning fluid the cleaning solution. and air dry or wipe with clean shop towel. 6. Close the Cover. Item 60769 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10 2. Turn the Switch to the OFF position. 6. Reattach the Tube to the Elbow, and 3. Unplug the Power Cord from the electrical outlet. replace the Pump Housing Cover. Page 10 For technical questions, please call 1-888-866-5797. Item 60769...
  • Page 11 If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Item 60769 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 pLEaSE rEaD tHE FOLLOWinG carEFuLLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
