CREE LIGHTING SmartCast CSC-CPS-120V Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2. Must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. Indoor use only.
Pour usage interieur seulement.
4. For use with Cree Lighting SmartCast Wireless Gateway
Model CSC-GW-CWC-W only.
5. For installation in a max. 40°C environment.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
1
1 of 2
DIN Rail
CSC-CPS-120V
SmartCast
®
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
INCLUDED IN KIT:
• Power Supply
• Din Rail
• RJ45 Socket Harness
SUPPLIED BY CUSTOMER:
• UL Listed Junction box - dimensions
4-11/16 x 4-11/16 x 3 inches or greater. Metal or
other plenum rated material
• Junction cover
• Mounting and ground screws
• CAT5e Plenum rated cable with RJ45
termination. – length as needed
• UL Listed conduit, tubing and fittings that
comply with UL514B (as necessary)
• UL Listed Strain reliefs (as necessary)
INSTALLATION

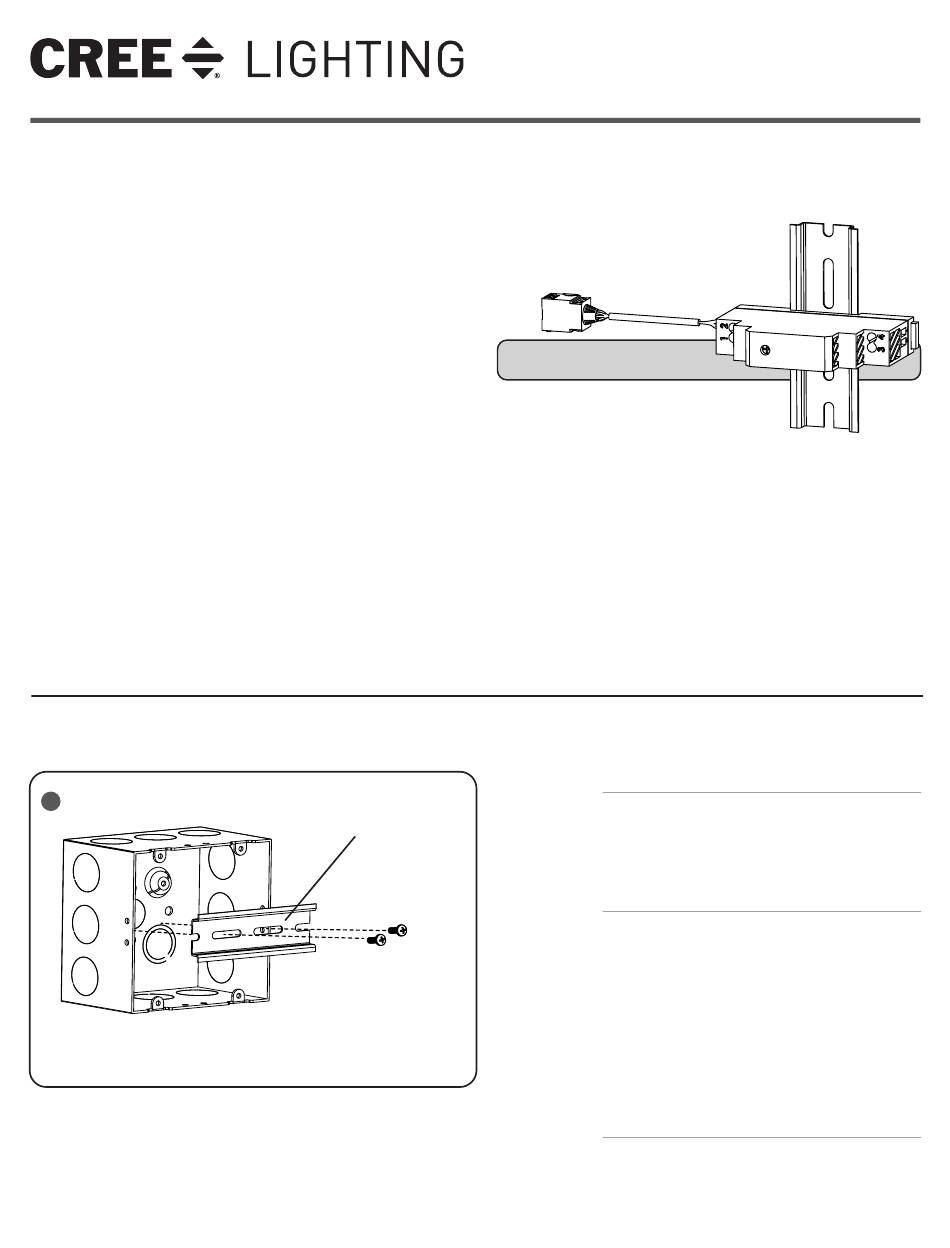

STEP 1:
Use customer supplied screws to mount customer
supplied junction box and DIN Rail section to wall,
stud, or other mounting surface. See Figure 1.
POE Power Supply
Junction Box Mounting
LPN00654X0001A0_B
