Summary of Contents for KREBS VK2000

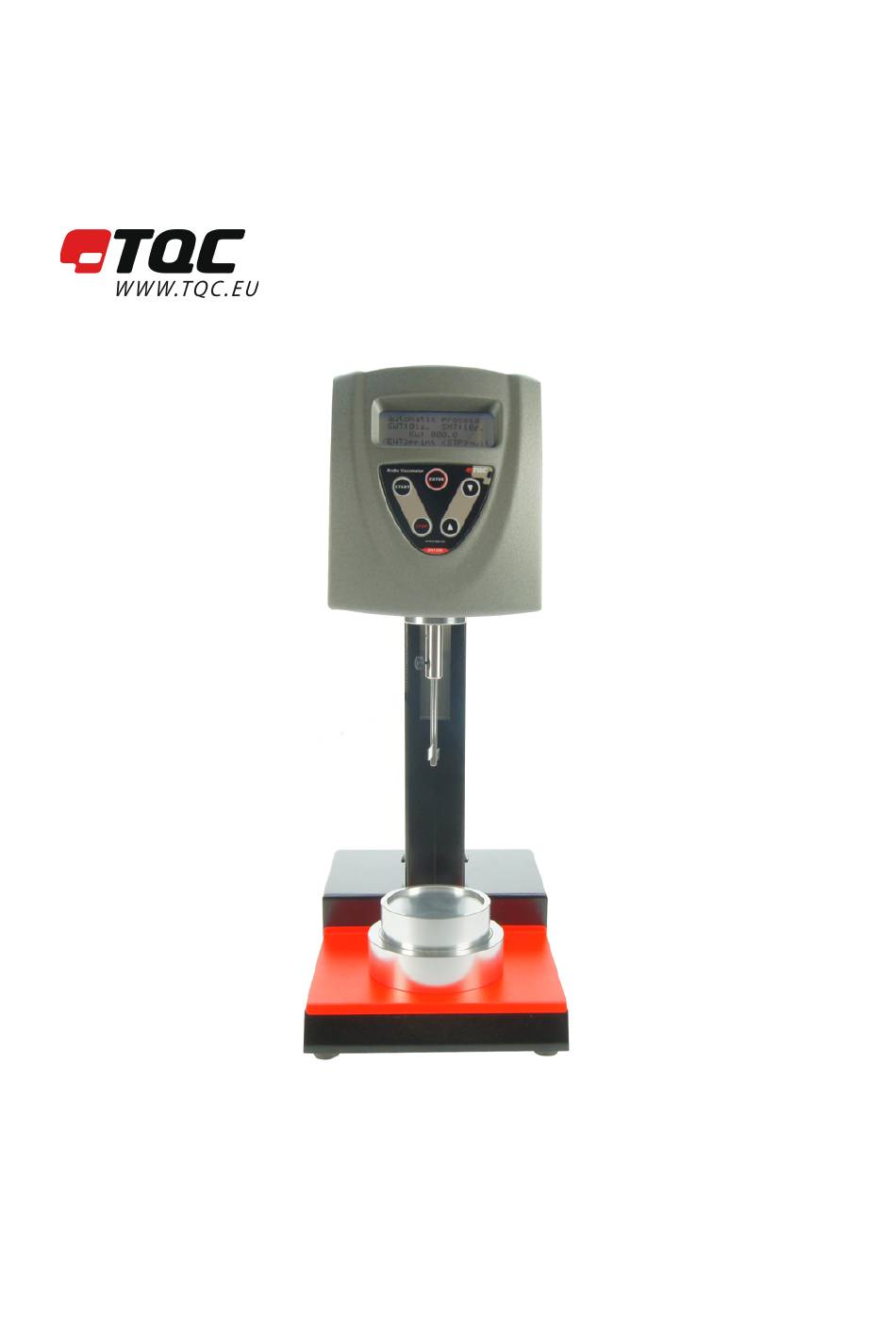

- Page 1 KREBS VISCOMETER VK 2000 DV1300 南北潮商城 ｜ ｗｗｗ．ｎｂｃｈａｏ．ｃｏｍ...
- Page 2 User manual (Stand1.1 – 01/10) 南北潮商城 ｜ ｗｗｗ．ｎｂｃｈａｏ．ｃｏｍ...
-
Page 3: Table Of Contents
Contents 1 General information ................1 1.1 Introduction ....................1 1.2 Intended use ....................1 1.3 Security symbols ..................1 1.4 Safety notes....................2 1.5 Certification, warranty and documentation..........3 2 Technical data..................4 3 Setting up the viscometer ..............5 3.1 Reception and unpacking of the instrument ..........5 3.2 Setup ......................6 3.3 Instrument connections................6 3.4 Setting up the spindle................7... -
Page 4: General Information

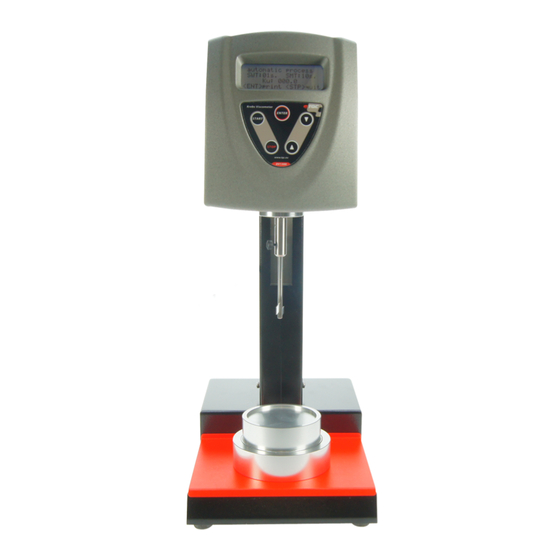

1 General information 1.1 Introduction The Krebs VK 2000 is a high precision viscometer used for measuring the viscosity of paints, varnishes, adhesives, pastes and liquid inks according to ASTM D562 standard. The viscometer delivers readings in three different units: krebs units, centipoises and grams. -
Page 5: Safety Notes
Independent of the instructions contained in this manual, everyone who operates the Krebs VK 2000 viscometer is obliged to know and observe the security and hygienic measures of the laboratory where this device is operated. -
Page 6: Certification, Warranty And Documentation
1.5 Certification, warranty and documentation Viscotech Hispania, S.L. certifies that this instrument has been tested Certification and checked carefully. Its technical data has been verified before shipment to be in accordance with the published specifications. The instrument complies with applicable international safety regulations. Warranty This MYR product is warranted against defects in material and workmanship for a period of 2 (two) years. -
Page 7: Technical Data
2 Technical data Krebs Viscometer VK 2000 voltage 100-240V ±10% Power frequency 50-60Hz requirements consumption 0,2A fuses 1 x 2 AT Speed One unique speed: 200 rpm ±1 rpm Viscosity range UNIT RANGE RESOLUTION 40,2 - 0,1 KU - 1.099 1,0 g - 5.274... -
Page 8: Setting Up The Viscometer
Remove all packing straps, protectors and accessories used during transport. Recyclable materials are to be disposed in the containers provided therefore. Krebs viscometer mod. VK 2000 Scope of delivered parts Standard KREBS-type spindle (blade spindle) Adapters for big and small cans (1 USA pint y ½... -
Page 9: Setup
3.2 Setup To set up the Krebs viscometer VK 2000 is very simple, because it only requires the adjustment of the big and the small container adapters (to accommodate respectively cans of 1 and ½ pint ) and the spindle. -
Page 10: Setting Up The Spindle
The KREBS viscometer should be cleaned in regular periods of time. To carry out this operation, please observe following instructions: Use a clean piece of cloth to clean the instrument and the front panel. -
Page 11: Operation
Working Units Use UP and DOWN bottoms to scroll and select the measurement unit you want to work with: Ku (Krebs units), cP (centipoises) and g (grams). Once you reach the desired unit, press ENTER to confirm. The SWT (Sample Wait Time) is the time that the spindle remains... - Page 12 Use the UP and DOWN bottons to scroll and select the time you want the spindle to remain in the fluid before starting to rotate. When you reach the desired value, press ENTER to confirm. SMT (Sample Measure The SMT (Sample Measure Time) is the rotation time of the spindle within the fluid before the viscosity reading appears on the display.
- Page 13 Use the UP and DOWN bottons to scroll and select the day of the week (the first concept that flashes). When you reach the desired value, press ENTER to confirm. Select afterwards the date. Use the UP and DOWN bottons to scroll and select respectivelly the unit that flashes: day (dd), month (mm) and year (yy) –in the EU-mode–.
-
Page 14: Start) Automatic Mode Measurement
Fill 450 - 460 ml of sample in the 600 ml beaker (low model) delivered with the instrument and start working in automatic mode. It is possible to change measurement units, KU (Krebs units), cP (centipoises) and g (grams), by pressing UP and DOWN buttons on the working mode selection screen. - Page 15 automatic process SWT: 01s. SMT: 05s. Ku: 000.0 Going DOWN When the spindle reaches its lowest position, the immersion time in the fluid begins to count down (SWT). You may stop the process at this moment by pressing the STOP button, as showed on the display.
-
Page 16: Enter) Manual Mode Measurement
Print results Should the viscometer be attached to a serial printer, it is possible to print the viscosity readings in 3 different units (Krebs, grams and centipoises) along with identification details of viscometer, and the date and time of operation by pressing ENTER (see fig. below). -
Page 17: About Viscometer's Calibration
6 About viscometer’s calibration The instrument delivered has been calibrated with certified patrons (in Krebs units) by the manufacturer before shipping. We strongly recommend carrying out calibrations on a regular basis depending on operation frequency. For the correct calibration of the viscometer, please contact your local dealer. -
Page 18: Accessories (Optional)
(Krebs) 8 About viscosity The digital KREBS viscometer is based on the stormer mechanical Description of KREBS system (one blade that rotates at constant speed). The variation unit between products (viscosity) is determined by modifying the weight (grams) needed to maintain such constant velocity. -
Page 19: Viscosity Table
9 Viscosity table 60,9 77,2 89,1 1104 97,6 1472 104,1 1841 110,1 2210 116,1 2579 61,1 77,4 89,2 1109 97,7 1477 104,2 1846 110,2 2215 116,2 2584 61,4 77,6 89,3 1113 97,8 1482 104,2 1851 110,2 2220 116,2 2589 61,6 77,8 89,4 1118... - Page 20 121,0 2948 125,1 3317 129,7 3686 133,8 4054 137,0 4423 1001 139,8 4792 1076 141,0 5161 121,1 2953 125,1 3322 129,8 3691 133,9 4059 137,1 4428 1002 139,8 4797 1077 141,0 5166 121,1 2958 125,2 3327 129,8 3695 133,9 4064 137,1 4433 1003...
-
Page 21: Troubleshooting
Troubleshooting Problem Solution The instrument doesn’t work Check the mains switch Check the connection to the mains The instrument makes no reading = 0 when Check if instrument is correctly levelled measuring without sample Contact your distributor The viscosity reading is unstable or not very Check if instrument is correctly levelled accurate Check if temperature of sample is stable...
