DBS-1100
MANUAL BANDING TOOL
SEE PAGE 2 FOR IMPORTANT INFORMATION CONCERNING
LIMITED WARRANTY, AND LIMITATION OF LIABILITY.
APPLICATION
EMI/RFI bands meeting AS85049 /128 Rev. A and other OEM standards.
The Daniels DBS-1100 Series Manual Banding Tools comply with all
performance requirements set forth in AS85049 /128 Rev. A.
INTRODUCTION
The Daniels DBS-1100 (M81306/2-01 A) Manual Banding Tool 1s primarily
designed for termination of EMI/RFI shielding materials.
1.0 OPERATION
Insert the mechanical band into
1 . 1
the DBS-1100 Banding Tool at
least 1.75 inches, the band loop
shall be oriented on the upper side
of the tool's nose (see Figure 1).
the movable handle of the tool one complete
stroke to insure that the band has been
captured by the gripping mechanism.
The band must be double-looped as
shown in Figure 6.
1.2 Position the connector and the shield assembly through the band
allowing the connector to be on the left side of the tool.
1.3 Orientate the shield terminations under the band while actuating the
movable handle of the tool. Continue tool actuation until the band is
snug and tool resistance is felt, then release the movable
handle and actuate the handle one full stroke thus locking the movable
handle (locking occurs at the predetermined poundage). DO NOT
ATTEMPT TO PULL THE HANDLE OF THE TOOL OPEN. WHEN THE BAND
IS CUT, THE MOVABLE HANDLE WILL OPEN AUTOMATICALLY.
DANIELS MANUFACTURING CORP., 526 THORPE ROAD, ORLANDO, FL 32824, USA, PHONE 407 /855-6161, FAX 407 /855-6884
COPYRIGHT ©2015 DANIELS MANUFACTURING CORP., USA.
5/15
REV. L
FACING UPWARD AS SHOWN)
Actuate
WWW.DMCTOOLS.COM E-MAIL: DMCOOMCTOOLS.COM
PAGE 1
m
..,.DANIELS
MANUFACTURING
_.,..,,
CORPORATION
DATASHEET
0
MOVABLE
HANDLE

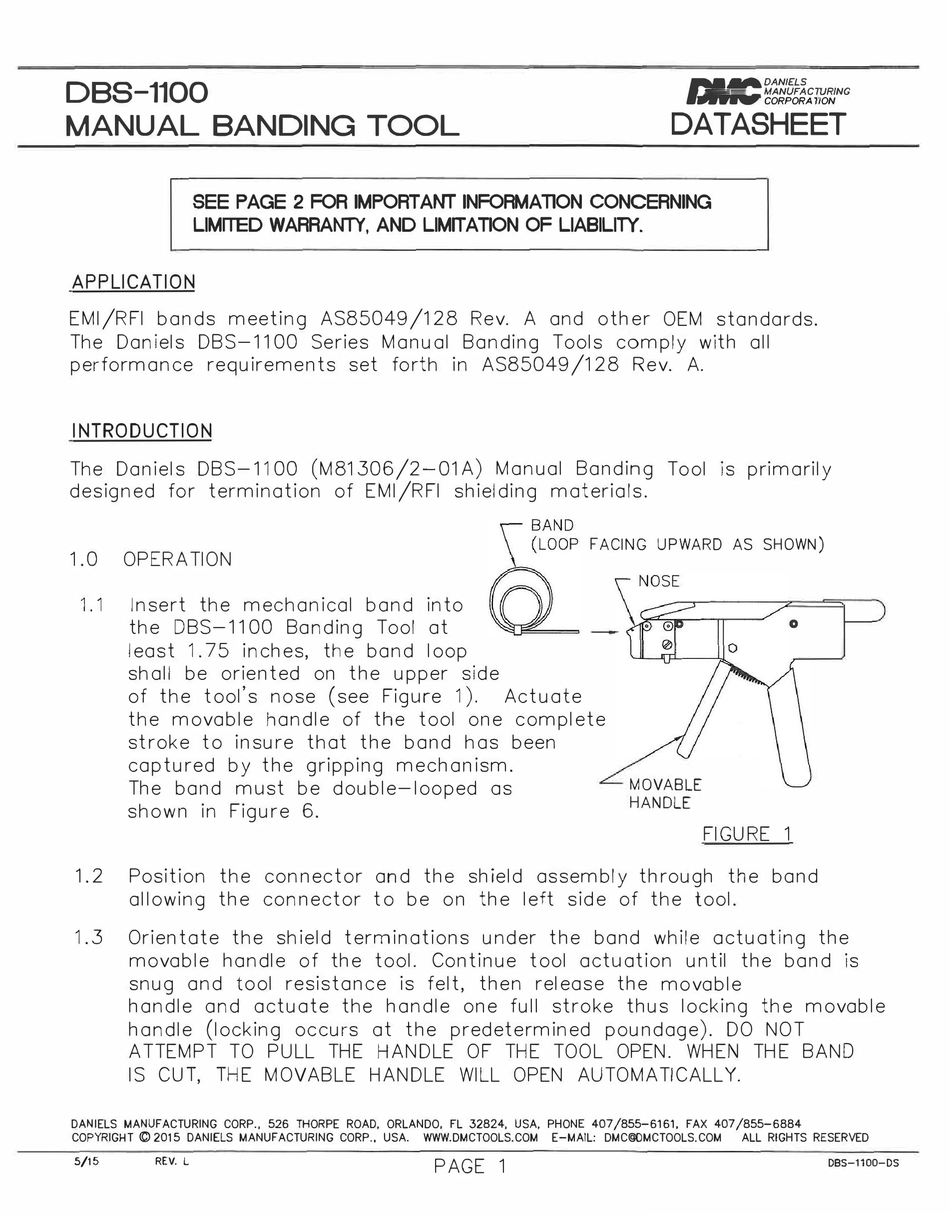

FIGURE 1
ALL RIGHTS RESERVED
DBS-1100-DS
