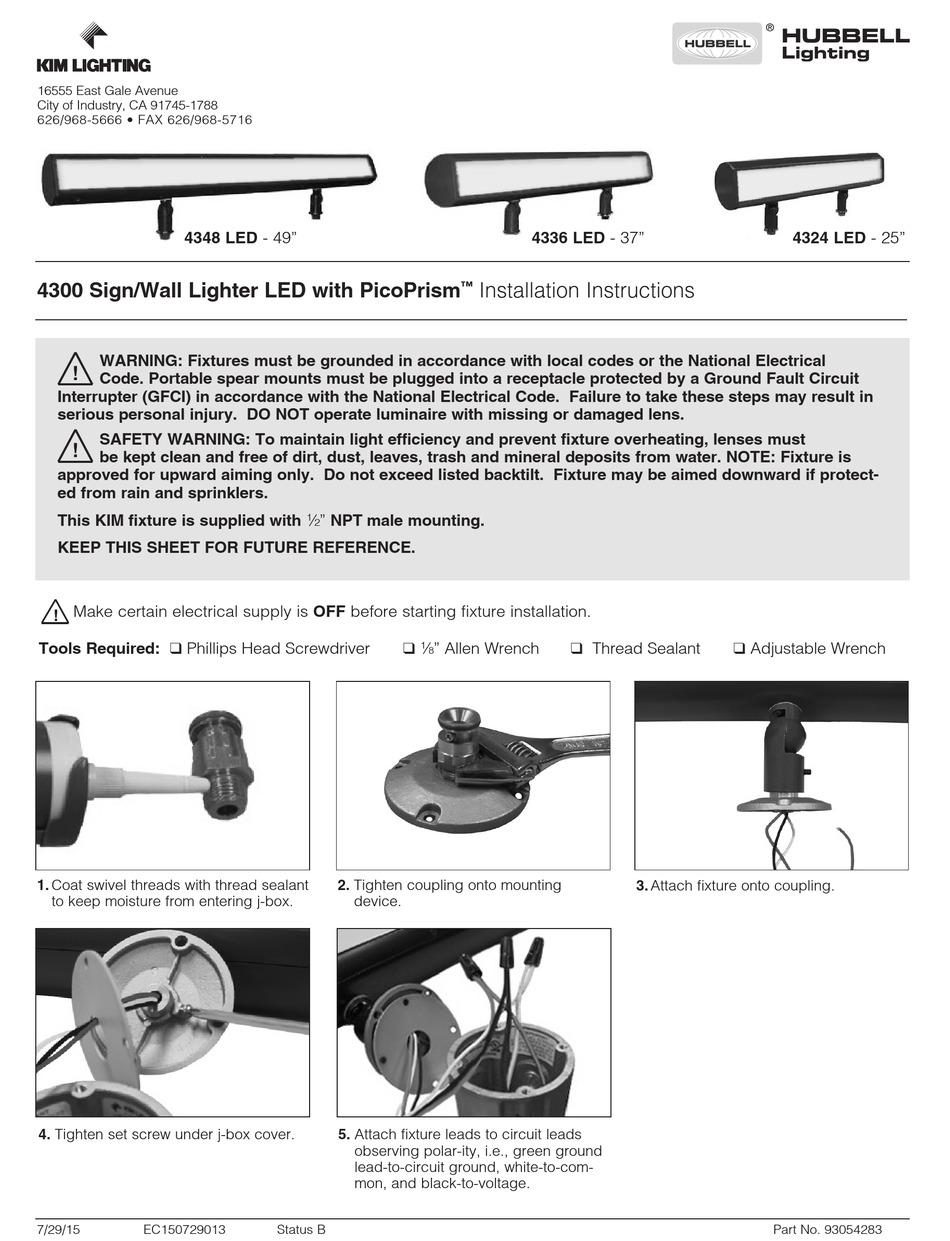

HUBBELL LIGHTING KIM LIGHTING PicoPrism 4348 LED Installation Instructions

16555 East Gale Avenue
City of Industry, CA 91745-1788
626/968-5666 • FAX 626/968-5716
4348 LED - 49"
4300 Sign/Wall Lighter LED with PicoPrism
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical
!
Code. Portable spear mounts must be plugged into a receptacle protected by a Ground Fault Circuit
Interrupter (GFCI) in accordance with the National Electrical Code. Failure to take these steps may result in
serious personal injury. DO NOT operate luminaire with missing or damaged lens.
SAFETY WARNING: To maintain light efficiency and prevent fixture overheating, lenses must
!
be kept clean and free of dirt, dust, leaves, trash and mineral deposits from water. NOTE: Fixture is
approved for upward aiming only. Do not exceed listed backtilt. Fixture may be aimed downward if protect-
ed from rain and sprinklers.
This KIM fixture is supplied with K" NPT male mounting.
KEEP THIS SHEET FOR FUTURE REFERENCE.
Make certain electrical supply is OFF before starting fixture installation.
!
Tools Required: q Phillips Head Screwdriver
1. Coat swivel threads with thread sealant
to keep moisture from entering j-box.
4. Tighten set screw under j-box cover.
7/29/15 EC150729013
q B" Allen Wrench
2. Tighten coupling onto mounting
device.
5. Attach fixture leads to circuit leads
observing polar-ity, i.e., green ground
lead-to-circuit ground, white-to-com-
mon, and black-to-voltage.
Status B
4336 LED - 37"
Installation Instructions
™
q Thread Sealant
3. Attach fixture onto coupling.
4324 LED - 25"
q Adjustable Wrench
Part No. 93054283
