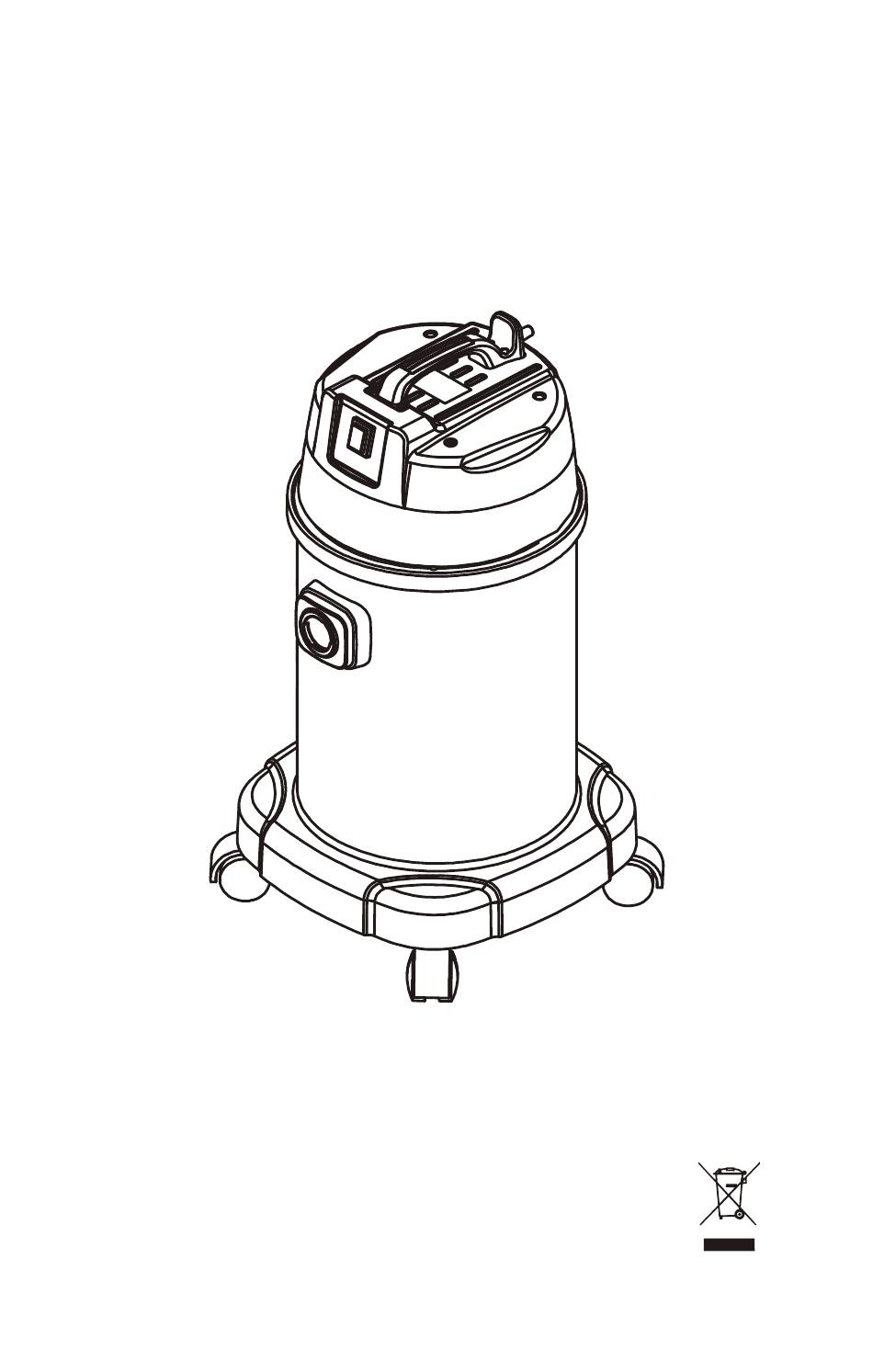

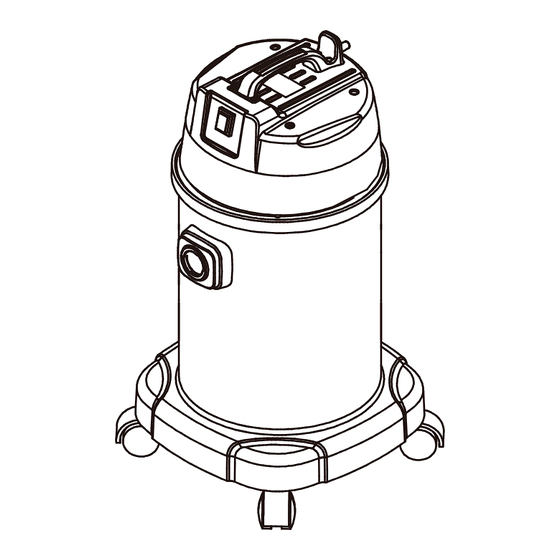

VACUUM CLEANER USER MANUAL ZD10 Series Wet&Dry Dual-Use Vacuum Cleaner... -
Page 2: Table Of Contents
Warranty information..................8 Special Notice for Buoy and Maintenance...........9 Circuit diagram: KND2-12/2 12(10)A 250V-T85/55 220-240V~50Hz 1200W AC 220-240V 50Hz PLUG 0.22μF Technical Parameter: Specification model: ZD10 Series Voltage Rating: 220-240V Rated Frequency: 50Hz Rated Input Power: 1200W Maximum Suction: 18kpa... -
Page 3: Names Of Parts
Names of parts Hand lever Airregister block Tube Double link pipe Handle Switch Top covev Scrubbing floor bruch The main suction pipe Power cord Container Universal wheel ASSY accessory Flat suction nozzle Long link pipe Tube Brush Eibulous floor brush Filter bag... -
Page 4: Important Safety Precautions
Important safety precautions 1.) To avoid fire accident, please 2.) To avoid danger of electric shock, do not use the appliance near turn off the power before inserting inflammable and explosive liquids the mains plug into/removing the and gases. mains plug from the wall socket. 3.) Do not touch the plug with wet hands. - Page 5 Important safety precautions Do not use the appliance to vacuum ashes, Please pay attention that fine sand, lime, cement dust and similar static electricity may substances, the pores of the paper dust appear in the tube and bag will become clogged and cause machine body during damage to machine.
-
Page 6: Connecting The Parts
Connecting the parts A.) Connecting the tube with the machine 1.) Connecting: Insert the tube into the opening. Turn the tube clockwise until it’s locked 2.) Disconnecting: Hold the tube, turn it anticlockwise to unlock and then pull it out B.) Connecting hand lever with the long link pipe 1.) Connecting: insert the one end of the hand Lever into the long link pipe;... -
Page 7: How To Use
How to use: 1. Power on 2. Wind flow adjustment 1.) Insert the plug into the socket Vacuum strength will decrease 2.) Turn on the switch. when the air register is open; it will increase when the register is closed 3. -
Page 8: Other Safety Precautions
Other Safety Precautions 1. Please connect to 220-240V~, 50Hz socket only 2. When the power supply cord is damaged, it has to be replaced by the manufacturer/service agent/qualified person. 3. Keep the machine away from children or persons with physical, sensory or mental disabilities;... -
Page 9: Warranty Information
Warranty Information Manufacturer provides warranty in accordance with legislation of the customer’ own country of residence, with 1 year starting from the date of purchase. This warranty only covers defects in material and workmanship, it doesn’t include the following: -Normal wearing of the product -Improper use such as overloading the product/use of non-approved accessories -Improper use due to without reading the user manual;... -
Page 10: Special Notice For Buoy And Maintenance
Special Notice for Buoy (safety valve) 1. The buoy will be activated when the dust container is filled with water. Vacuum action will stop and you will hear unusual noise due to high-speed operation of the machine. Please turn off the power immediately, pour out the water and install the container back to the machine.
