Optec SwifTerm Installation & Assembly Instructions

•
General: This installation & assembly instructions describe the procedure for Optec SwifTerm™ SC connector which applies for
bow-type drop fiber cable termination.
•
Precautions: Always wear eye protection when handling optical fibers. Dispose of cut or cleaved fibers properly to avoid skin or eyes dama ges.
•
Never look into the connector end which may have a laser coupled to it. Laser light is not visible & may damage your eyes.
•
The product is sensitive to dirt or dust. Unpack the product until ready for installation.

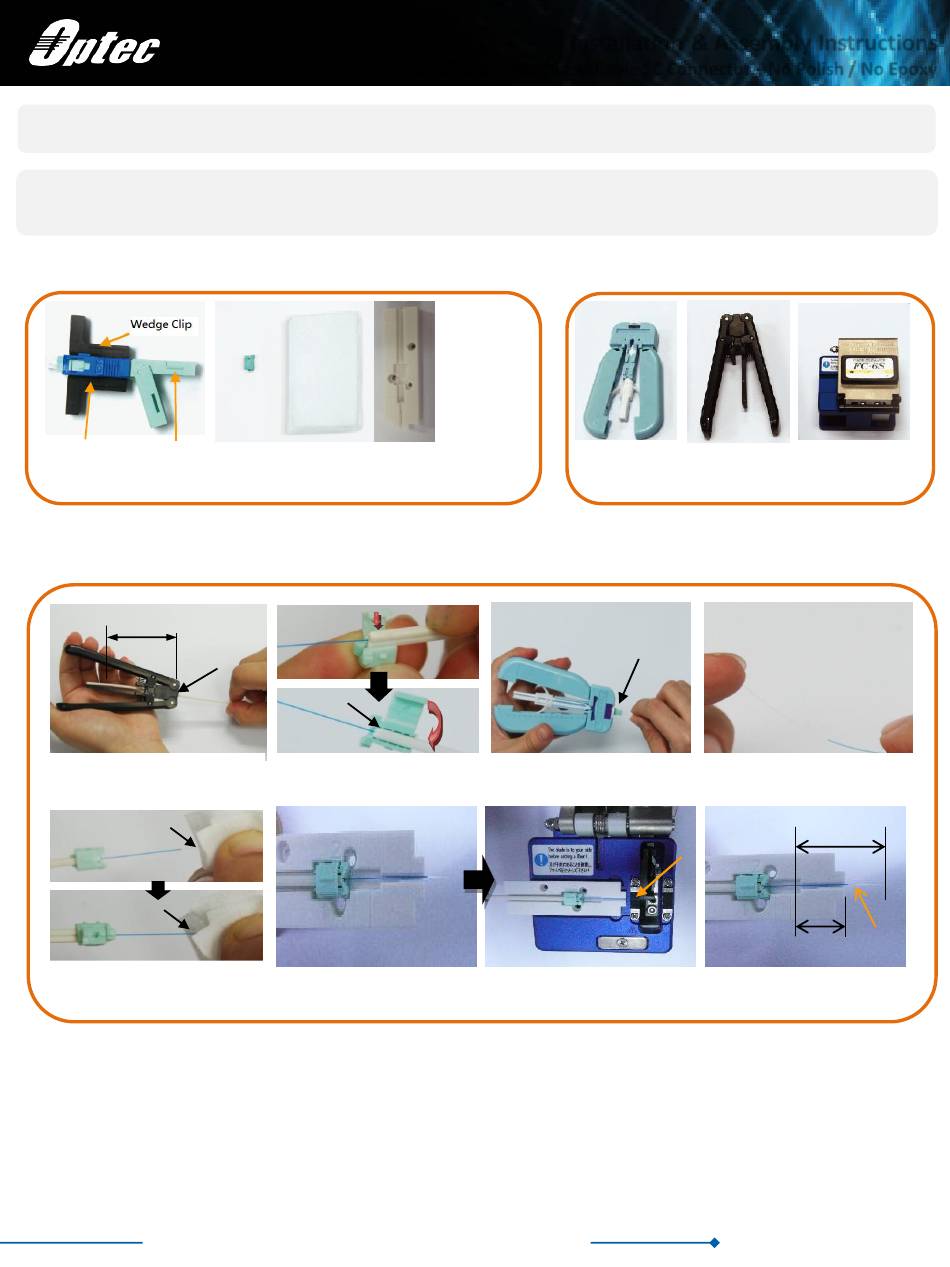

1.0 Components & Tools Required
Connector Cable Lock
Body
Components of Connector Kit Set

2.0 Fiber Cable Preparation

50~60mm
① Remove around 60mm of cable
jacket.
Clean once with
straight movement
Clean again
with rotate 90◦
⑤ Clean the stripped fiber with alcohol
wipe to remove any debris.
The information and specification in this document are subjected to change without notice.
© 2017 Optec Technology Ltd. All rights reserved.
Cable Cleaning Positioning
Clamp Cloth
*(20 sets for 1)
Ensure the cable
is locked tightly
into the slot
② Press the cable into cable clamp
tightly, lock the cable clamp to
tighten cable in place.
Cable
insert
⑥ Insert the cable clamp into the
positioning gasket and ensure it is
secured in place.
Installation & Assembly Instructions
SwifTerm™ Field Installable SC Connector – No Polish / No Epoxy
Please refer to below
fiber cleaver model
for lock screwing
position:
"1" -
SUMITOMO FC-6S
"2" -
FUJIKURA CT-30
"3" -
FUJIKURA CT-20
Gasket
③ Place the cable clamp in position &
strip 250um primary coating off.
⑦ Set the positioning gasket onto
cleaver such that 250um fiber's edge is
at 10mm and cleave.
Micro-stripper Cable Jacket
Stripper
Assembly Tools Required
Position of
cable clamp
Strip from the end
④ Check & bend the fiber in multi-
directions.
Place it flat,
cleave from
the end
⑧ Cleaved fiber length should be
around 10mm.
Fiber Cleaver
29.4±0.1
Cleaved
19.4
fiber around
10mm
Doc No: MKD-B001-17
Page 1 of 2
