www.icmcorp.net
CABLE SERIES: RGB
TOOL: CPLCCT-SLM
TIP: SILVER OR GOLD
STRIPPER: PS59/6/RGB
1) A. Bef ore prepping the cable, cut the cable at a right angle to the jacket.

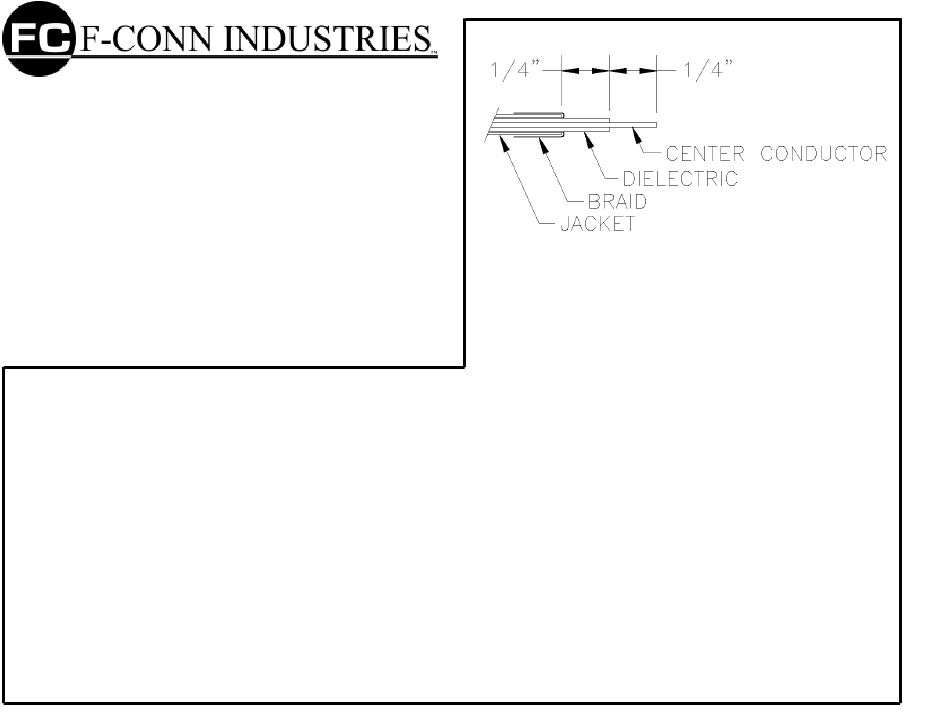

B. Expose 1/4" center conductor and 1/4" dielectric as shown in Figure 1.
Use Strip Tool PS59/6/RGB or —-
For the 1 RGB (orange connector) strip the center conductor to 18 AWG and the
dielectric to 14 AWG using a wire stripping tool.
For the 1.5 RGB (purple connector) strip the center conductor to 14 AWG and the
dielectric to 10 AWG using a wire stripping tool.
F-CONN RCA FOR RGB
FIGURE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for ICM Controls CPLCCT-SLM
- Page 1 CABLE SERIES: RGB TOOL: CPLCCT-SLM FIGURE 1 TIP: SILVER OR GOLD STRIPPER: PS59/6/RGB F-CONN RCA FOR RGB 1) A. Bef ore prepping the cable, cut the cable at a right angle to the jacket. B. Expose 1/4” center conductor and 1/4” dielectric as shown in Figure 1.
- Page 2 2) Insert the plastic guide onto the center conductor as shown 3) Insert the sleev e ov er the plastic guide until it FIGURE 2 cov ers the braid that was f olded over during initial preparation as shown in figure 3. 4) Holding the cable with FIGURE 3 sleev e &...
- Page 3 5) Insert the assembled cable with sleev e into the connector housing as shown in f igure 5. FIGURE 5 6) Crimp the connector as shown in f igure 6. FIGURE 6...
- Page 4 7) Install the color ring onto the connector CPLCCT-SLM Tool Instructi ons as shown in f igure 7. Insert the appropriate tip into the BNC spring clip before ins erting the RCA connector. Ins ert the ti p so that the slot opening faces up. The tip c an be stored on the bottom of the tool by screwing it in place on the underside of the body.
