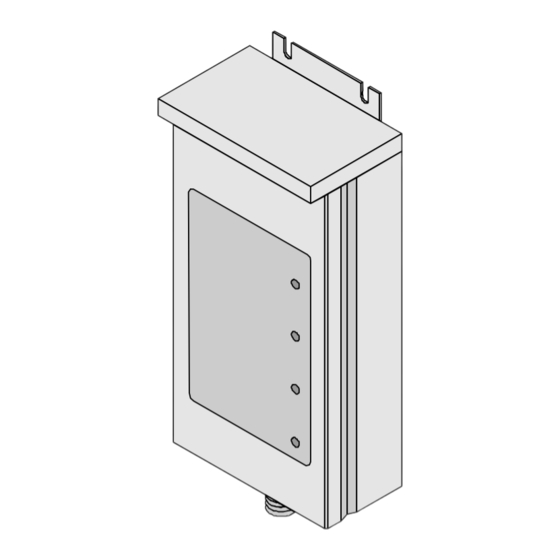

Summary of Contents for Cutler-Hammer CLIPPER VL
- Page 1 CLIPPER VL INSTALLATION & OPERATING MANUAL Cutler-Hammer - The Industry Leader in Power Protection TD.37B.05.T.E. - 1 - IM-PX1-00009-1 04.00 Rev. H...
- Page 2 (rigid or flexible) between the SPD and the electrical equipment. For NEMA 3R applications use watertight conduit and glands, and ensure the Clipper VL is mounted with the nipple pointing in the 3.0 Installation Procedures downward direction and the driphood in the upright direction.
- Page 3 COMMON BLUE/WHITE L2 (B) NORMALLY OPEN RED/WHITE L3 (C) BLUE NORMALLY CLOSED ORANGE/WHITE NEUTRAL WHITE GROUND/PE GREEN/YELLOW Normal condition is powered with no faults Cutler-Hammer - The Industry Leader in Power Protection TD.37B.05.T.E. - 3 - IM-PX1-00009-1 04.00 Rev. H...
- Page 4 SPD. warranty. The Clipper VL is also provided with a green status This warranty does not apply if the unit has been misused, indicator lamp, that monitors individual MOVs. If a fault is...
